2OM-1751 2-57 (G02) Offset When the [Offset] button is pressed in the "Placement" window, the following tab sheet appears. F2B46 (G02_01) Unit Control Select one of the following options to determine whether th…
2OM-1751
2-56
(G01_01)
Un
Select one of the following tabs (placement data groups) in one pattern
program.
U01
: First Placement Data Group
U02
: Second Placement Data Group
↓
Un
: Up to 99 placement data groups can be specied.
U02
U01
Placement Coordinate
Reference
Fiducial Marks
F2B45
Note
(a) Use "U01" in normal cases.
(b) The operation and feeder location data are used commonly.
1303-001
3.7 Placement
2OM-1751
2-57
(G02) Offset
When the [Offset] button is pressed in the "Placement" window, the
following tab sheet appears.
F2B46
(G02_01)
Unit Control
Select one of the following options to determine whether the selected
placement data should be used.
In normal cases, select "Placement".
Placement
: The placement data of the selected unit (group) becomes valid.
Bypass
: The placement data of the selected unit (group) becomes
invalid.
1303-001
3.7 Placement
Graphic
Development
2OM-1751
2-581303-001
3.7 Placement
(G02_02)
Offset
Offset X [mm] and Offset Y [mm]
Set the offset values for all placement coordinate X and Y in the placement
data (P-data) and the image and local PEC recognition coordinates.
Note
(a) Use "+00.00" (zero) in normal cases.
(b) Note that these offsets are not reected on "X [mm]" and "Y [mm]" in
"A02_04 Fiducial mark".
Offset Z [deg]
Set the offset value for all placement angles (Z=Theta) in the placement data
(P-data).
Note
Use "0.00" in normal cases.
Offset H [mm]
Set the offset value for all placement height "H" in the placement data
(P-data).
Note
In normal cases, set "+0.000" in this text box.

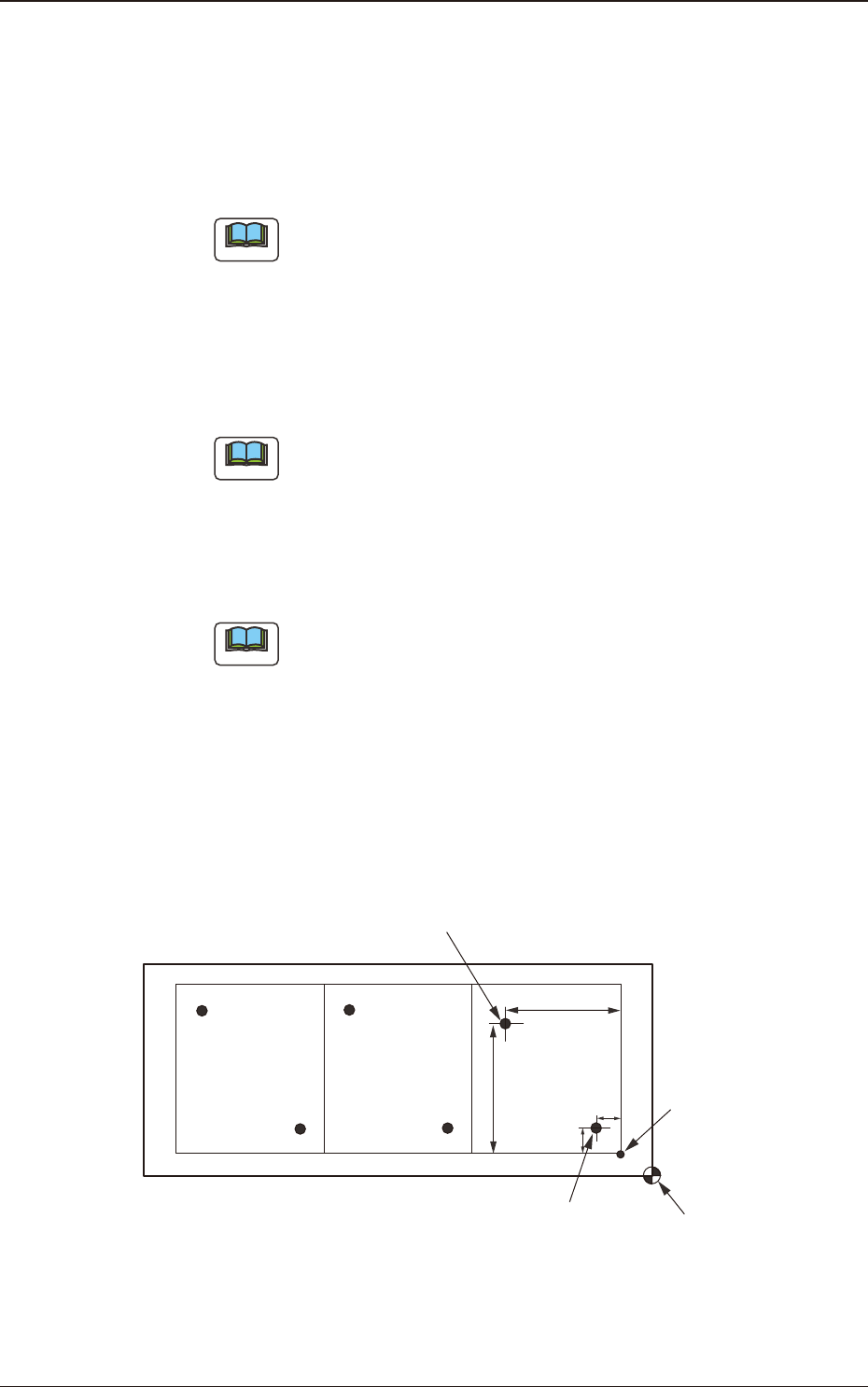

(G02_03)
Unit PCB Fiducial
Select one of the following options to determine whether or not the unit PCB
BBR function should be used.
Disable
: The unit PCB BBR function is not used.
Enable
: The unit PCB BBR function (2-point recognition) is used.
Y
1
X
2
Y
2
X
1
Second Fiducial Mark
Pattern Origin
First Fiducial Mark
Placement Coordinate
Reference
F2B47
