2OM-1751
2-67
(G04_04)
H [mm]
The height for each individual patterns (unit PCBs) can be corrected.
Note
When a parameter is set as "H" data in the last line (last step No.), it
becomes invalid because "E" is set in the "C (Control Command)" text
box.
(G04_05)
C
Enter some of the following control commands.
Note
If a control command other than the following ones is used, the step
becomes invalid.
- (hyphen)
: This command handles the steps as those for component
placement.
S
: This command invalidates the steps specied as those for
component placement.
C
: This command invalidates the steps specied as those for
component placement.
Note
As for dispensers, these steps become valid.
D
: This command handles the steps as those for component
placement.
Note
As for dispensers, these steps become invalid.
E
: When placement data (O) is not created, this shows the end of
the steps in the placement data (P).
Note
Conrm that "0" (zero) is set in the "X [mm]", "Y [mm]", and "Z=theta
[deg]" text boxes of the last line (last step No.) and set "E".
(G04_06)
Comment
Set a comment for each step No. Alphanumeric characters and symbols can
be used. Up to 32 characters (alphanumerics and marks) can be used.
Note
The automatic operation is not affected by these comments.
1303-001
3.7 Placement
2OM-1751
2-68
(G04_07)
B-X, B-Y [mm]

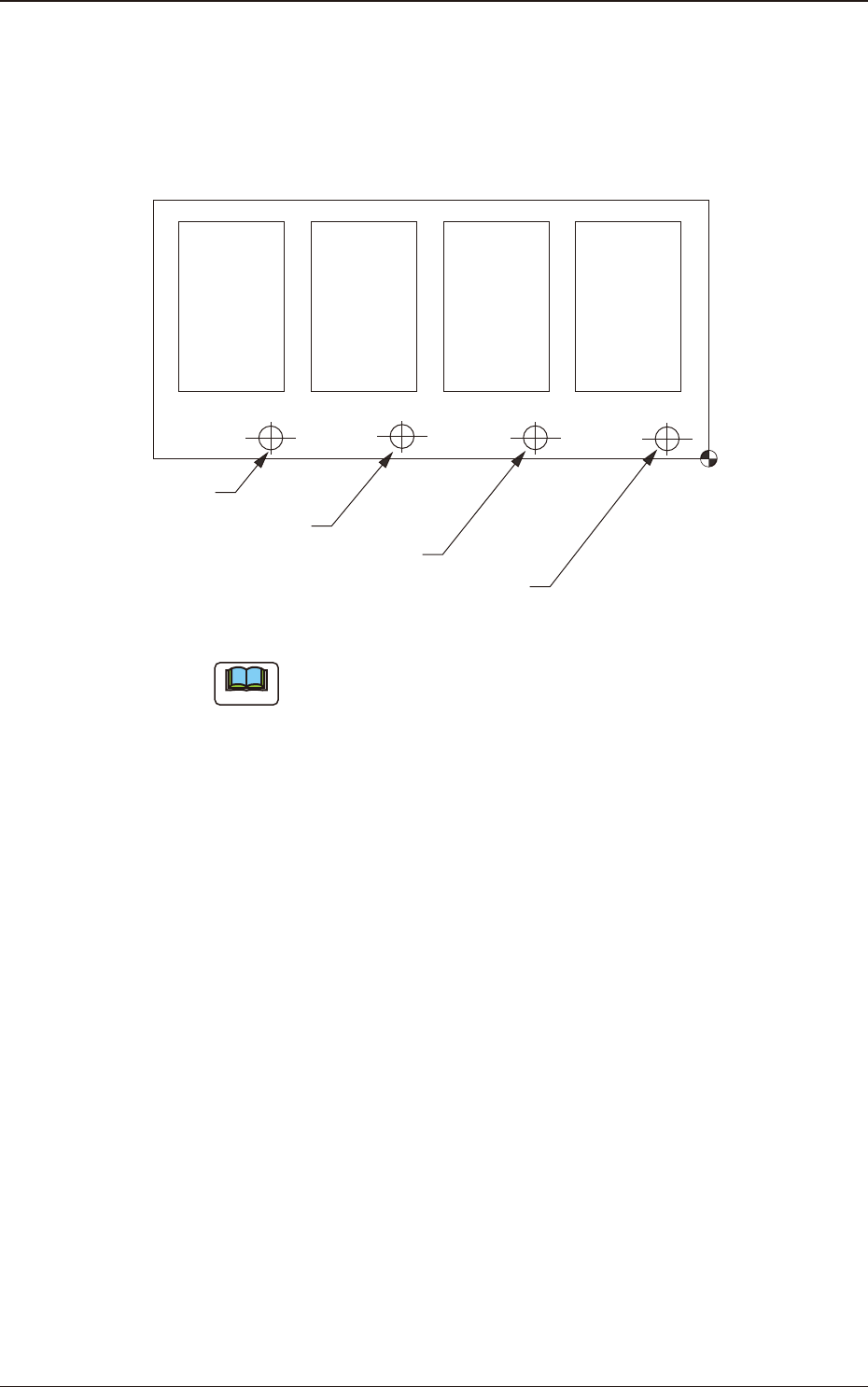

When "Optional" is set in the "Unit PCB" text box, it is required to set the
coordinates of each unit PCB mark (each bad mark) based on the placement
coordinate reference No. Unit: mm
Pattern 4 Pattern 3 Pattern 2 Pattern 1
(B-X
4, B-Y4) (B-X3, B-Y3) (B-X2, B-Y2) (B-X1, B-Y1)
Bad Mark of Pattern 4
Bad Mark of Pattern 3
Bad Mark of Pattern 2
Bad Mark of Pattern 1
Placement Coordinate
Reference (No.)
F2B57
Note
Do not set any coordinates in the text boxes of the last line (last step No.).
Keep them as "000.00".
1303-001
3.7 Placement
2OM-1751
2-69
3.8 HDLG/PL
F2B58
Note
The "HDLG/PL" data is created automatically by means of the optimization
processing.
1303-001
3.8 HDLG/PL
Graphic
Development
