1. Selection of Component IDs
When the component library data is to be edited, select the component ID to be
edited and edit it in the "Component Library" window.
Reference
Refer to "Vol.6 : Component Library" for the description of component library
data and data creation procedure.
1.1 List of Component IDs

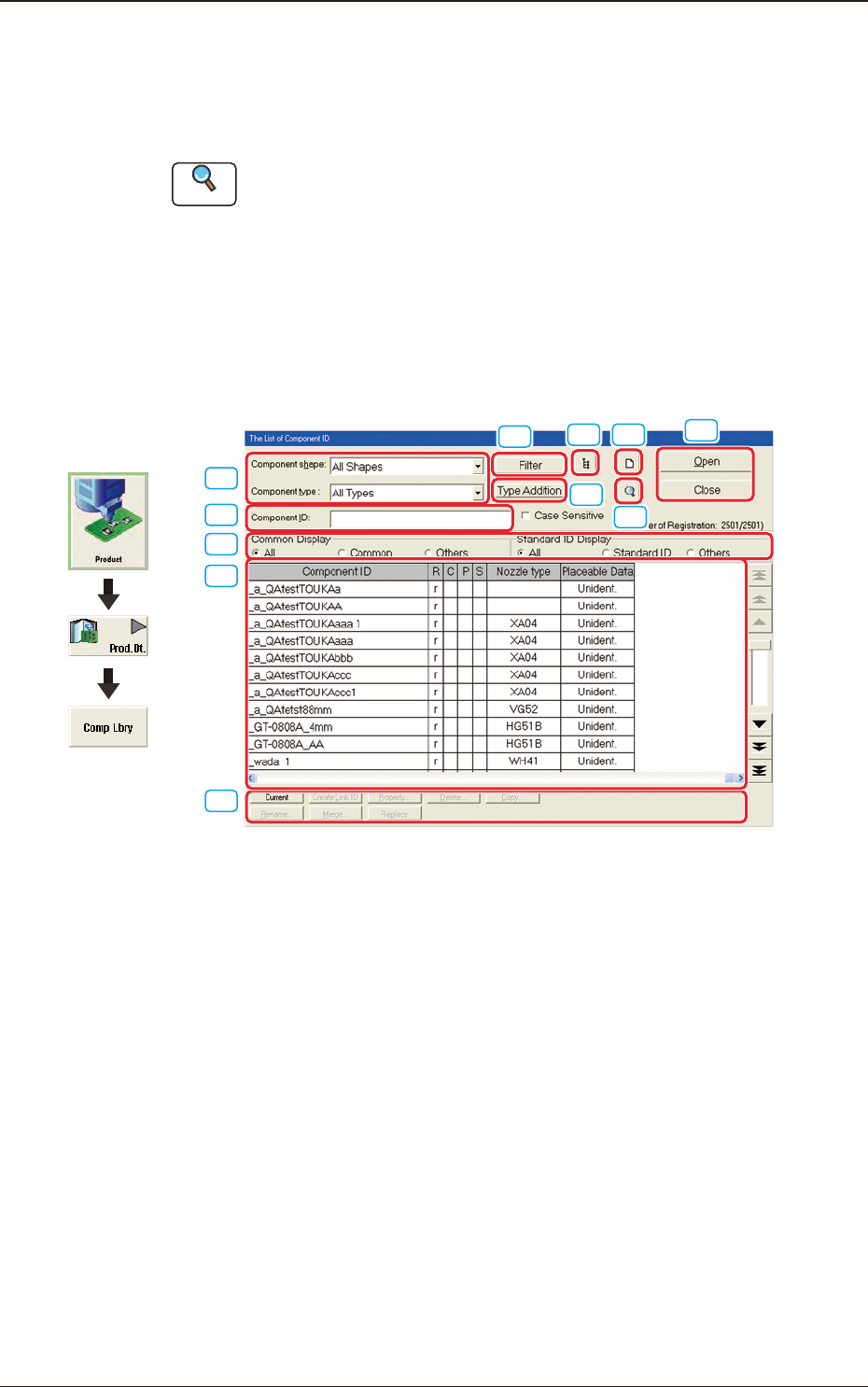

In this window, the component library data list is displayed.
When the component library data is to be edited, select the component ID to be
edited and edit it in the "Component Library" window.
[10]
[3]
[4]
[1]
[5]
[6] [7]
[8]
[9]
[2]
[11]
F2C1
[1] Component ID
Displayed is the component ID selected in "[1] "List of Component IDs"
Pane".
[2] Component Shape and Type
Select the desired component shape and type. The component IDs based on
the selected shape and type are displayed in "[1] "List of Component IDs"
Pane".
Graphic
Development
1303-001
1. Selection of Component IDs
2OM-1751
3-2
[3] "List of Component IDs" Pane
A list of component IDs is displayed.
Select the component ID whose data should be displayed in the "Component
Library" edit window or the component ID to be deleted, copied, or renamed.
Component ID
: Component IDs are displayed.
R
: When "r" is set, it indicates that the component ID is a
root one.
A root ID is an original component ID for linking,
copying, etc.
C
: When "c" is set, it indicates that the component ID is
registered as a common one.
P
: When "p" is set, it indicates that the component ID is
protected.
S
: When "s" is set, it indicates that the component ID is a
standard one.
Component shape
: Component shapes are displayed.
Component type
: Component types are displayed.
Update time
: Update time (date and time) is displayed
Nozzle Type
: Nozzle types are displayed.
Placeable Data
: Placement Available/Unavailable history in the
SIGMA-G5S, is displayed in this data box.
Note
By pressing one of the titles (the labels arranged on top of the list), the
step lines (parameters) are sorted by ID, update time, etc., and reorganized,
depending on which title is selected.
[4] "Common Display" and "Standard ID Display" Group Boxes
Select the desired option buttons. Depending on which option buttons are
selected, a list of component IDs having specic attributes appears in "[1]".
[5] [Filter] Button
When pressed, this button opens the "Filter" window, enabling you to select
a component shape, a component type, a common display, and a standard ID
display for ltering.
[6] [Link ID Tree Display] Button
When pressed, this button displays the link and root IDs that are arranged
side by side in the hierarchical (tree) le system.
[7] [New] Button
When pressed, this button opens a new "Component Library" edit window
with default values.
1303-001
1.1 List of Component IDs
2OM-1751
3-3
[8] [Open] and [Close] Buttons
[Open] Button
When pressed, this button opens the "Component Library" edit window that
corresponds to the selected component ID.
[Close] Button
When pressed, this button closes the "Selection of component ID" window.
[9] [Type Addition] Button
When pressed, the "Type Addition" dialog box opens, enabling the operator
to add a component type.
Reference
Refer to "1.2.1 Type Addition" for the "Type Addition" dialog box.
[10] Various Operation Buttons
[Current] Button
When pressed, this button displays the component IDs used in the last pattern
program (the last selected program) in "[1] "List of Component IDs" Pane".
[Property...] Button
When pressed, this button opens the "Property" window that corresponds to
the selected component ID.
Reference
Refer to "1.2.7 Property of Component ID" for the details of the "Property"
window.
[Delete...] Button
When pressed, this button deletes the selected component ID.
[Copy...] Button
When pressed, this button opens the "Copy Component ID" window,
enabling you to make a copy of the selected component ID.
[Rename...] Button
When pressed, this button opens the "Rename" window, enabling you to
change the ID (name) of the selected component.
[Create Link ID] Button
When pressed, this button opens the "Create Link ID" window, enabling you
to create a link ID for the selected component ID.
[Replace] Button
When the alternative component with the same name is selected, this button
is enabled. The data for the original component ID is replaced by this data.
1303-001
