1.2.7 Property of Component ID
Procedure
(1) Select the component ID to view its property.
(2) Press the [Property...] button.
(The "Property" dialog box.)
[1]
[2]
[3]
[4] [5] [6]

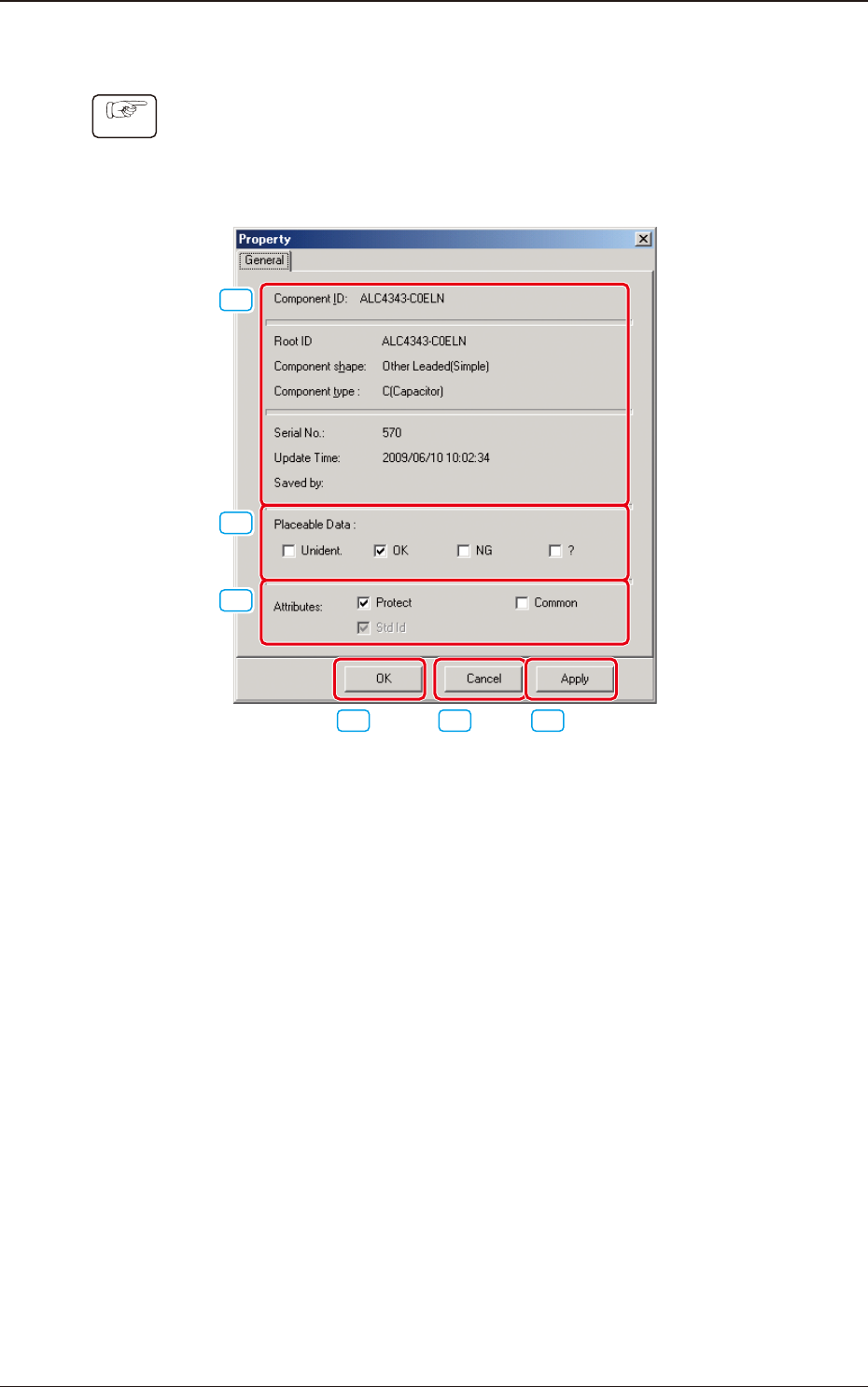

F2C12
[1] "Component ID", "Root ID", "Component shape", "Component type",
"Serial No.", "Update Time", and "Saved by"
Displayed is the property of the selected component ID.
[2] Placeable Data (Unident., OK, NG, ?)
It can be displayed as log data to be checked if the machine (SIGMA-G4/G5)
can place this component or not.The check boxes can be used to change the
function.
1.2 Basic Operations in "Selection of component ID" Window
2OM-1751
3-121303-001
[3] Attributes (Protect, Common, Std Id)
Displayed are the attributes of the selected component ID.The check boxes
enable the operator to change the corresponding attributes.
"Protect"
When this check box is ticked, the component ID is specied as "Protected".
When a component ID is protected, the data cannot be edited.
"Common"
When this check box is ticked, the component ID is specied as "Common" (to
be registered as a common component).
Note
The [Common] button in a "Component Library" edit window also makes
it possible to set the selected component as one to be registered as a
common component. Refer to "1.3 Component Library Edit" window for
details.
[4] [OK] Button
When this button is pressed, the changed attributes are applied if any and the
"Property" sheet closes.
[5] [Cancel] Button
The changed attributes are not applied and the "Property" sheet closes.
[6] [Apply] Button
The changed attributes are applied.
1.2 Basic Operations in "Selection of component ID" Window
2OM-1751
3-131303-001
1.3 Editing of Component Library Data
1.3.1 "Component Library" Edit Window
Select the desired component ID in the "Selection of component ID" window and
press the [Open] button.
The "Component Library Edit" window opens.
"Component Library" Edit Window F2C13
Note
(a) When the "New" icon is pressed, a new window opens. Default parameters
are set in the new window.
(b) The displayed contents change according to the selected component shape.
"Component Library" Edit Window (New Data Creation) F2C14
Edit the component library data in each tab sheet.
Reference
Refer to "Component Library (Vol.6)" for the description of the component
library data items.
1.3 Editing of Component Library Data
