2OM-1751 3-13 1303-001 1.3 Editing of Component Library Data 1.3.1 "Component Library" Edit Window Select the desired component ID in the "Selection of component ID" window and press the [Open] button…

2OM-1751

3-121303-001

[3] Attributes (Protect, Common, Std Id)

Displayed are the attributes of the selected component ID.The check boxes

enable the operator to change the corresponding attributes.

"Protect"

When this check box is ticked, the component ID is specied as "Protected".

When a component ID is protected, the data cannot be edited.

"Common"

When this check box is ticked, the component ID is specied as "Common" (to

be registered as a common component).

Note

The [Common] button in a "Component Library" edit window also makes

it possible to set the selected component as one to be registered as a

common component. Refer to "1.3 Component Library Edit" window for

details.

[4] [OK] Button

When this button is pressed, the changed attributes are applied if any and the

"Property" sheet closes.

[5] [Cancel] Button

The changed attributes are not applied and the "Property" sheet closes.

[6] [Apply] Button

The changed attributes are applied.

1.2 Basic Operations in "Selection of component ID" Window

2OM-1751

3-131303-001

1.3 Editing of Component Library Data

1.3.1 "Component Library" Edit Window

Select the desired component ID in the "Selection of component ID" window and

press the [Open] button.

The "Component Library Edit" window opens.

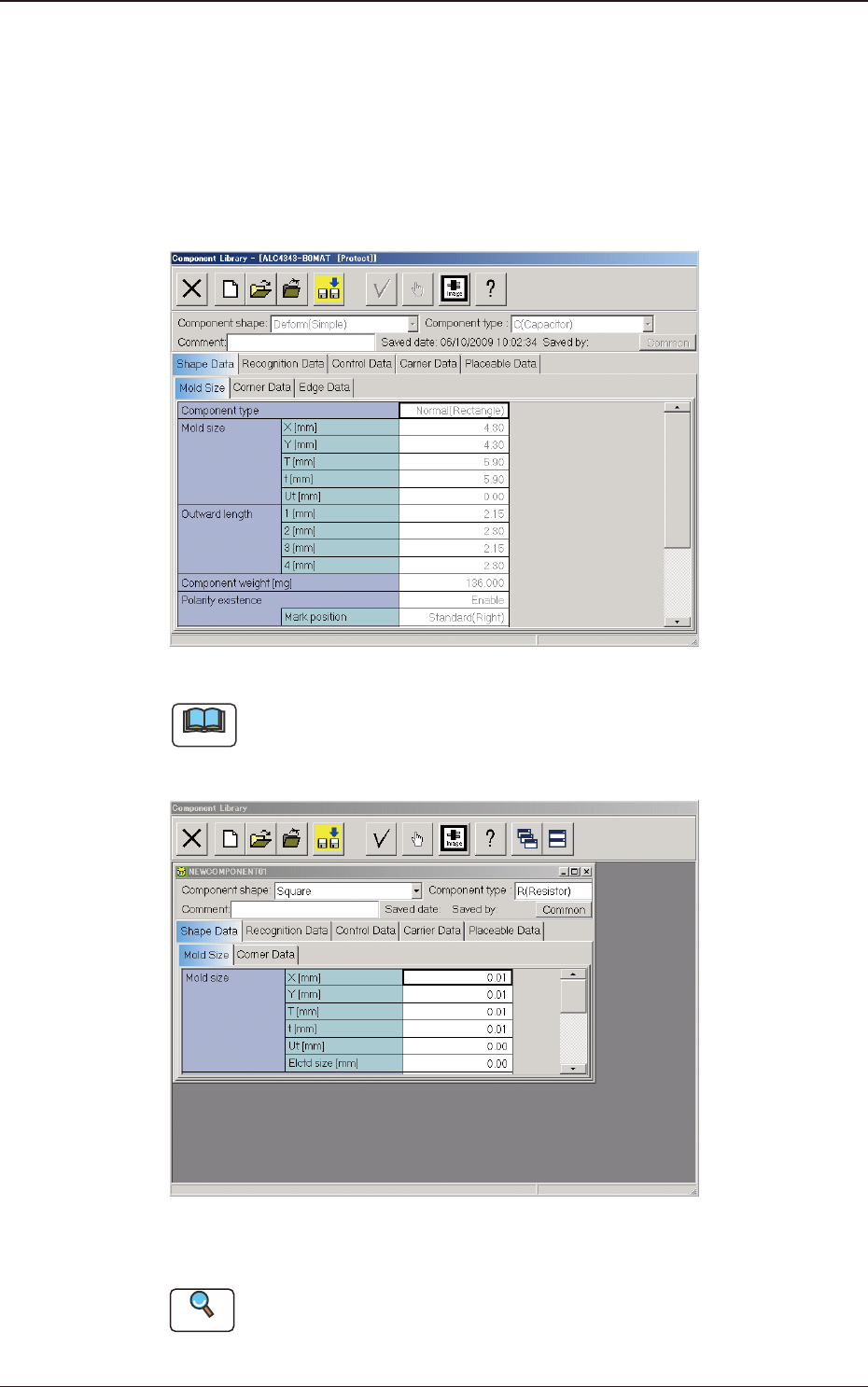

"Component Library" Edit Window F2C13

Note

(a) When the "New" icon is pressed, a new window opens. Default parameters

are set in the new window.

(b) The displayed contents change according to the selected component shape.

"Component Library" Edit Window (New Data Creation) F2C14

Edit the component library data in each tab sheet.

Reference

Refer to "Component Library (Vol.6)" for the description of the component

library data items.

1.3 Editing of Component Library Data

2OM-1751

3-141303-001

1.3 Editing of Component Library Data

Note

The standard component library data prepared by us cannot be edited. Before

editing the data in a le, give another name to the le and save it, using the

(

) icon.
