1.3.2 Saving of Component IDs

The following describes how to save a newly created le (component ID) or the

edited parameters of the component ID.

Procedure

(1) Press the [Save] or the [Save As] icon on the toolbar.

: Saving active le

When pressed, this saves the edited component ID (le), replacing the

original component ID (le) with the current one.

: Save As

When pressed, this saves a newly created le (data of a new

component ID) or the edited le with another name (component ID).

(2) Press the [Saving active le] icon.

(The active component library data is saved with the current component ID

name, replacing the original program with the active one).

(3) Press the [Save As] icon.

(The following "Save Component Data" window will be displayed).

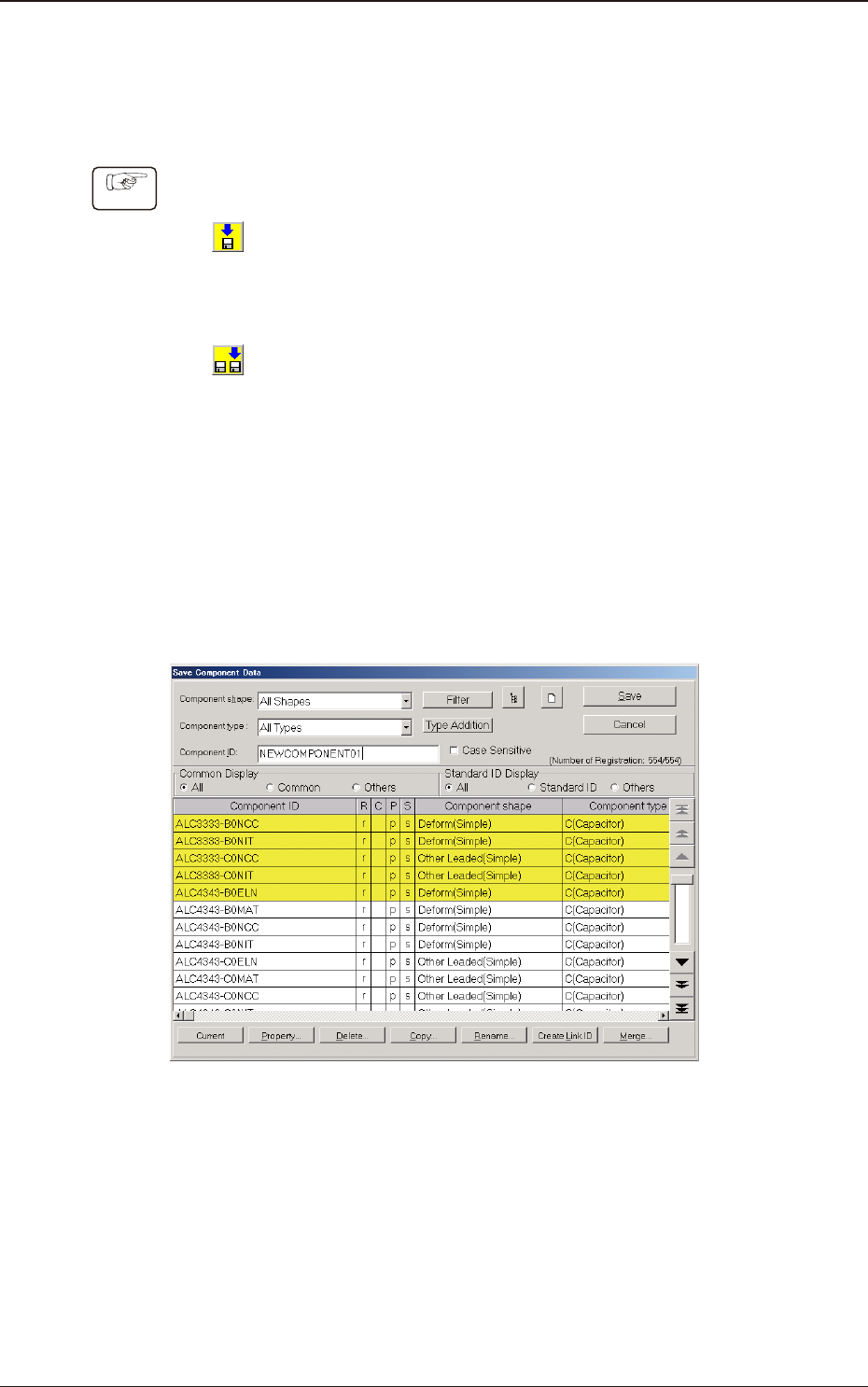

"Save Component Data" Window F2C15

1.3 Editing of Component Library Data

2OM-1751

3-161303-001

(4) Enter a new component ID name as a le name and press [Save] button in

the "Save Component Data" window.

(The data in the active edit window is saved as a le with the entered

component ID name. )

Note

Double-clicking the "Component ID:" text box opens the "Component ID

Input" window.

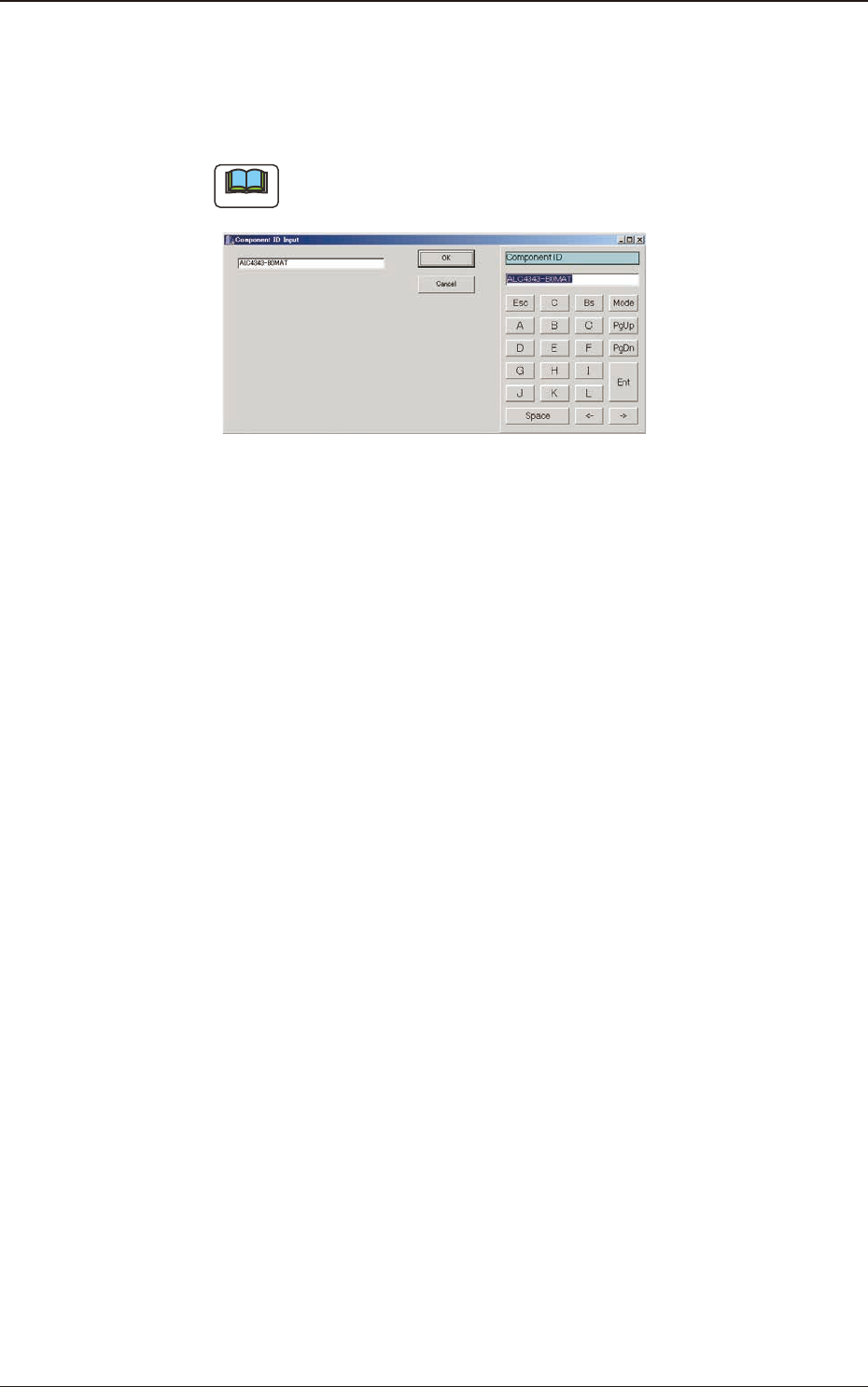

"Component ID Input" Window F2C16

A component ID can be entered with the touch keypad.

1.3 Editing of Component Library Data

2OM-1751

3-17

2. "Temp Chng Comp Lib" Window

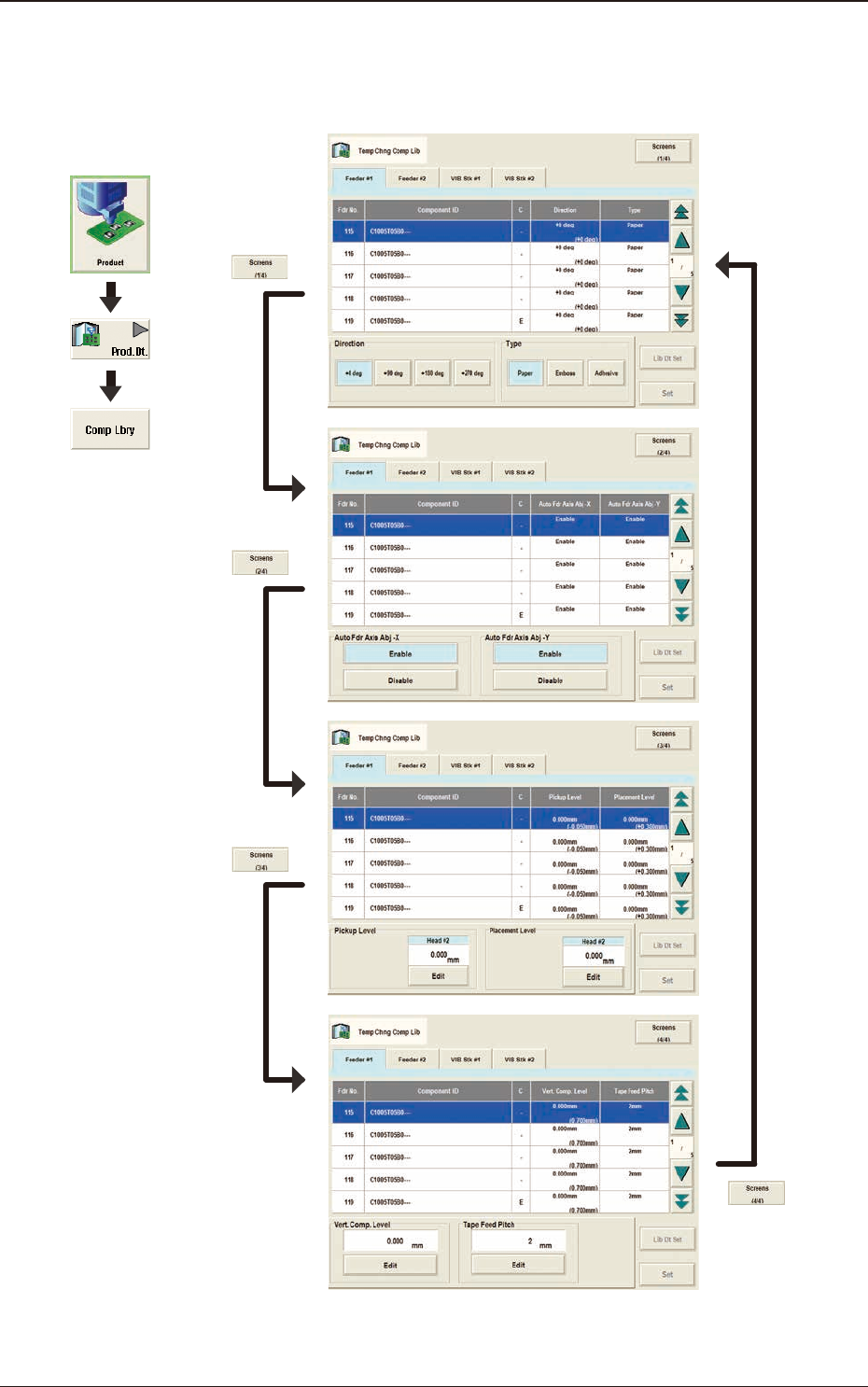

In these tab sheets, the component library parameters are changed temporarily.

F2C17

1303-001

Graphic

Development

2. "Temp Chng Comp Lib" Window
