Chapter 4
Management Data
This chapter describes the display contents and operation procedures for
the Management Data, Current Pattern Program Management, Feeder/
Nozzle Message Rate and Component Handling Rate Data, etc.
1. Outline of Management Data
2. "MNG.DT." Window
3. "CRNT.PP.MNG.DT" Window
4. "MESSAGE.RATE.DT" Window
2OM-1751
1303-001 4-B
2OM-1751
4-11303-001
1. Outline of Management Data
F2D1

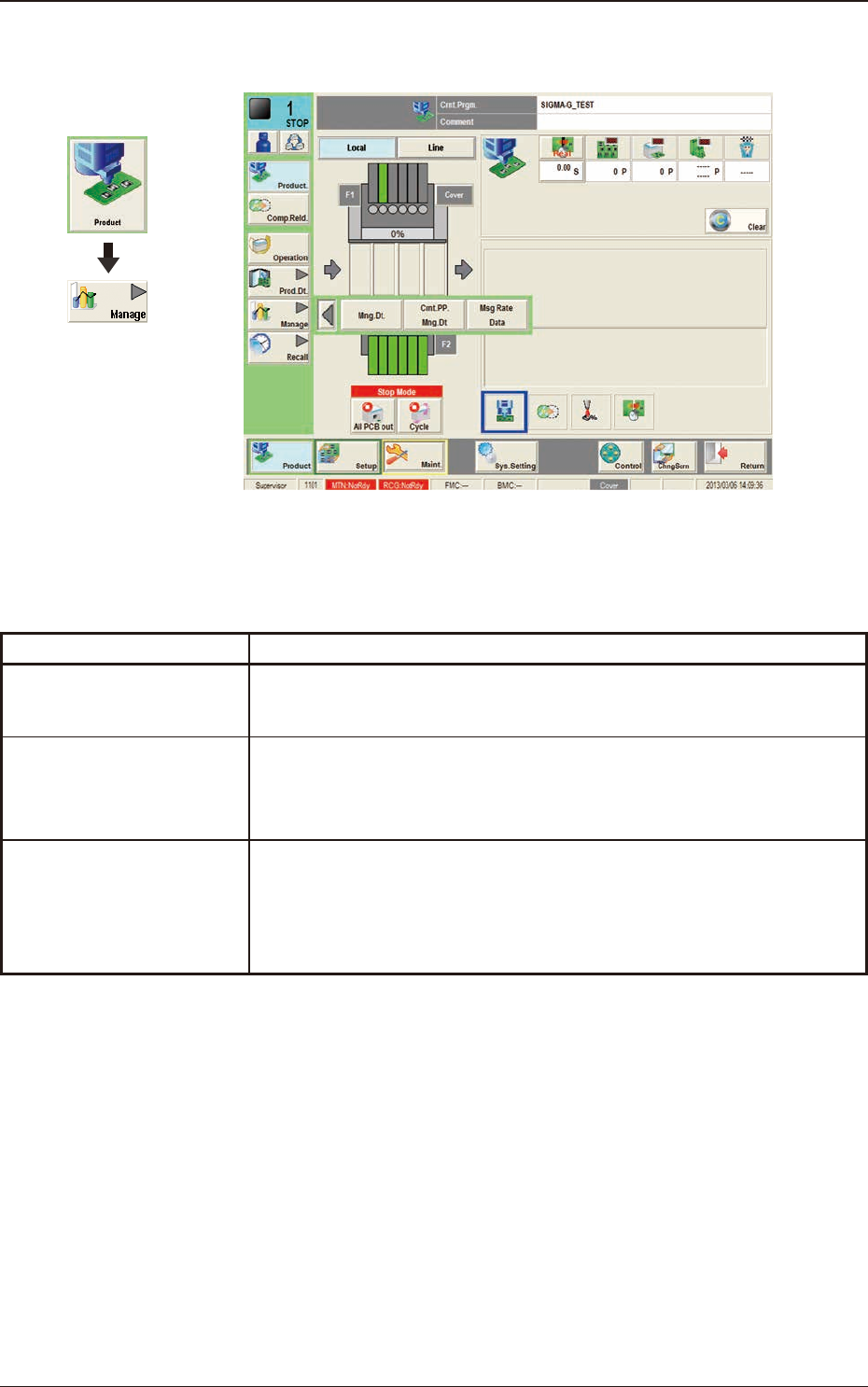

The "Manage" menu is provided with the following three buttons.
When a button is pressed, the corresponding window opens.
Buttons Description
Mng.Dt.
When pressed, the "MNG.DT." window is displayed and operated for
totaling the management data for the whole system.
Cmt.PP.Mng.Dt
When pressed, the "CRNT.PP.MNG.DT" window is displayed and
operated for totaling the current pattern program management data for
each pattern program.
Msg Rate Data
When pressed, the "MESSAGE.RATE.DT." window is displayed and
operation for displaying the component handling error rate managed
for each feeder or nozzle based on each component handling error rate
specied in the operation parameter setting.
