2OM-1751 4-1 1 1303-001 3pt err (% of Total PEC Recog. err) Shown are the total number of errors detected on the third ducial mark and the percentage of the detected errors per total number of all errors detected by the…

2OM-1751

4-10

[15]

"Mach.Prfrm," Tab Sheet (4/5) F2D6

[15]

[16]

[17]

"Mach.Prfrm," Tab Sheet (5/5) F2D7

[15] Zone #1 through #5

1pt err (% of Total PEC Recog. err)

Shown are the total number of errors detected on the rst ducial mark and

the percentage of the detected errors per total number of all errors detected

by the PEC recognition function.

2pt err (% of Total PEC Recog. err)

Shown are the total number of errors detected on the second ducial mark

and the percentage of the detected errors per total number of all errors

detected by the PEC recognition function.

1303-001

2.1 "Mach.Prfrm," Tab Sheet

2OM-1751

4-111303-001

3pt err (% of Total PEC Recog. err)

Shown are the total number of errors detected on the third ducial mark and

the percentage of the detected errors per total number of all errors detected

by the PEC recognition function.

[16] Lcl

d.err (% of Total PEC recog. err)

Shown are the total number of recognition errors in each individual

components and the percentage of the detected errors per total number of all

errors detected by the PEC recognition function.

[17] Total PEC recognition errors

Shown is the total number of errors detected by the PEC recognition

function.

The number of errors detected by the global PEC recognition function and

the total number of errors detected by the BBR recognition function are

displayed

2.1 "Mach.Prfrm," Tab Sheet

2OM-1751

4-121303-001

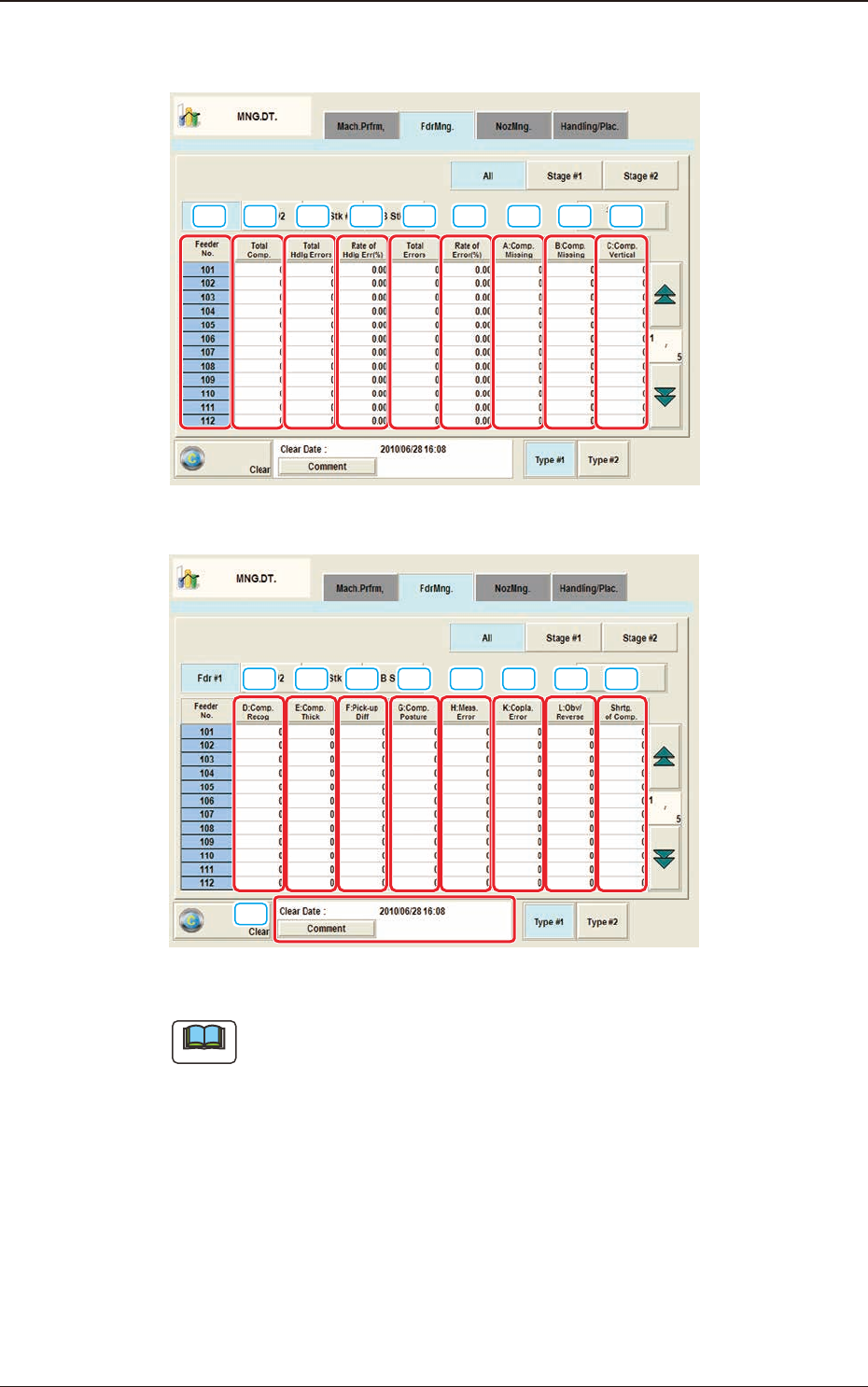

2.2 "FdrMng." Tab Sheet

[1] [2] [3] [4] [5] [6] [7] [8] [9]

"FdrMng." Tab Sheet (1/2) F2D8

[10] [11] [12] [13] [14]

[18]

[15] [16] [17]

"FdrMng." Tab Sheet (2/2) F2D9

Note

(a) The displayed tab sheet will look different, depending on which option is

selected.

(b) Each item box functions as a button and each pressing of the buttons can

list the data parameters in descending order. The top box shows the largest

value for error times. Therefore, it is useful for the analysis to enhance the

operation rate. When the [Feeder No.] button is pressed, the Nos. are re-

arranged in their initial order (Feeder Nos.).

The "FdrMng." tab sheet is divided further into several tabs and each tab sheet

shows the handling errors per feeder on each individual feeder bases.

When each tab is pressed, the corresponding tab sheet appears.

2.2 "FdrMng." Tab Sheet
