Safety Precautions Safe-14 1OM-1751 1303-001 5. Alert Labels 5. Alert Labels The alert labels (described below) are used for this machine. Please read the instructions on each label carefully and check the contents, obse…
Safety Precautions
Safe-13
1OM-1751
Alert Indications described as "
CAUTION
" (continued)
Alert Description Related Items
Residual voltages may remain behind for a few minutes in the
internal devices of the machine after power interception.
Before performing maintenance work, wait until the charge lamps of
the DC power supply and the servo amplier go "OFF" in 10 minutes
or more after the power breaker is set to "OFF".
"1.1" in
"Chapter 1 (Vol. 4)"
After making sure that the air supply has been stopped and the
cutter blades are closed, start maintenance.
During maintenance, do not touch the cutter blade.
"4.6.2" in
"Chapter 1 (Vol. 4)"
1305-002
4. Alert Indications in Instruction Manual
Safety Precautions
Safe-14
1OM-1751
1303-001
5. Alert Labels
5. Alert Labels
The alert labels (described below) are used for this machine.
Please read the instructions on each label carefully and check the contents, observing the
actual object.
Be sure to follow the instructions for safety purposes.
These labels should be kept clean and easily legible at a far safe distance.
When a label has deteriorated and become illegible, contact the marketing department or
sales agency of Yamaha Motor Co., Ltd. for the replacement with a new one.
Safety Precautions
Safe-15
1OM-1751
1305-002
5. Alert Labels
Location of Alert Labels
The alert labels are afxed on dangerous and caution-required areas.
Refer to "Alert Labels and Description" for details.
4
10-0339-
CAUTION
When the feeder base is moved up and down
and your finger is put into the moving section,
you might get injured.
Do not put your hand into the moving section.
Your hand or finger might be crushed.

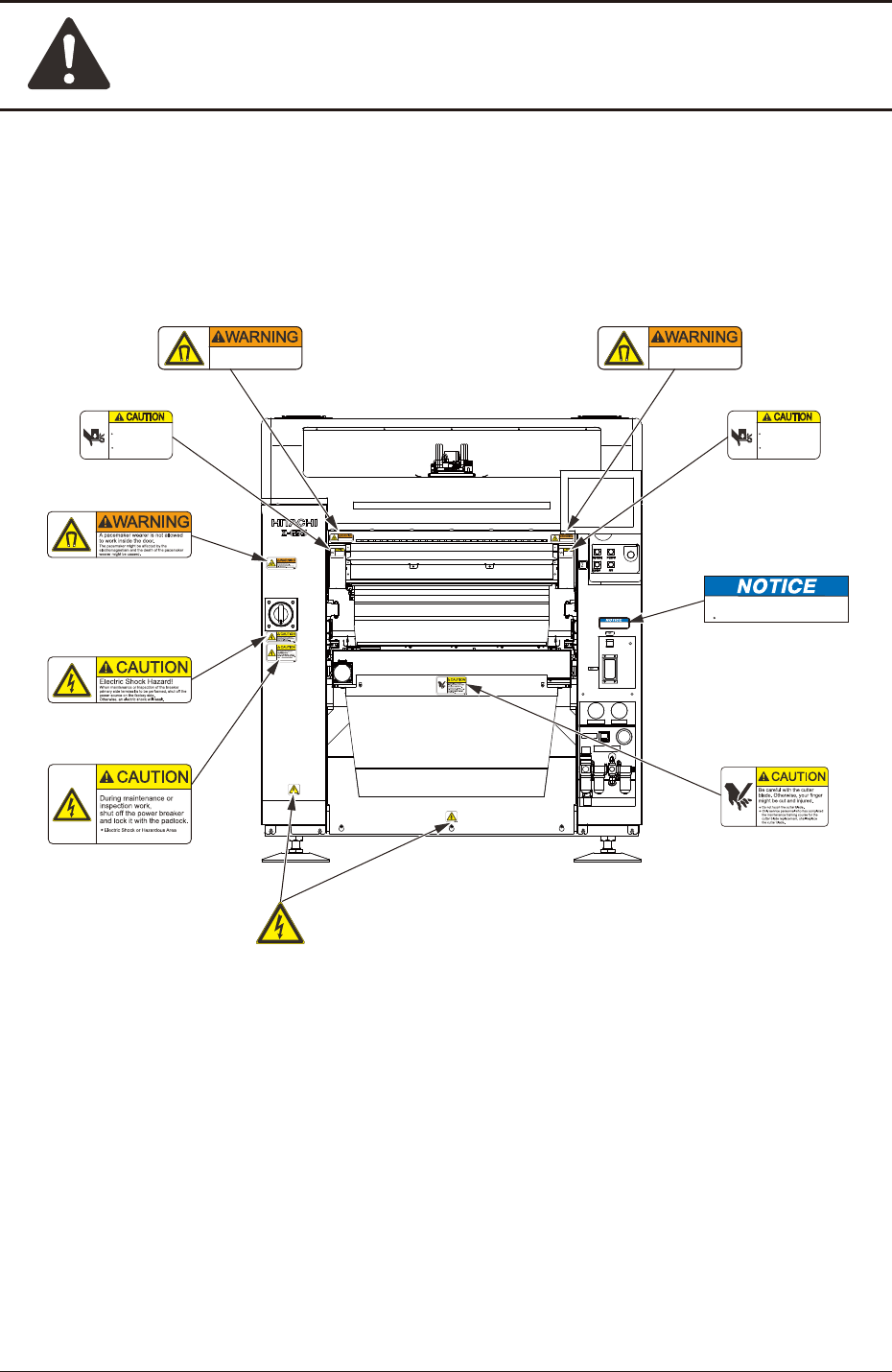

Front View of Machine
(1)
(8)
(3)
(5)
(11)
(2) (2)
(11)
(4)
(17)
A pacemaker wearer is not allowed
to handle the feeders.
The pacemaker might be a ffected by the
electromagnetism and the death of the pacemaker
wearer might be caused.
A pacemaker wearer is not allowed
to handle the feeders.
The pacemaker might be a ffected by the
electromagnetism and the death of the pacemaker
wearer might be caused.
A pacemaker wearer is not allowed
to handle the feeders.
The pacemaker might be affected by the
electromagnetism and the death of the pacemaker
wearer might be caused.
10-0338-
A pacemaker wearer is not allowed
to handle the feeders.
The pacemaker might be affected by the
electromagnetism and the death of the pacemaker
wearer might be caused.
10-0338-
CAUTION
When the feeder base is moved up and down
and your finger is put into the moving section,
you might get injured.
Do not put your hand into the moving section.
Your hand or finger might be crushed.
CAUTION
When the feeder base is moved up and down
and your finger is put into the moving section,
you might get injured.
Do not put your hand into the moving section.
Your hand or finger might be crushed.
10-0339-
CAUTION
When the feeder base is moved up and down
and your finger is put into the moving section,
you might get injured.
Do not put your hand into the moving section.
Your hand or finger might be crushed.
Never disconnect the connector during
the feeder base lifting operation.
Doing so might cause a system malfunction.
10-0333-
Never disconnect the connector during
the feeder base lifting operation.
Doing so might cause a system malfunction.
F1X1
