2OM-1751 4-17 1303-001 [9] C:Comp. V ertical Each text box shows the number of vertical component errors detected by the linear measure detection sensor for each individual nozzles. [10] D:Comp. Recog Each text box shows…
2OM-1751
4-16
Note
(a) The displayed tab sheet will look different, depending on which option is
selected.
(b) When one of the above buttons is pressed, the nozzle No. with the biggest
parameter under the selected button is displayed in the rst line and nozzle
Nos. having the subsequent (second, third, fourth, ...) biggest parameters
follow.
That is, parameters are re-arranged in order of error counts, making it easy
to analyze and improve production rate.
When the [Noz.] button is pressed, the Nos. are re-arranged in their initial
order (Nozzle Nos.).
The "NozMng." tab sheet is divided further into four buttons and each subtab
sheet shows the nozzle management data for each individual head #.
When a button is pressed, the corresponding subtab sheet appears.
[1] Nozzle No.
Shown are the nozzle Nos.
[2] Total Comp
Each text box shows the number of pickup actions for each individual
nozzles.
[3] Total Hdlg Errors
The No. of pick-up error total times is displayed in this data box.
[4] Rate of Hdlg Err (%)
The percentage of the pick-up error total times to the total pick-up times is
displayed in this data box.
[5]
Total Errors
Each text box shows the total number of errors detected in [7] through [17].
[6] Rate of Error (%)
Each text box shows the percentage of the total number of errors per the
number of picked components.
[7] A:Comp. Missing
Each text box shows the number of missing components detected by the
linear measure detection sensor for each individual nozzles.
[8] B:Comp. Missing
Each text box shows the number of missing components detected through
recognition operation for each individual nozzles.
1303-001
2.3 "NozMng." Tab Sheet
2OM-1751
4-171303-001
[9] C:Comp. Vertical
Each text box shows the number of vertical component errors detected by the
linear measure detection sensor for each individual nozzles.
[10] D:Comp. Recog
Each text box shows the number of errors detected through recognition
operation for each individual nozzles.
[11] E:Comp. Thick
Each text box shows the number of errors in component thickness detected
by the linear measure detection sensor for each individual nozzles.
[12] F:Pick-up Diff
Each text box shows the number of pickup difference errors detected in the
recognition process for each individual nozzles.
[13] G:Comp. Posture
Each text box shows the number of reversed component and polarity
judgment errors detected in the recognition process for each individual
nozzles.
[14] H:Meas. Error
Each text box shows the total times of measured value error in each feeder.
[15] K:Copla. Error
Each text box shows the total times of detected "Coplanarity Error" in each
feeder. This error is detected in the option attachment.
[16] L:Obv / Reverse
The "judged front/rear error" for each nozzle, detected using the linear
measure is displayed in this data box.
[17] Nozzle Clear/Change Date
Each text box shows the clear date for each individual nozzles.
2.3 "NozMng." Tab Sheet
2OM-1751
4-181303-001
2.4 "Handling/Plac." Tab Sheet
When the [Handling/Plac.] tab is pressed in the "MNG.DT." window, the
following tab sheet appears inside the window.
[1]
[2]
[3]

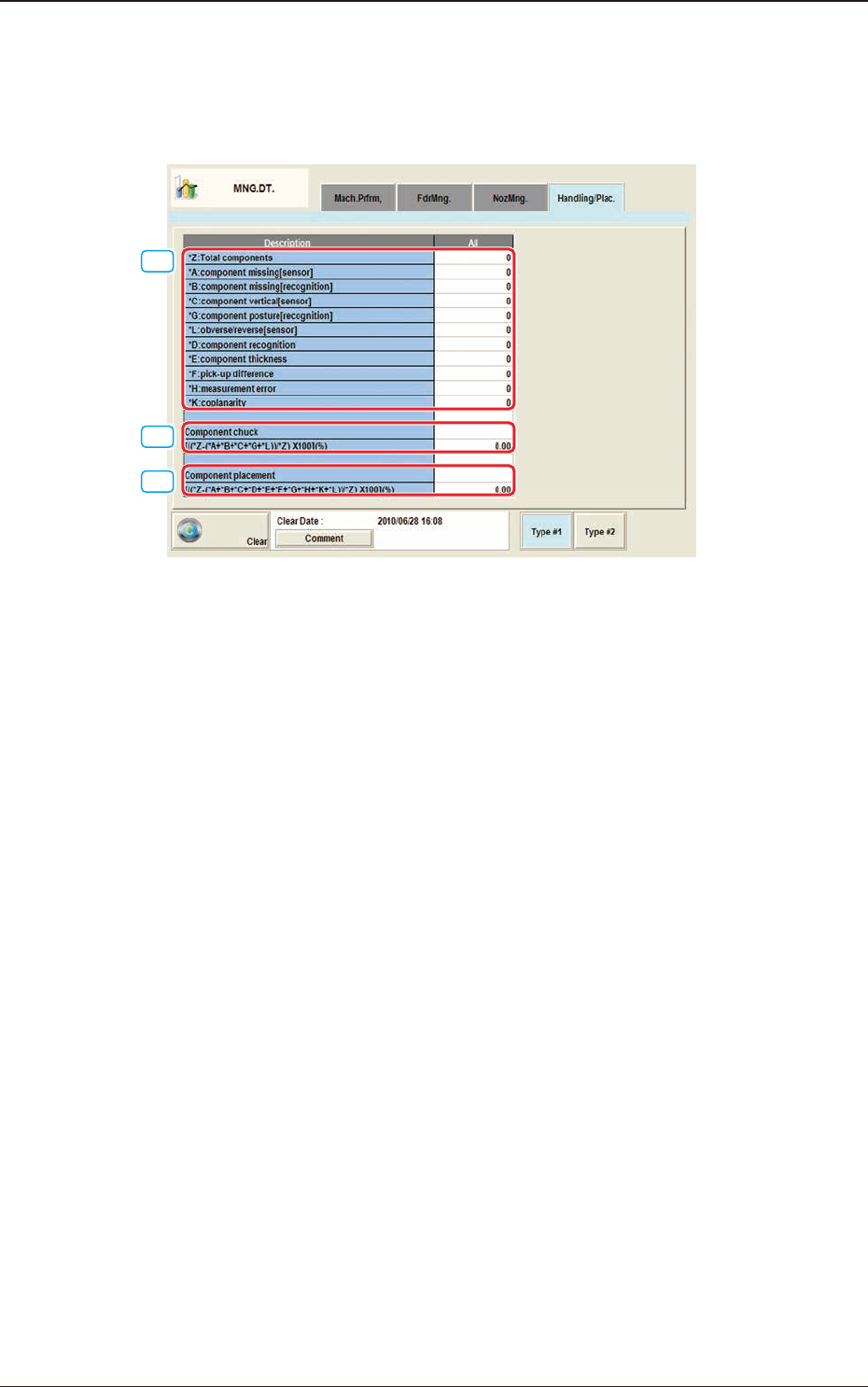

"Handling/Plac." Tab Sheet F2D12
[1] Z:Total components
Shown is the number of component picks.
*A:component missing[sensor]
Shown is the number of component missing errors detected by the
component linear measure detection sensor.
(Case: "NG" (No Good) in Component Recognition and Linear Measure
Detection Sensor)
*B:component missing[recognition]
Shown is the number of component missing errors detected through
component recognition operation.
*C:component vertical[sensor]
Shown is the number of components judged "NG" (No Good) by the linear
measure detection sensor although they are judged "OK" through component
recognition process.
*G:component posture[recognition]
Shown is the number of reversed component and polarity judgment errors
detected in the recognition process.
*L:obverse/reverse[sensor]
The "judged front/rear error" times for each feeder, detected using the linear
measure, is displayed in these data boxes.
2.4 "Handling/Plac." Tab Sheet
