2OM-1751 4-37 1303-001 4.2 "Nozzle Message Rate" T ab Sheet The corresponding tab sheet enables the operator to view the nozzle management data for each nozzle/head. [5] [6] [7] [2] [1] [3] [4] [8] [9] "No…
2OM-1751
4-361303-001
[5] C:Comp. Vertical
Each text box shows the total number of vertical component errors detected
by the linear measure detection sensor for each individual feeders.
[6] D:Comp. Recog
Each text box shows the total number of errors detected through recognition
operation for each individual feeders.
[7] E:Comp. Thick
Each text box shows the total number of errors in component thickness
detected by the linear measure detection sensor for each individual feeders.
[8] F:Pick-up Diff
Each text box shows the total number of pickup difference errors detected in
the recognition process for each individual feeders.
[9] G:Comp. Posture
Each text box shows the total number of reversed component and polarity
judgment errors detected in the recognition process for each individual
feeders.
[10] H:Meas. Error
The No. of measurement error total times for each feeder is displayed in this
data box.
[11] K:Copla. Error
Each text box shows the total count of the "Copla. Error" detection in each
feeder.
[12] L:Obv/Reverse
The "judged front/rear error" times for each feeder, detected using the linear
measure, is displayed in these data boxes.
[13] Feeder Message Rate
(Total Errors / Total Noz. Usage)
Each text box shows the rate of pickup errors (the number of pickup errors
per number of picked component) for each individual feeders.
4.1 "Feeder Message Rate" Tab Sheet
2OM-1751
4-371303-001

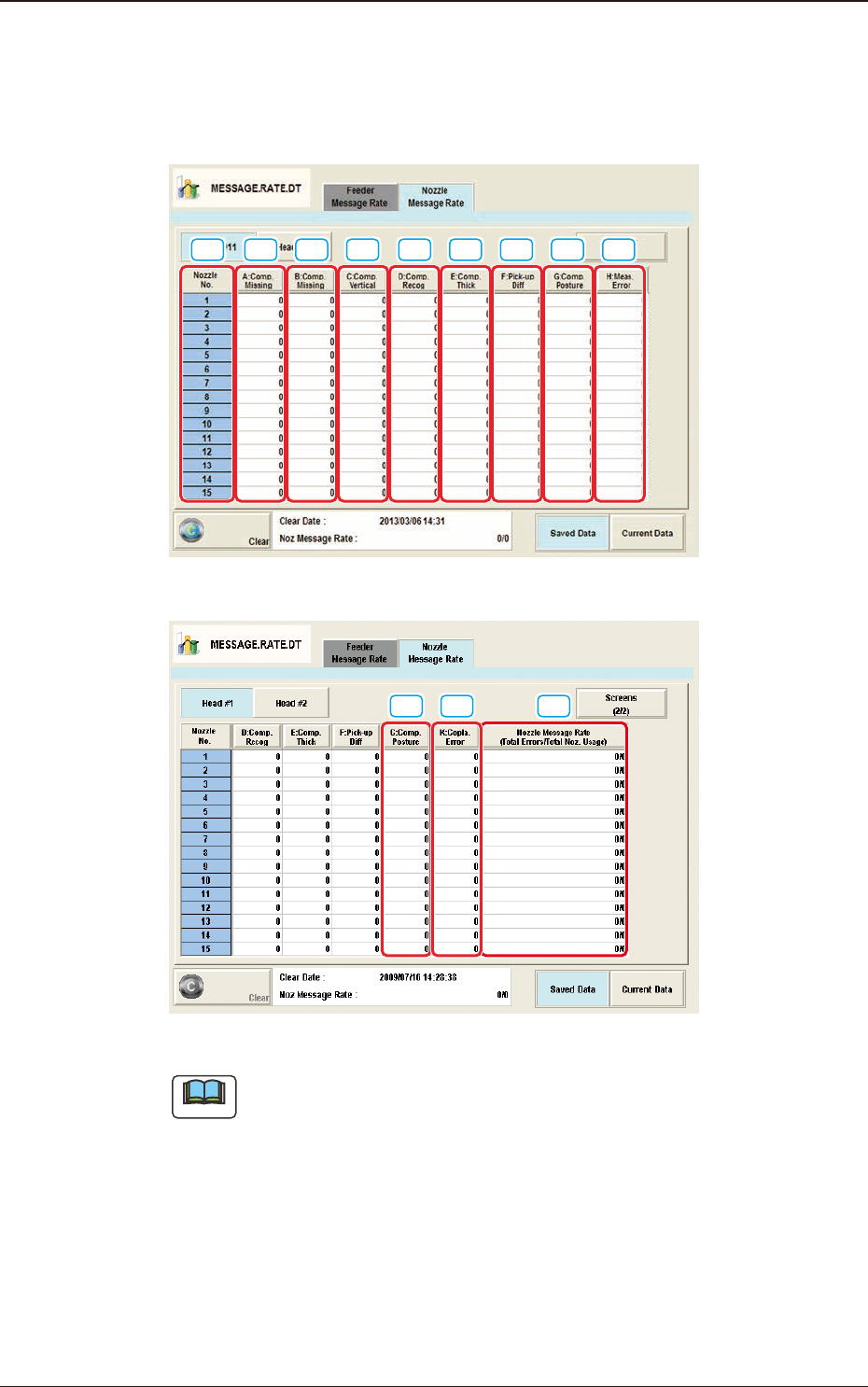

4.2 "Nozzle Message Rate" Tab Sheet
The corresponding tab sheet enables the operator to view the nozzle management
data for each nozzle/head.
[5] [6] [7][2][1] [3] [4] [8] [9]
"Nozzle Message Rate" Tab Sheet F2D24
[12][10] [11]
"Nozzle Message Rate" (Graphic) Tab Sheet F2D25
Note
(a) The displayed tab sheet will look different, depending on which option is
selected.
(b) When one of the above buttons is pressed, the nozzle No. with the biggest
parameter under the selected button is displayed in the rst line and nozzle
Nos. having the subsequent (second, third, fourth, ...) biggest parameters
follow.
That is, parameters are re-arranged in order of error counts, making it easy
to analyze and improve production rate.
When the [Noz.] button is pressed, the Nos. are re-arranged in their initial
order (Nozzle Nos.).
4.2 "Nozzle Message Rate" Tab Sheet
2OM-1751
4-381303-001
The "Nozzle Message Rate" tab sheet is divided further into two tab sheets and
each tab sheet shows the nozzle management data for each individual head.
When each head selection button is pressed, the tab sheet for the corresponding
head appears.
[1] Nozzle No.
Shown are the nozzle Nos.
[2] A:Comp. Missing
Each text box shows the number of missing components detected by the
linear measure detection sensor for each individual nozzles.
[3] B:Comp. Missing
Each text box shows the number of missing components detected through
recognition operation for each individual nozzles.
[4] C:Comp. Vertical
Each text box shows the number of vertical component errors detected by the
linear measure detection sensor for each individual nozzles.
[5] D:Comp. Recog.
Each text box shows the number of errors detected through recognition
operation for each individual nozzles.
[6] E:Comp. Thick
Each text box shows the number of errors in component thickness detected
by the linear measure detection sensor for each individual nozzles.
[7] F:Pick-up Diff
Each text box shows the number of pickup difference errors detected in the
recognition process for each individual nozzles.
[8] G:Comp. Posture
Each text box shows the number of reversed component and polarity
judgment errors detected in the recognition process for each individual
nozzles.
[9] H:Meas. Error
The No. of measurement error total times for each nozzle feeder is displayed
in this data box.
[10] K:Copla. Error
The times of error decided in the coplanarity error detection is shown in this
data box.
4.2 "Nozzle Message Rate" Tab Sheet
