2OM-1751 5-1 1 [6] For Nozzle ID Recognition F2E12 [1] Displayed Image Operation Button Using the following buttons, the mode is changed to perform the enlargement or movement operation of the image displayed in the Reco…
2OM-1751
5-101303-001

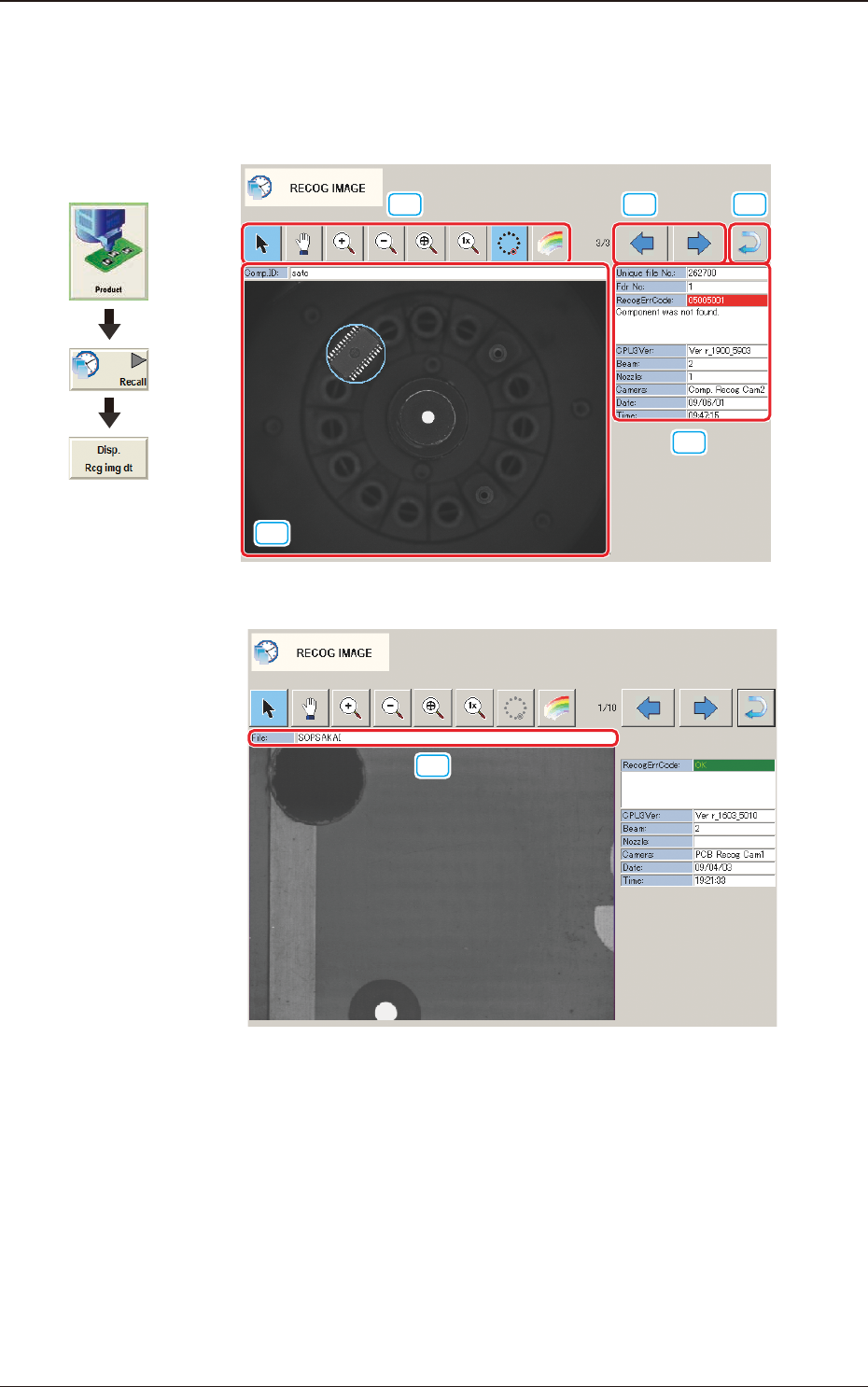

6.2 "RECOG IMAGE" Conrmation Window
When the recognized image displayed in the "RECOG IMAGE" window, is
selected, the following window appears.
[1]
[2]
[3] [4]
[5]
[2]
For Component Recognition F2E10
[6]
[6]
For PEC Recognition F2E11
Graphic
Development
6.2 "RECOG IMAGE" Conrmation Window
2OM-1751
5-11
[6]
For Nozzle ID Recognition F2E12
[1] Displayed Image Operation Button
Using the following buttons, the mode is changed to perform the enlargement
or movement operation of the image displayed in the Recognized Image
Display Area [2].
[
] Button
: Normal Operation Mode
[
] Button
: Image Movement Mode
After changing to the image movement mode using the
[
] button (the shape of the pointer is changed to
mark), drag the image to be moved (with the left button on
the mouse pressed) to move.
1303-001
6.2 "RECOG IMAGE" Conrmation Window
2OM-1751
5-121303-001
[
] button :
Image Enlargement Mode
After changing to the image enlargement mode using the
[
] button (the shape of the pointer is changed to ),
when the image to be enlarged is touched, or the left button
of the mouse is clicked on the image, the image is enlarged
from the pointer position as the center.
When the image is to be enlarged with its position xed,
place the pointer on the center of the image before the
enlargement operation.
[
] Button :
Image Reduction Mode
After changing to the image reduction mode using the
[
] button (the shape of the pointer is changed to )
when the image to be reduced is touched, or the left button
of the mouse is clicked on the image, the image is reduced
from the pointer position as the center.
When the image is to be reduced with its position xed,
place the pointer on the center of the image before the
reduction operation.
[
] Button :
Image Fitting Mode (the image is displayed fully using the
recognition image display domain).
After changing to the image tting mode using the [
]
button (the shape of the pointer is changed to
), when
the image to be t is touched, or the left button of the
mouse is clicked on the image, the image is displayed
fully using the recognition image display domain, from the
pointer position as the center.
When the image is to be displayed in the image tting mode
with its position xed, place the pointer on the center of the
image before the image tting operation.
[
] Button :
Image Real-Size Display Mode (Captured image is
displayed in real-size).
After changing to the image real-size display mode using
the [
] button (the shape of the pointer is changed to
), when the image to be displayed in real-size is touched,
or the left button of the mouse is clicked on the image, the
image is displayed in real-size from the pointer position as
the center.
When the image is to be displayed in real-size with its
position xed, place the pointer on the center of the image
before the image real-size display operation.
