For Support Pin Automatic Change
Procedure
(1) Press the [Setup] button on the submenu bar to display the "SPRT-PINS"
window.
F2F12
(2) Press the [PCB Support Pins Exchange Pos. Movement] button.
After that, press the [START] button on the operation panel in 10 sec.
(The machine retracts the head and maximizes the conveyor width.)
(3) Press the [PCB Support Pins Rem./Atch. Work] button and within 10
seconds, press the [START] button on the operation panel.
(The support pin attachment or removal will be performed automatically).
Note
When the support pins are to be changed automatically, prepare the nozzle
(PK01) in the nozzle stocker.)
(4) Press the [Product Opn Target pos Movement] button and within 10 seconds,
press the [START] button on the operation panel.
(The conveyor width will be changed according to the selected pattern
program).
4.1 Collection of PCB Support Pins and Setup Operation of Conveyor Width
2OM-1751
6-131303-001

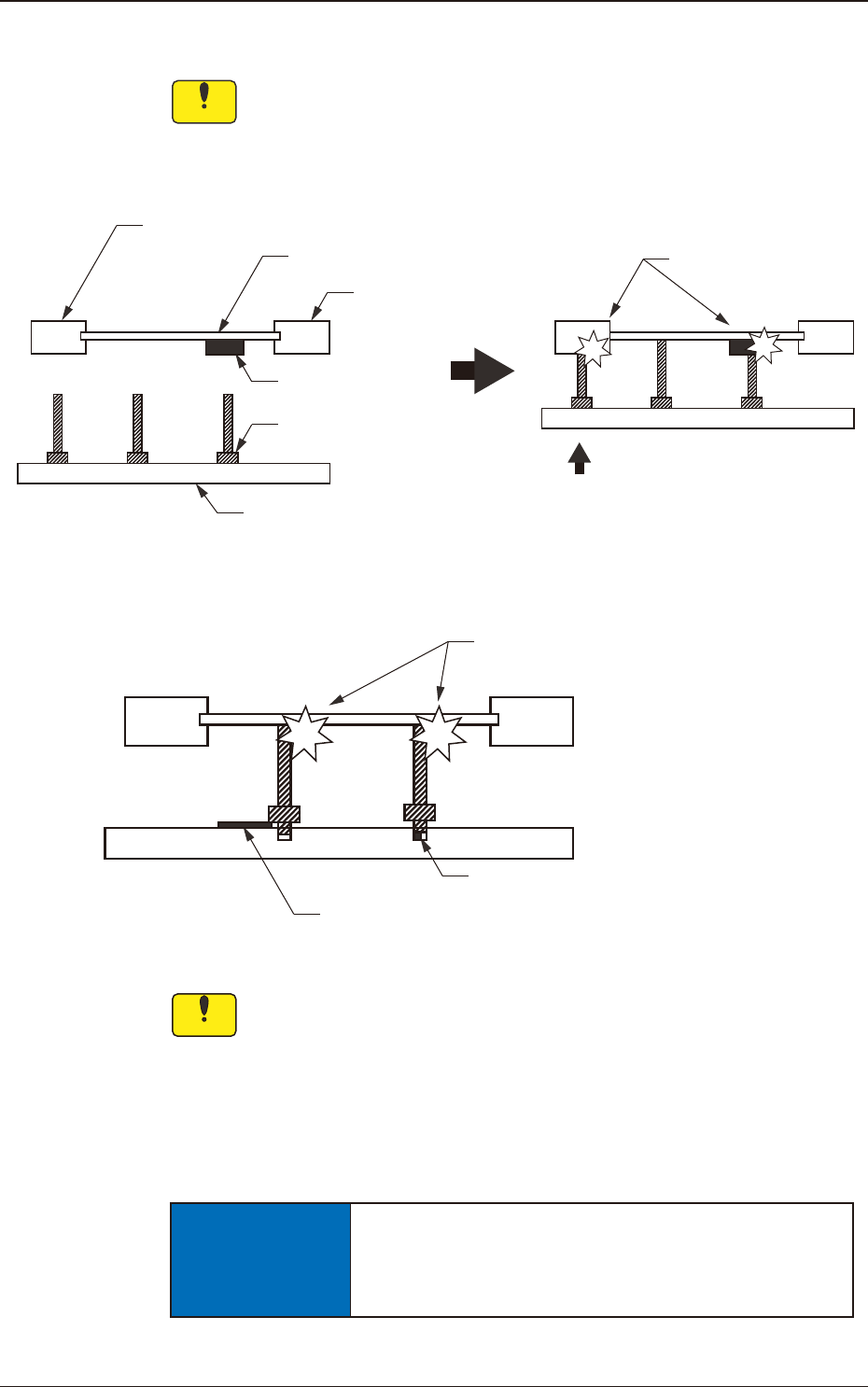

4.1.1 Notes on Attachment / Detachment of PCB Support Pins
Notice
Be sure to insert the PCB support pins at right angles.
•
When a PCB support pin is inserted at the bottom side of the chute, it
may collide with the backup table while the backup table is moving up.
•
If the pins are inserted improperly, the machine will break down.
Chute
PCB
Previously Placed
Component
Chute
PCB Support Pin
Backup Table
Collision!
Backup Table Up Movement
Improper Pin Insertion
F2F13
Collision!
Foreign Substance on Backup Table
Foreign Substance such
as a component trapped in the hole
F2F14
Notice
(a) When a component is trapped or dust has accumulated on the
backup table, the PCB support pins cannot be set correctly.
In this case, remove the component or the dust with a vacuum
cleaner, etc. (Air Blowing Prohibited).
(b) Do not put your hand or any heavy object on the backup table while
working with the backup table. Otherwise, the backup table may
become deformed due to an excessive load.
NOTICE
When some components are previously placed on the back
of the PCB, the PCB support pins must be inserted such
that they do not touch any component.
4.1 Collection of PCB Support Pins and Setup Operation of Conveyor Width
2OM-1751
6-14

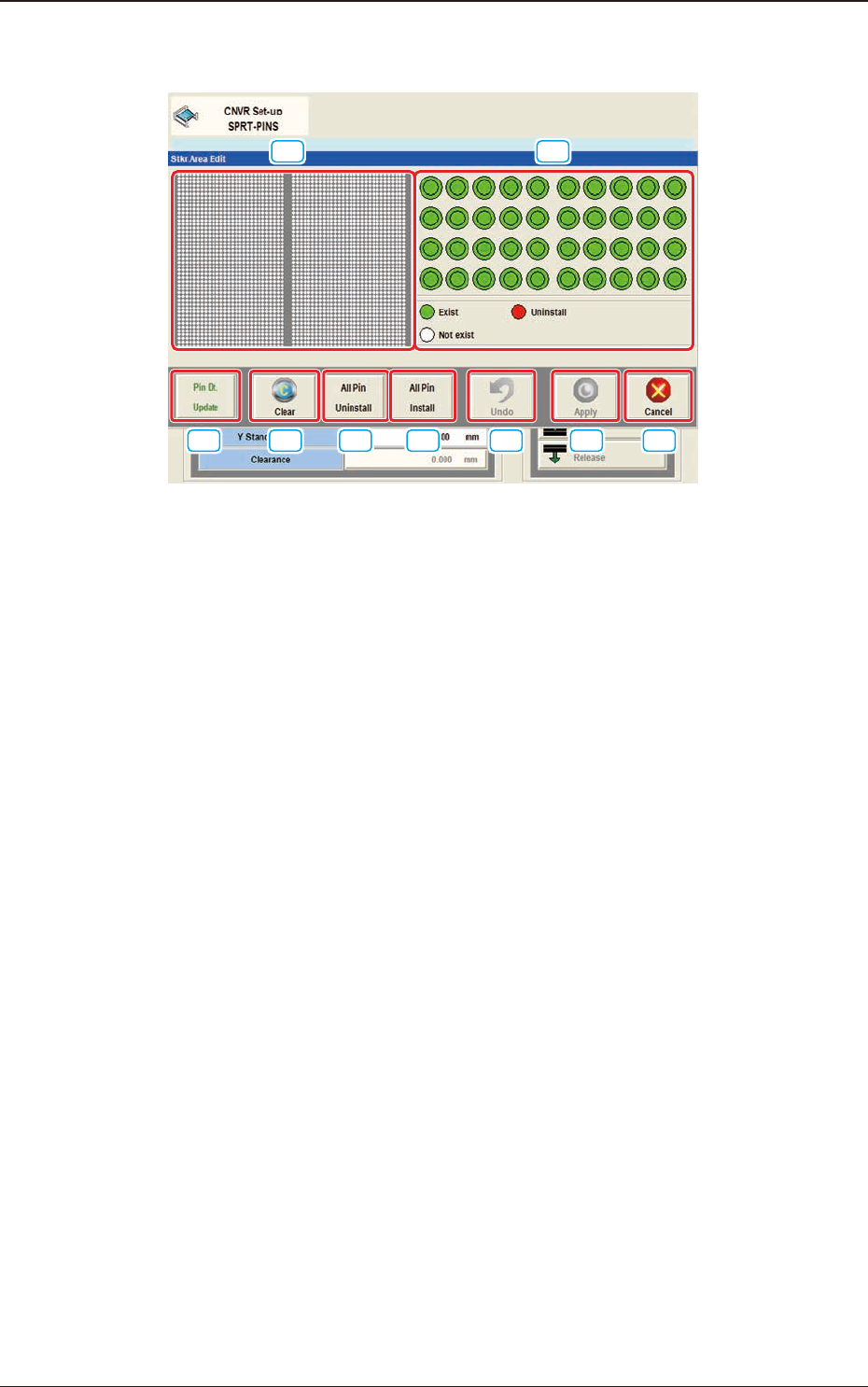

4.2 "Stkr.Area Edit" Window
[1] [2]
[3] [4] [5] [6] [7] [8] [9]
F2F15
[1] PCB Support Pin Position Display Pane
The backup table is displayed as an image in this pane.
The arrangement condition of the PCB support pins is displayed.
[2] Stock Area Image Display Pane
The stock area for the PCB support pins is displayed as an image.
When any pin is clicked, "pin presence" and "pin absence" is toggled for the
corresponding pin.
Green
: Exist
Red
: Uninstall
White
: Not exist
[3] [Pin Dt. Update] Button
When this button is pressed, the stock area arrangement data is updated.
[4] [Clear] Button
When pressed, the arrangement parameters for the PCB support pins
arranged on the backup table, is cleared.
[5] [All Pin Uninstall] Button
When pressed, the arrangement parameters for all the support pins for the
stock area, is changed to ones for "pin absence".
[6] [All Pin Install] Button
When this button is pressed, the stock area arrangement data is changed to
one for all pins placement.
1303-001
4.2 "Stkr.Area Edit" Window
