2OM-1751 6-44 (6) When new placement position is to be registered formally , press the [End] button. (The "Conrmation to Saving" window will appear ("If a data has no temporal registration, the teaching r…
2OM-1751
6-43
Manual (Manual Axis Operation) Teaching
Procedure
(1) Specify the teaching mode with the buttons in the "Teach Mode" group box.
For the teaching method, select "AUTO" or "Center".
(2) Select [Cycle run] button or [Select Step] button, move the X/Y beam to the
object step.
(After pressing each buttons, operate as follows.)
•
Press the [START] button on the operation panel in 10 seconds after the
[Cycle run] button to start the automatic movement.
After the X/Y beam has moved to the object step for the teaching
operation, stop the beam with the [STOP] button on the operation panel.
•
Press the [START] button on the operation panel in 10 seconds after the
[Select Step] button. Repeat this until the X/Y beam moves to the object
step for the teaching operation.
•
Use the vertical scroll bar in the "Step Data" pane or select the object step
for the teaching operation with the [Dsig Step] button.
(3) Press the START button on the operation panel in 10 seconds after the
[TEACH] button.
(4) Using the graphic image move buttons, match the component outer
shape shown in the recognition area with the PCB pattern captured in the
recognition memory image, and when the position is decided, press the [OK]
button to determine the position.
(5) When the teaching operation is completed, new placement position is
displayed in the position teaching's "Teac Res" text boxes (X, Y) in the
"Place Pos Teach" window. Check them.
(New placement position is registered temporarily and written in the le.)
Note
(a) The Temp Entry function of the new placement position saves the
temporary le for the data for operation and pattern program le, but
does not overwrite the data on the original le.
(b) The temporarily entered step data can be cancelled. When it is to
be cancelled, select the step to be cancelled and press the [Cncl Dt]
button.
(c) The temporarily entered step data is indicated with a blue background.
(d) The temporarily entered data is immediately reected on the Auto
Move and Step Move operations.
(e) While the new placement position is being registered temporarily, it
becomes impossible to edit the current pattern program data.
(f) When all data items are to be cancelled, refer to (6).
1303-001
7.2 "Place Pos Teach" Window
2OM-1751
6-44

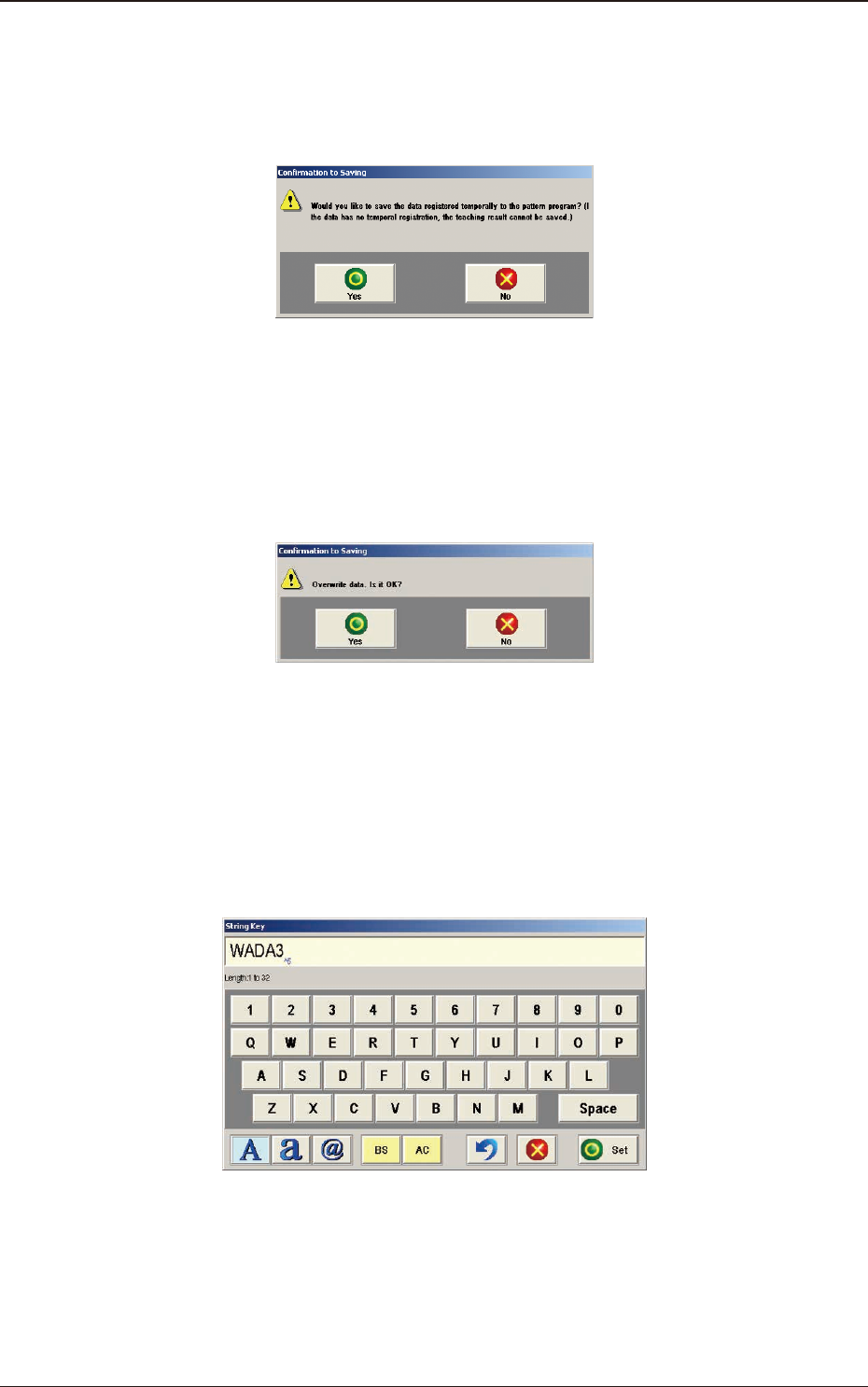

(6) When new placement position is to be registered formally, press the [End]
button.
(The "Conrmation to Saving" window will appear ("If a data has no
temporal registration, the teaching result cannot be saved").)
F2F41
To replace the current pattern program data with the new one ("Save"
Command)
When the [Yes] button is pressed in the "Conrmation to Saving" window,
the "Conrmation to Saving" message is displayed ("Overwrite data. Is it
OK?")
F2F42
Maintaining the Current Pattern Program Data (Save As)
When the [No] button is pressed in the "Conrmation to Saving" message
window ("Overwrite it. Is it OK?"), the "String key" window appears.
Enter new le name and press the [Set] button.
The temporarily entered pattern program will be saved with the newly
entered le name.
F2F43
Deleting the Teach Data (All Teach Data Delete)
Press the [No] button in the "Conrmation to Saving" window ("Would you
like to save the data registered temporarily to the pattern program?
(If the data has not temporal registration, the teaching result cannot be
saved)").
1303-001
7.2 "Place Pos Teach" Window
2OM-1751
6-451303-001
7.3 "COMP RCG" Test Window
The corresponding tab sheet enables the operator to test to check that the
component designated in the Test ID, is recognized normally.
F2F44
The "COMP RCG" test window is provided with the following tab sheet.
Tabs Description
Select from list
The corresponding tab sheet enables the operator to test to check that the
component designated in the Test ID, is recognized normally.
Sel. from CompDt
The corresponding tab sheet enables the operator to test to check that the
component is recognized normally by means of designating the Test ID
used in the block.
Library Teaching
New Creation
The corresponding tab sheet enables the operator to create new
component library teaching data.
T2F2
Graphic
Development
7.3 "COMP RCG" Test Window
