2OM-1751 6-80 (14) The modication method selection window will appear . Press the [Fixed] button. Note In the case of "QFP", because the component size is xed on the lead root, adjustment is not available. F2…
2OM-1751
6-79

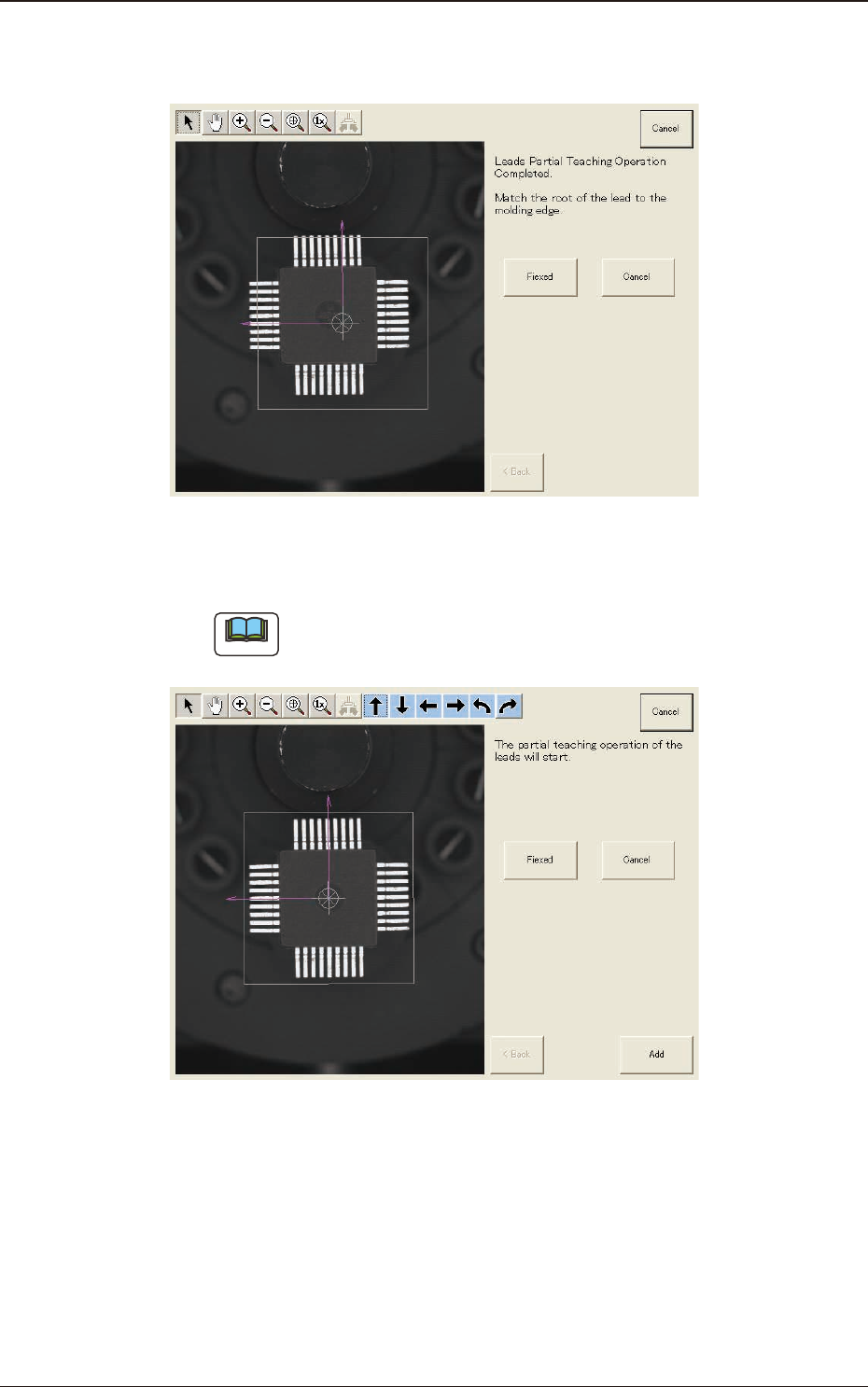

(12) When the partial teaching of the leads is completed, align the root of the
leads with the mold end and press the [Fixed] button.
F2F82
(13) When there is no group to be taught, press the [Fixed] button.
Note
If there is any other group to be taught, press the [Add] button.
F2F83
1303-001
7.3 "COMP RCG" Test Window
2OM-1751
6-80
(14) The modication method selection window will appear. Press the [Fixed]
button.
Note
In the case of "QFP", because the component size is xed on the lead root,
adjustment is not available.
F2F84
(15) The window with a message
"
Exiting from New Teaching Operation
"
will
appear. Press the [Complete] button.
F2F85
1303-001
7.3 "COMP RCG" Test Window
2OM-1751
6-81
7.3.7.2 Leadless Components - Resistor Networks
Procedure

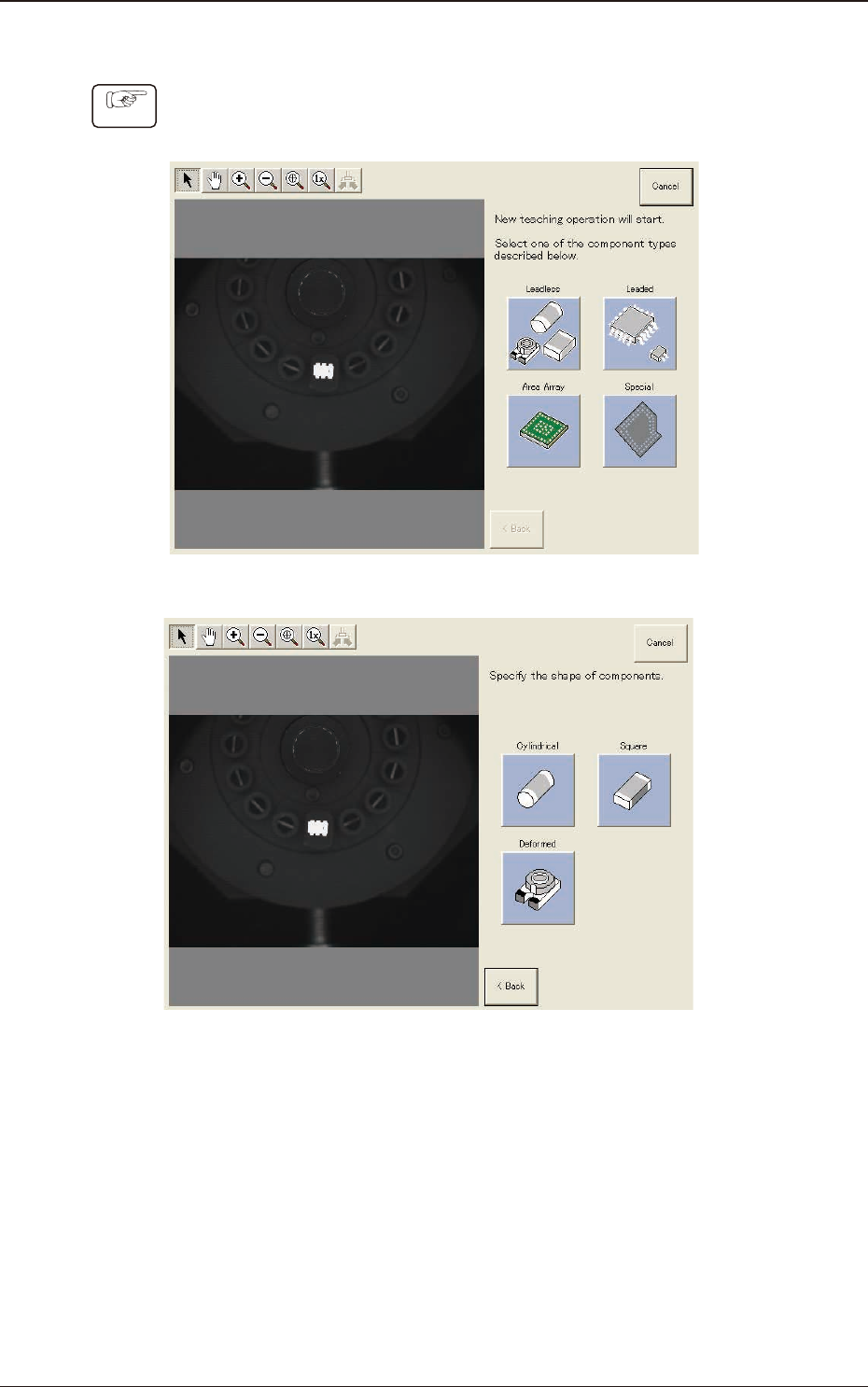

(1) Select [Leadless] and [Deformed] in this order.
F2F86
3
F2F87
1303-001
7.3 "COMP RCG" Test Window
