2OM-1751 6-93 (10-2) If there is any necessary ball to be added, after pressing the [Insertion of ball] button, specify the range of the balls to be added on the image and add such balls. (1 1) When the teaching is compl…
2OM-1751
6-92

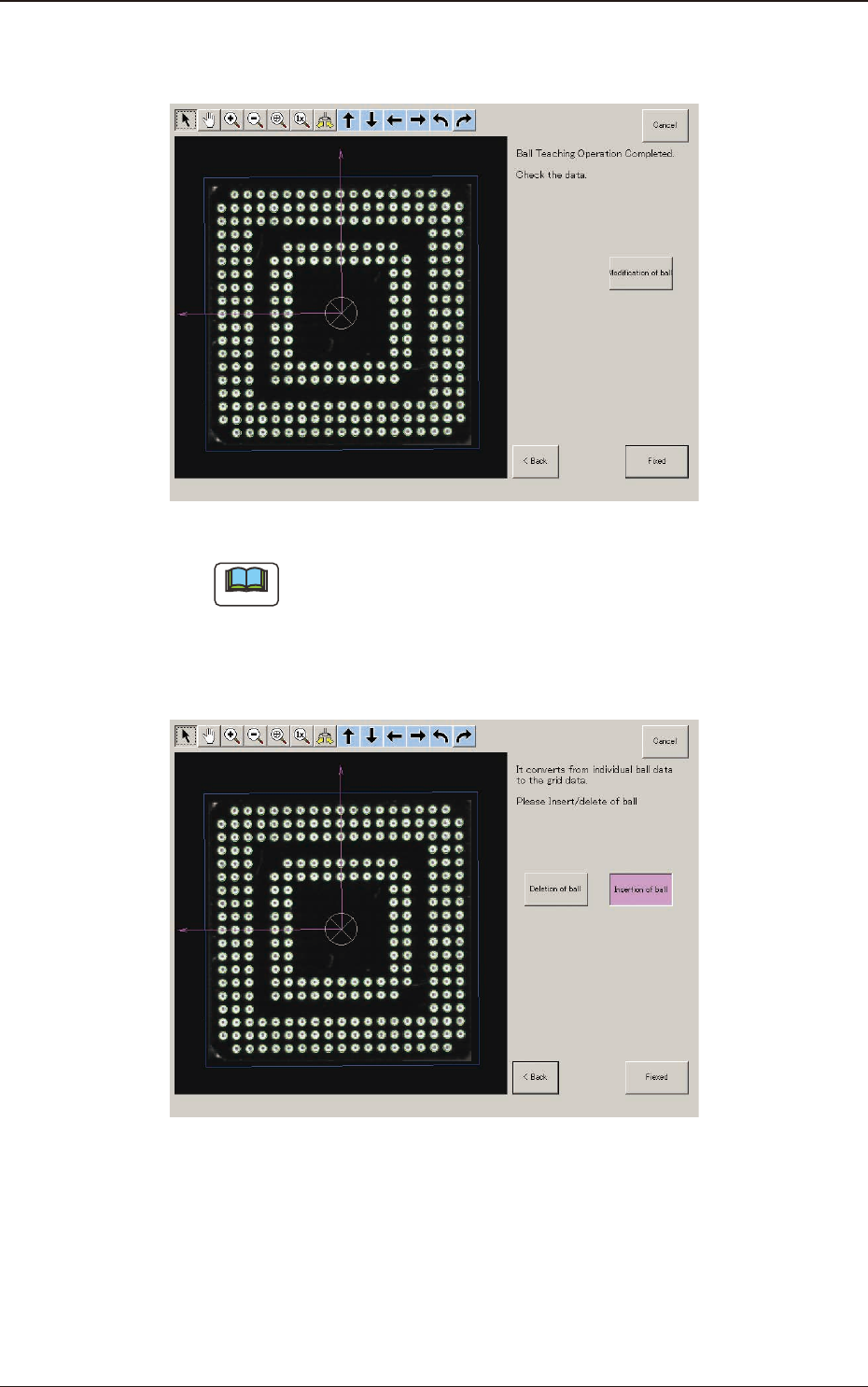

(9-1) If there is any unnecessary ball, press the [Modication of ball] button to
delete such balls.
F2F108
Note
When there are unrequired balls, the data may not be correctly converted
to grid data.
(10) When the conversion to the grid data is completed, check the data and press
the [Fixed] button.
F2F109
(10-1) If there is any unnecessary ball, after pressing the [Deletion of ball]
button,
specify the range of the balls to be deleted on the image and delete such
balls.
1303-001
7.3 "COMP RCG" Test Window
2OM-1751
6-93
(10-2) If there is any necessary ball to be added, after pressing the [Insertion of
ball] button, specify the range of the balls to be added on the image and
add such balls.
(11) When the teaching is completed, press the [Complete] button.
F2F110
1303-001
7.3 "COMP RCG" Test Window
2OM-1751
6-94
7.3.8 Exiting from Library Data Teaching Operation
When the [Complete] button is pressed in the "Create Teach" wizard, the
"COMPONENT LIBRARY" (teaching operation) window appears again.
(1/2) F2F111
(2/2) F2F112
Pressing the [Recog] button can execute the recognition test for the created
component library data.
Pressing the [Edit] button can re-edit the created component library data.
When the teaching is to be ended, after pressing the [Dscd] or [Collect.] button to
discard or collect the component, press the [Return] button.
The data saving conrming dialog is displayed.
When the created component library data is to be saved in the test library, press
the [Yes] button and when it is to be discard, press the [No] button.
1303-001
7.3 "COMP RCG" Test Window
