2OM-1751 1-3 1303-001 [1] "Product." Main Menu Bar [Product.] Main Menu Opens the "product" window. In normal cases, this window opens as an initial one. [Comp.Reld.] Main Menu Opens the "Comp.Re…
2OM-1751
1-21303-001

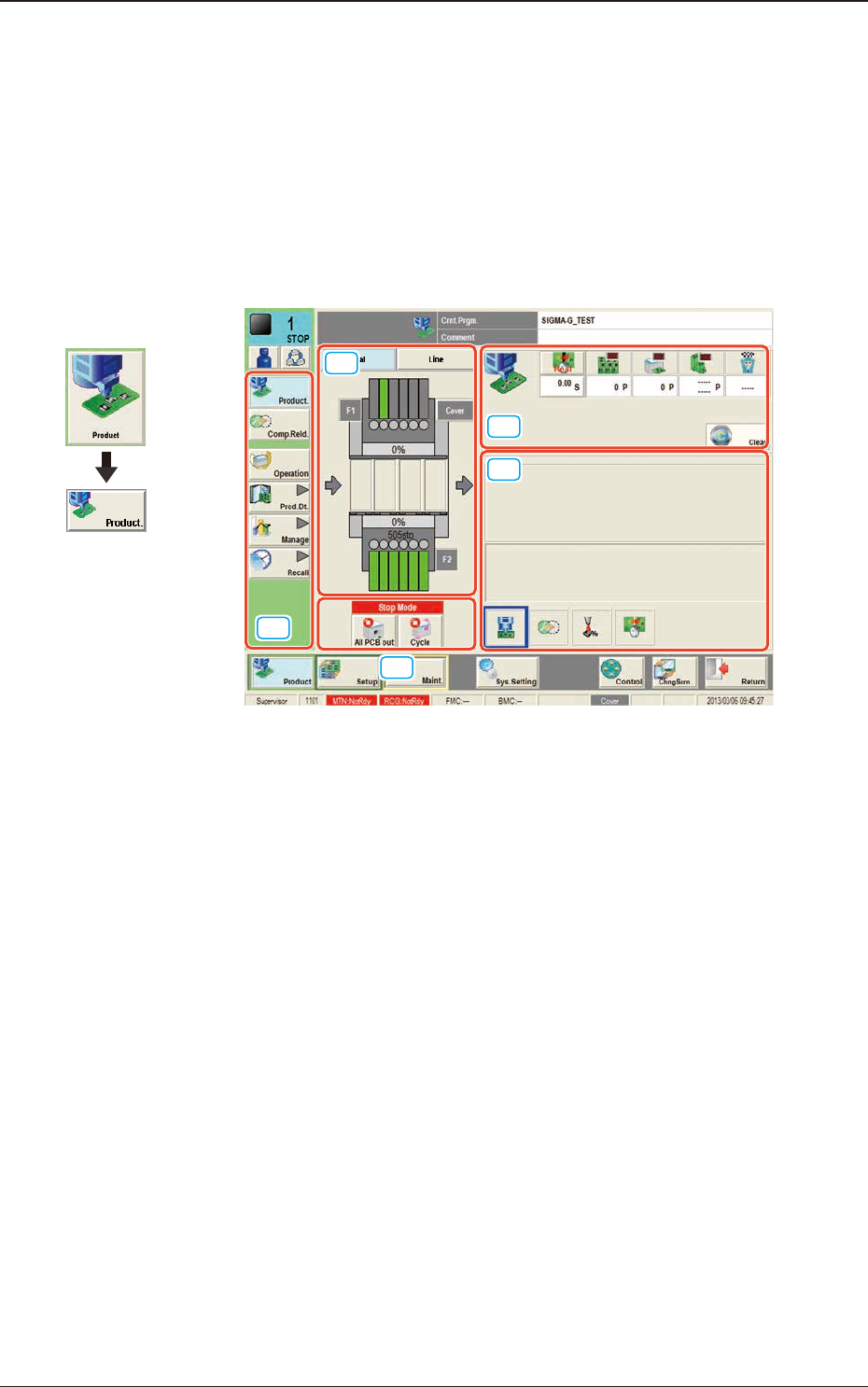

2. "Product" Window
2.1 Local Window
This window enables you to view the current operation status and production
condition such as the production model names (pattern program names), etc.,
and the information on the prospective number of nished PCBs and presumable
deterioration in the operation rate based on pickup errors, etc.
[1]
[3]
[4]
[5]
[2]
F2A2
Graphic
Development
2. "Product" Window
2OM-1751
1-31303-001
[1] "Product." Main Menu Bar
[Product.]
Main Menu
Opens the "product" window. In normal cases,
this window opens as an initial one.
[Comp.Reld.]
Main Menu
Opens the "Comp.Reload" window.
Refer to "3. "Comp.Reload" Window"
for details .
[Operation]
Main Menu
Opens the "OPERATION" window.
Refer to "4. "OPERATION" Window"
for details.
[Prod.Dt.]
Main Menu
Opens the "Prod.Dt." window.
:
[Manage]
Main Menu
Opens the "Manage" window.
Refer to "Management Data in chapter 4" for
details.
:
[Recall]
Main Menu
:
:
:
:
Reference
Reference
Reference
Opens the "Recall" window.
Refer to "Recall in chapter 5" for details.
Reference
Refer to "Pattern Program in chapter 2" and
"Component Library in chapter 3" for details.
Reference
"Product." Main Menu Bar F2A3
2.1 Local Window
2OM-1751
1-41303-001
[2] Graphic Display Area
The graphic image of the PCB transfer and component input sections is
displayed in this area.
Note
The displayed contents will differ depending on selection of the options.
Feeder status (Pick-up Rate)
(2) 201 to 260
(Feeder Component Data)
PCB Process Status
(2) 101 to 160
Placement Step Count
(3)
(4)
(1)
Graphic Display Area F2A4
(1) Local / Line Change Buttons
Using these buttons, the graphic display section is changed.
Note
When the line consists of a single unit, the line control change
button is not displayed.
[Local] Button
: When this button is pressed, the graphic image of
the single machine is displayed.
[Line] Button
: When this button is pressed, the graphic image of
the line is displayed.
The line start or line stop after the completed PCB
is discharged from the line, is performed.
Reference
Refer to "2.2 Line Window" for the details.
2.1 Local Window
