1004-004
22
11
10
5
3
1
See Fig.W-5
Key No.445
7
8
9
6
2
4
16
See Fig.W-1
Key No.2
See Fig.W-1
Key No.47
15
14
継ぎ
目検出ユニット

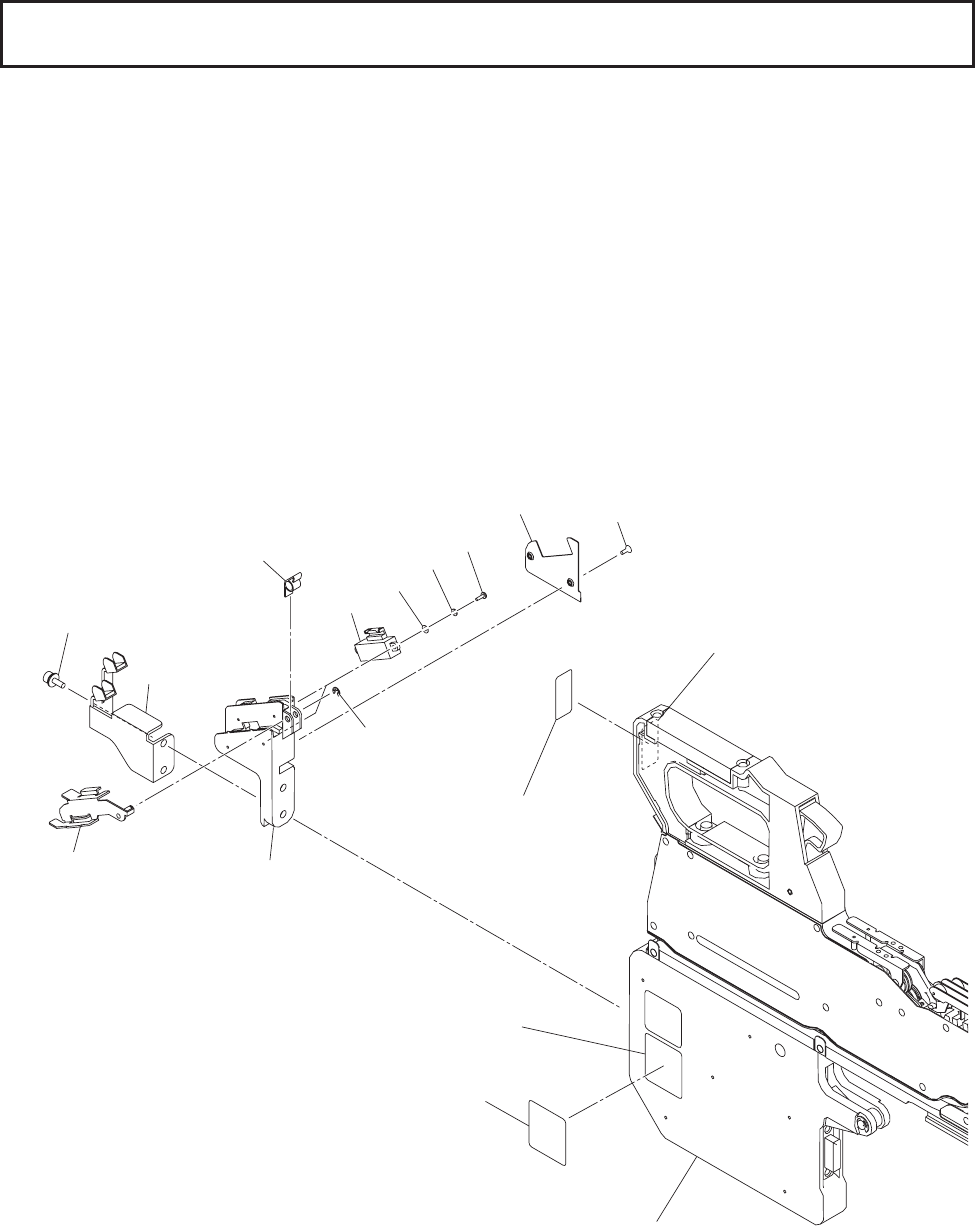

JOINT DETECTION UNIT
DS-08080 DS-08080
Fig. WD-1 8mm
幅テープフィーダ用
For 8mm Tape Feeder
WD-1 illust-1
必ずバージョンを確認してから、立体分解図の書類番号を選択して下さい。（
Fig. W
参照）
Make sure to confirm the version No. and select the Document No. for the Exploded View. (Refer to Fig. W).
1004-004
23
1 6301556802 FRAME 1 804WD-110-001 210B4161
2 6301300542 ASSY,LEVER(HOLD) 1 804WD-110-002 016S0729
3 6301295886 COVER 1 804WD-110-003 211A8923
4 6301295879 SPRING,TORSION 1 804WD-110-004 222P0183
5 4110160203 RING E 2.5 1 804WD-110-005 221K0114
6 6301289021 SENSOR,PHOTO 2 B01,B02
804WD-110-006 23G10090
7 4110392604 SCR PAN 2X6 4 804WD-110-007 221E0483
8 4111412509 WASHER SPR 2 4 804WD-110-008 221H0276
9 4111413605 WASHER V 2X5X0.3 4 804WD-110-009 221H0307
10 4110335700 SCR FLT 2.5X6 2 804WD-110-010 221D0261
11 221AA096 BOLT,HEX-SCT 2 M4X20 804WD-110-011 221AA096
14 08040006 NAME PLATE,INDEX 1 804WD-110-014 08040006
15 08040002 NAME PLATE,INDEX 1 804WD-110-015 08040002
16 6301403694 GUIDE 1 804WD-110-016 212A2269
DS-08080
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
WD-1
WD-1 list-1
必ずバージョンを確認してから、立体分解図の書類番号を選択して下さい。（
Fig. W
参照）
Make sure to confirm the version No. and select the Document No. for the Exploded View. (Refer to Fig. W).
