1004-003

27

Key No. PART No. PART NAME Q’ty REMARKS New Code

NOTE

S-1

S-1 list-1

必ずバージョンを確認してから、立体分解図の書類番号を選択して下さい。（

Fig. S

参照）

Make sure to conﬁrm the version No. and select the Document No. for the Exploded View. (Refer to Fig. S).

1 6301735801 FRAME 1 877S--020-001 210B4456

2 6301624952 BLOCK(KIBAN) 1 877S--020-002 211G5664

3 6301730776 COVER(LA) 1 877S--020-003 211AD750

4 6301624723 COVER(LB) 1 877S--020-004 211AC688

5 6301730783 COVER(RA) 1 877S--020-005 211AD751

6 6301624747 COVER(RB) 1 877S--020-006 211AC690

8 6301688022 COVER(KIBAN) 1 877S--020-008 211AD219

9 6301366463 SLIDE(BASE) 1 877S--020-009 212C0385

10 6301266084 ASSY,LEVER(KAIJYO) 1 877S--020-010 016S0689

11 6301265827 PIN,HINGE 1 877S--020-011 216D0448

12 6301265834 ROLLER 1 877S--020-012 213C0206

13 6301265841 PIN,GUIDE(ROLLER) 1 877S--020-013 216F0879

14 6301646121 SPRING,TORSION 1 877S--020-014 222P0207

19 6301265735 COVER(HAISEN) 1 877S--020-019 211A8626

20 6301687537 PIN,LOCATE(TAPE) 4 877S--020-020 216E1741

21 6301265933 GUIDE(TAPE) 2 877S--020-021 212A2058

23 6301265742 COVER(FUTA) 2 877S--020-023 211A8627

24 6301629957 MECH PARTS(MAGNET) 2 877S--020-024 226J2473

25 6301265902 MECH PARTS(CUTTER) 1 877S--020-025 226J1909

26 6301274546 SCR PAN+SW+W 3X6 2 877S--020-026 221D0262

27 6300347906 MECH PARTS(RUBBER LEGS) 1 877S--020-027 226J0249

28 4110335700 SCR FLT 2.5X6 47 877S--020-028 221D0261

29 6300008494 BOLT,HEX-SCT 1 M2.5X6 877S--020-029 221A0104

30 6300007633 BOLT,HEX-SCT 2 M4X12 877S--020-030 221A0018

31 6300007640 BOLT,HEX-SCT 2 M4X14 877S--020-031 221A0019

33 4111407208 SCR FLT 4X6 1 877S--020-033 221D0224

34 4111255403 SCR PAN 2X4 1 877S--020-034 221E0482

38 4110010003 RING E 4 2 877S--020-038 221K0097

41 4111412905 WASHER SPR 4 4 877S--020-041 221H0284

42 4111412509 WASHER SPR 2 1 877S--020-042 221H0276

43 4111414008 WASHER V 4X9X0.8 4 877S--020-043 221H0315

44 4111413605 WASHER V 2X5X0.3 1 877S--020-044 221H0307

46 0804000G NAME PLATE,NOTICE 2 877S--020-046 0804000G

47 08040006 NAME PLATE,INDEX 1 877S--020-047 08040006

48 6301624921 COVER(HAISEN) 1 877S--020-048 211AC692

49 6301633961 MECH PARTS(SEAL) 2 877S--020-049 226J2477

51 6301587677 PLATE 1 877S--020-051 211DD071

52 6300787702 BOLT,HEX-SCT 2 M3X4 BOTTAN

877S--020-052 221A0231

53 6301614182 PIN,LOCATE 1 877S--020-053 216E1716

55 6300008890 SET SCREW 1 M3X6 SET

877S--020-055 221C0002

69 6301330280 SPRING PIN 1 877S--020-069 221J0061

70 6301259970 SPRING PIN 1 877S--020-070 221J0059

72 4111406805 SCR FLT 2X4 4 877S--020-072 221D0207

GD-18083C

0901-001

28

テープフィーダ

T

APE FEEDER

GD-18083C GD-18083C

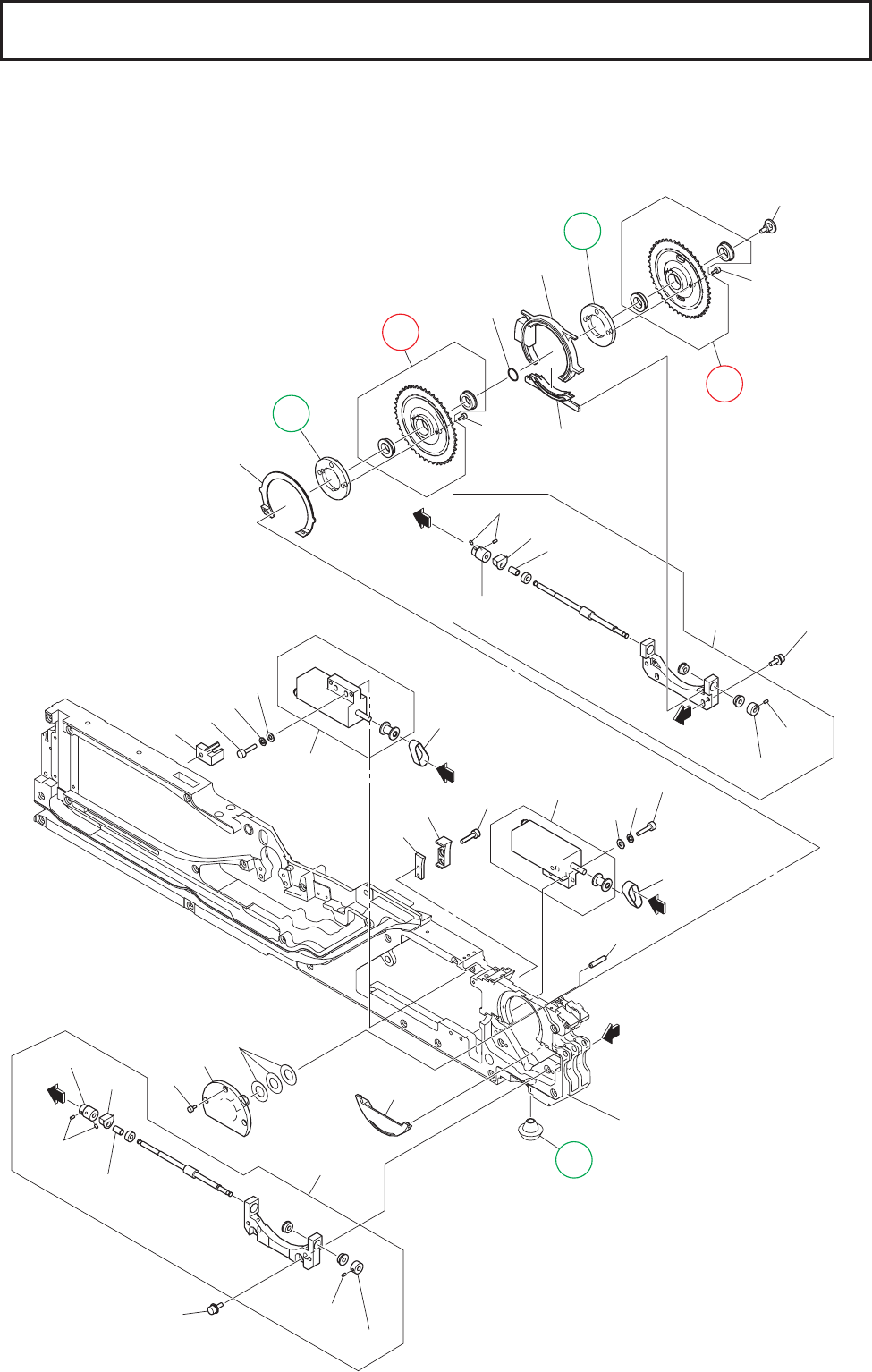

Fig. S-2

テープ駆動部

T

ape Driving Section

A

B

C

1

12

102-04

113

102-08

106

123

124

102-03

102-08

103

1

10

109

101-08

101-04

101-08

101-07

101-03

101-09

124

107

127

102-07

127

129

130

129

130

131

121

1

15

114

145

121

122

103

1

124

108

126

129

130

See Fig.S-1

Key No.1

.

126

129

130

.

104

105

101

139

102

注)

Key No.103,104,105,113(○印)は保守品と

なっております。交換時期については取扱

説明書を参照、もしくは当社サービス員に

ご相談下さい。

Notice) The Key No. 103, 104, 105 and 113

(with a circle) are maintenance components.

For replacement timing, refer to the Instruction

Manual or consult our service personnel.

102-09

S-2 illust-1

必ずバージョンを確認してから、立体分解図の書類番号を選択して下さい。（

Fig. S

参照）

Make sure to conﬁrm the version No. and select the Document No. for the Exploded View. (Refer to Fig. S).

1004-003

29

Key No. PART No. PART NAME Q’ty REMARKS New Code

NOTE

S-2

S-2 list-1

必ずバージョンを確認してから、立体分解図の書類番号を選択して下さい。（

Fig. S

参照）

Make sure to conﬁrm the version No. and select the Document No. for the Exploded View. (Refer to Fig. S).

101 08771100 ASSY,GEAR(WORM) 1 877S--020-101 08771100

101 -03 6301736938 COLLAR(PULLEY) 1 216A1654

101 -04 6301265971 COLLAR(BEARING) 1 216A1147

101 -07 6301254692 PULLEY,TIMING 1 223Q0562

101 -08 6301268248 SET SCREW(SET SCREW) 3 M2X3 SET 221C0100

101 -09 6301736945 COVER(SHAFT) 1 211AD861

102 08771101 ASSY,GEAR 1 877S--020-102 08771101

102 -03 6301736938 COLLAR(PULLEY) 1 216A1654

102 -04 6301265971 COLLAR(BEARING) 1 216A1147

102 -07 6301254692 PULLEY,TIMING 1 223Q0562

102 -08 6301268248 SET SCREW(SET SCREW) 3 M2X3 SET 221C0100

102 -09 6301736945 COVER(SHAFT) 1 211AD861

103 6301584263 ASSY,GEAR 2 877S--020-103 023E0024

104 08771102 ASSY,SPROCKET 1 877S--020-104 08771102

105 08771103 ASSY,SPROCKET 1 877S--020-105 08771103

106 6301264905 HOLDER 1 877S--020-106 216B1404

107 6301264912 PIN,LOCATE 1 877S--020-107 216E1480

108 6301706306 COLLAR(SPROCKET) 1

877S--020-1081

216A1632

108 6301706320 COLLAR(SPROCKET) 1

877S--020-1082

216A1634

108 6301706344 COLLAR(SPROCKET) 1

877S--020-1083

216A1636

109 6301732718 COVER(WORM-A) 1 877S--020-109 211AD788

110 6301732725 COVER(WORM-B) 1 877S--020-110 211AD789

111 6301732732 COVER(WORM-C) 1 877S--020-111 211AD790

112 6301732749 COVER(WORM-D) 1 877S--020-112 211AD791

113 6301653884 CAP(CAP) 1 877S--020-113 217A0154

114 6301733265 COVER(SENSOR) 1 877S--020-114 211AD803

115 6301735580 COVER 1 877S--020-115 211AD849

121 6301254708 BELT,TIMING 2 877S--020-121 223L0270

122 6301265988 PIN,LOCATE 1 877S--020-122 216E1485

123 6300083804 WASHER 3 877S--020-123 221H0017

124 6300083057 BOLT,HEX-SCT 7 M2X4 877S--020-124 221A0121

126 6300007510 BOLT,HEX-SCT 4 M3X8 877S--020-126 221A0006

127 6300007534 BOLT,HEX-SCT 4 M3X12 877S--020-127 221A0008

129 4111412806 WASHER SPR 3 8 877S--020-129 221H0281

130 4111413902 WASHER V 3X7X0.5 8 877S--020-130 221H0312

131 6301688923 ROHS:BOLT,HEX-SCT 2 877S--020-131 221AA083

139 08771204 ASSY,MOTOR,AC-SERVO 2 M01,M02

877S--020-509 08771204

145 6301733258 COVER(MOTOR) 1 877S--020-075 211AD802
