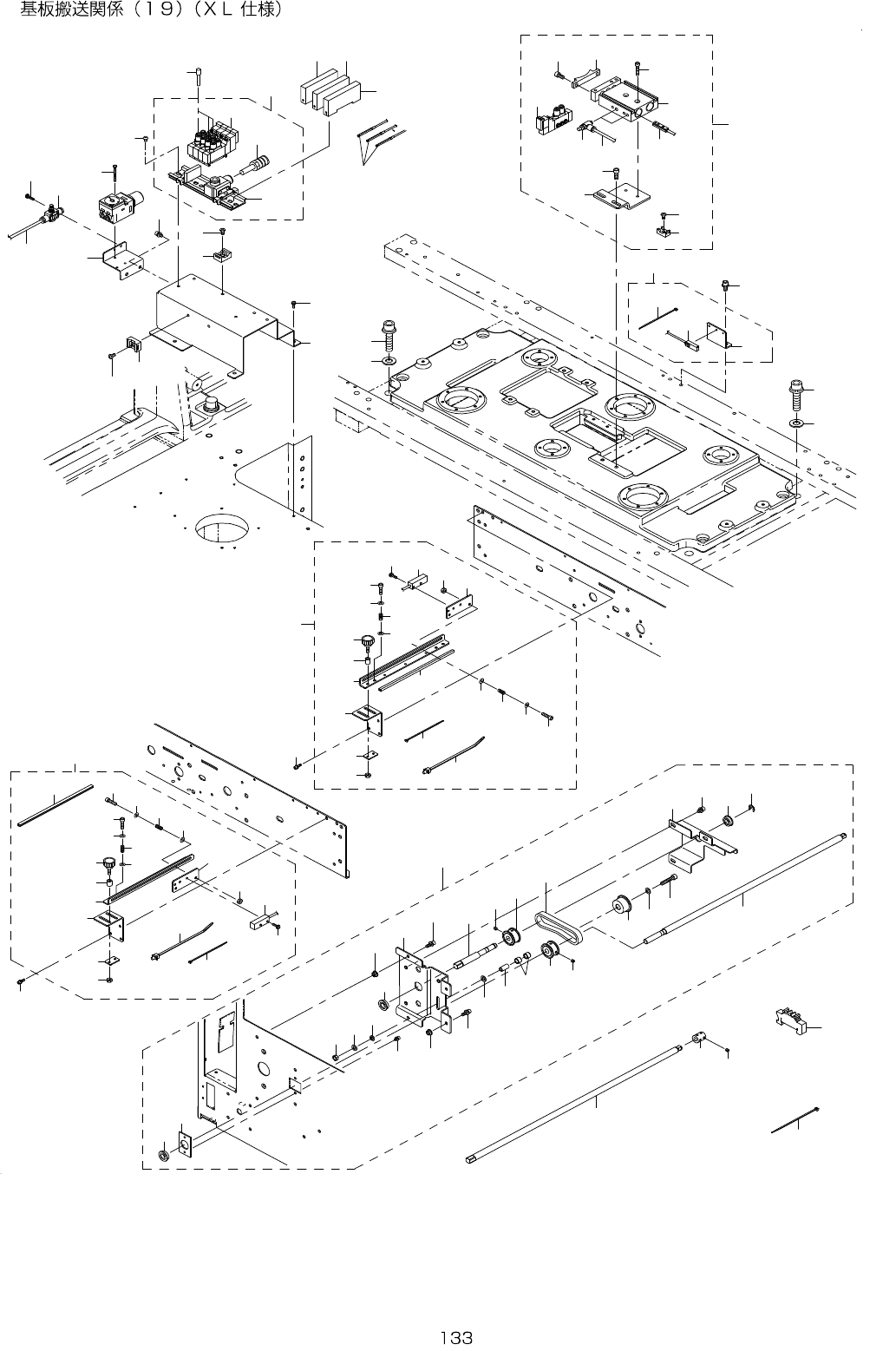

67.PWBCONVEYORCOMPONENTS(19)(TYPEXL)
2 8
2 3
2
1 4
1 5
1
2 1
2 1
1
2 7
1 8
1 2
1 1
4
3
6
7
1 7
1 6
1 6
1 7
8
5
2 6 9
1 0
2 0
2 2
2 5
1 3
3 2
3 4
3 3
3 6
3 5
3 4
3 3
3 7
3 8
3 9
3 9
4 0
4 1
4 1
4 1
4 2
4 3
4 4
4 6
4 7
4 8
2 4
5 3
6 3
5 2
5 4
5 5
5 9
6 1
6 0
6 2
5 6
5 7
5 8
5 1
3 1
3 0
4 8
4 5
4 9
5 0
4 8
2 9
4 0
6 4
6 5
6 7
1 9
6 6
7 4
3 2
1 7
6 8
3 3
3 1
8 2
3 0
2 9
2 8
2 5
2 6
7 8
7 8
7 4
2 7
1 8
1 9
2 7
2 6
2 6
2 5
2 4
2 3
2 2
2 0
2 1
2 6
7 8
7 7
7 7
2 2
7 0
7 2
3 3
8 3
8 1
8 0
7 9
7 9
7 8
7 6
7 5
7 3
7 1
6 9
- -

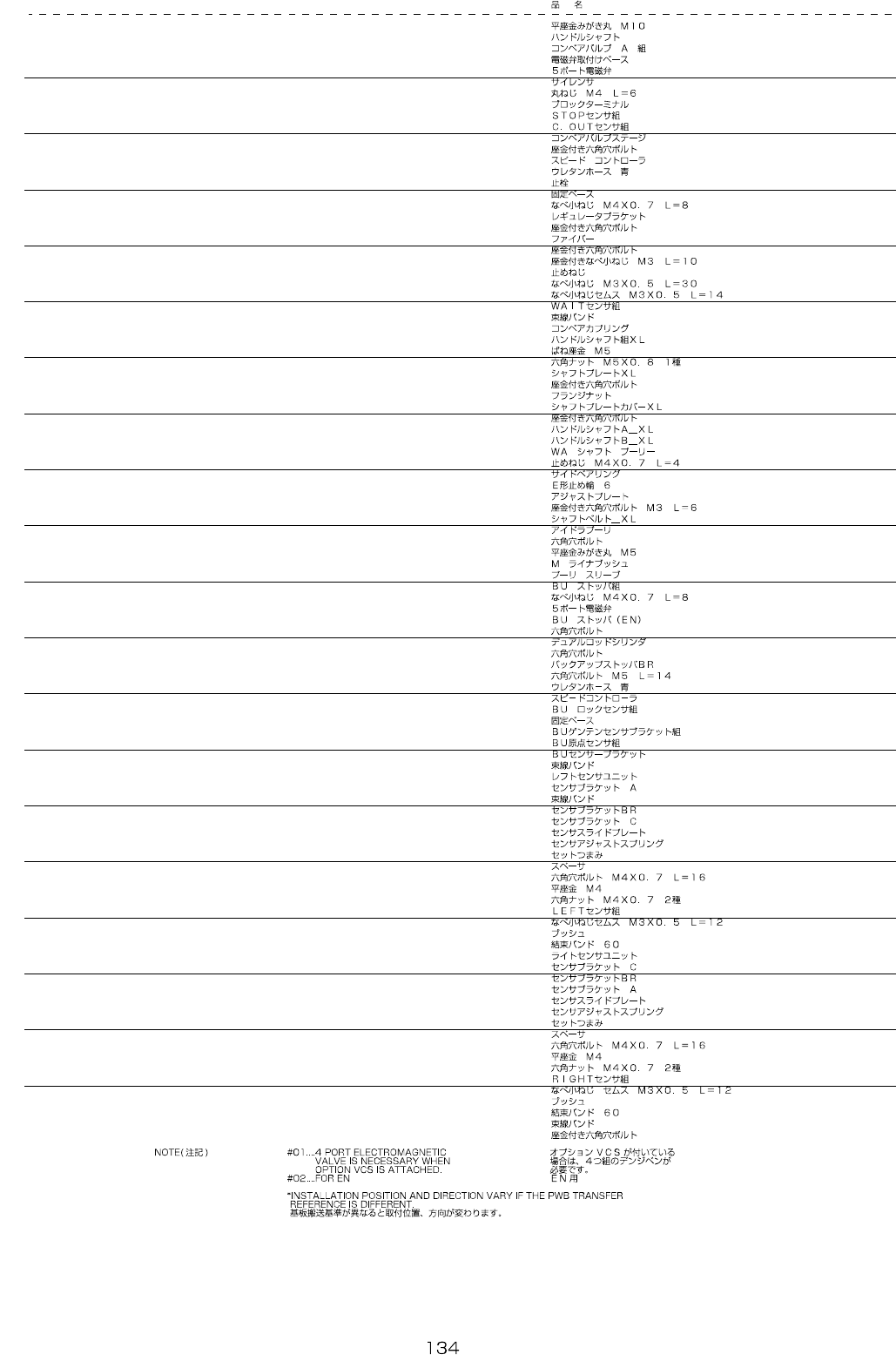

REF.NO NOTE PARTNO DESCRIPTION Qty
1 WP-1052001-SC WASHER10,5X21X2 4
2 400-93920 HANDLESHAFT 1
3 400-00916 MANIFOLDVALVEAASM 1
4 PV-9150050-00 SOLENOIDVALVEINSTALLINGBASE (1)
5
#01
PV-1502093-00 5PORTELECTROMAGNETICVALVE (3)
6 PX-0500030-00 SILENCER (1)
7 SM-3040652-TN SCREWM4L=6 2
8 HK-0691900-0B BLOCKTERMINAL 1
9 400-92571 STOPSENSORASM 1
10 400-92572 C.OUTSENSORASM 1
11 400-94484 CONVEYOR_VALVE_STAGE 1
12 SL-6040892-TN BOLT 2
13 PC-0124010-00 SPEEDCONTROLLER 1
14 BT-0400251-EA TUBEHOSE,BLUE 6
15 PX-5000140-00 PLUG 3
16 HX-0029400-00 FIXEDBASE 7
17 SM-4040801-SC SCREWM4X0.7L=8 7
18 400-94486 REGULATOR_BR 1
19 SL-6051292-TN BOLT 2
20 400-92512 FIBER 3
21 SL-6104042-TN BOLT 4
22 SL-4031091-SC SCREWM3L=10 4
23 SM-8050502-TP SCREWM5L=5 4
24 SM-4033001-SC SCREWM3L=30 2
25 SL-4031481-SC SCREWM3X14 2
26 400-92570 WAITSENSORASM 1
27 EA-9500B01-00 CABLEBAND 40
28 400-13197 CONVEYORCOUPLING 1
29 400-98153 HANDLE_SHAFT_XL_ASM 1
30 WS-0510002-KN SPRINGWASHERM5 (1)
31 NM-6050001-SC NUTM5X0.8TYPE1 (1)
32 400-97778 SHAFT_PLATE_XL (1)
33 SL-6041292-TN SCREW (4)
34 NM-3040520-SF FLANGENUTM4 (4)
35 400-97779 SHAFT_PLATE_COVER_XL (1)
36 SL-6040892-TN BOLT (3)
37 400-97781 HANDLE_SHAFT_A_XL (1)
38 400-97782 HANDLE_SHAFT_B_XL (1)
39 L166E-321-000 WASHAFTPULLEY (2)
40 SM-8040402-TP SCREWM4X0.7L=4 (4)
41 SB-1080002-00 SIDEBEARING
(3)
42 RE-0600000-K0 E-RING6 (1)
43 E2012-721-000 ADJUSTPLATE (1)
44 SL-6030692-TN SCREWM3L=6 (2)
45 400-97780 SHAFT_BELT_XL (1)
46 E2016-715-000 IDLERPULLEY (1)
47 SM-6052502-TN SCREW (1)
48 WP-0531001-SC WASHERM5 (3)
49 E2017-715-000 MLINERBUSH (2)
50 E2018-715-000 PULLEYSLEEVE (1)
51
#02
400-94745 BU_STOPER_ASSY 2
52 SM-4040801-SC SCREWM4X0.7L=8 (1)
53 PV-1502090-00 5PORTSOLENOIDVALVE (2)
54 400-00970 BU_STOPER(EN) (1)
55 SM-6051002-TN BOLT (2)
56 PA-1501011-00 DUALRODCYLINDER (1)
57 SM-6042002-TN BOLT (2)
58 400-94746 BU_STOPPER_BR (1)
59 SM-6051402-TN SCREWM5L=14 (2)
60 BT-0400251-EA TUBEHOSE,BLUE (2.5)
61 PC-0105080-00 SPEEDCONTROLLER (2)
62 400-92574 BULOCKSENSASM (1)
63 HX-0029400-00 FIXEDBASE (1)
64 400-93936 BU_HOME_SENSOR__BRACKET_ASM 1
65 400-92573 BUORGSENSASM (1)
66 E4115-729-000 UNION (1)
67 EA-9500B01-00 CABLEBAND (1)
68 400-93934 LEFT_SENS_UNIT 1
69 400-01077 SENSORBRAKETA (1)
70 HX-0044000-00 CABLEBAND (1)
71 400-17255 SENSORBRACKETBR (1)
72 400-01079 SENSORBRAKETC (1)
73 400-01076 SENSORSLIDEPLATE (1)
74 400-00912 SENSORADJUSTSPRING (3)
75 G6518-880-000 SETPICK-UP (1)
76 400-58815 SPACER (1)
77 SM-6041602-TN SCREWM4X16 (3)
78 WP-0430801-SC WASHERM4 (6)
79 NM-6040002-SE NUTM4X0.7 (3)
80 400-92568 LEFTSENSASM (1)
81 SL-4031291-SC SCREWM3X12 (1)
82 HX-0036700-0A BUSH (0.16)
83 EA-9500B00-00 CABLEBAND (5)
84 400-93935 RIGHT_SENS_UNIT 1
85 400-01079 SENSORBRAKETC (1)
86 400-17255 SENSORBRACKETBR (1)
87 400-01077 SENSORBRAKETA (1)
88 400-01076 SENSORSLIDEPLATE (1)
89 400-00912 SENSORADJUSTSPRING (3)
90 G6518-880-000 SETPICK-UP (1)
91 400-58815 SPACER (1)
92 SM-6041602-TN SCREWM4X16 (3)
93 WP-0430801-SC WASHERM4 (6)
94 NM-6040002-SE NUTM4X0.7 (3)
95 400-92578 RIGHTSENSASM (1)
96 SL-4031291-SC SCREWM3X12 (1)
97 HX-0036700-0A BUSH (0.16)
98 EA-9500B00-00 CABLEBAND (5)
99 HX-0044000-00 CABLEBAND (1)
100 SL-6031092-TN SCREW 4
- -
