- - 8. BASEFRAME ELECTRICA PPARATUSCOMPO NENTS(4) 8 1 2 3 1 3 1 6 1 5 1 4 4 5 1 2 1 1 1 0 6 7 9 1 7 1 8 3 9 3 1 4 0 4 1 2 2 2 3 2 1 2 6 4 9 4 6 4 8 4 6 4 7 2 0 4 2 4 3 3 6 3 7 3 5 4 4 3 3 3 4 2 9 3 0 2 8 2 7 2 4 2 …

100%1 / 284
- -

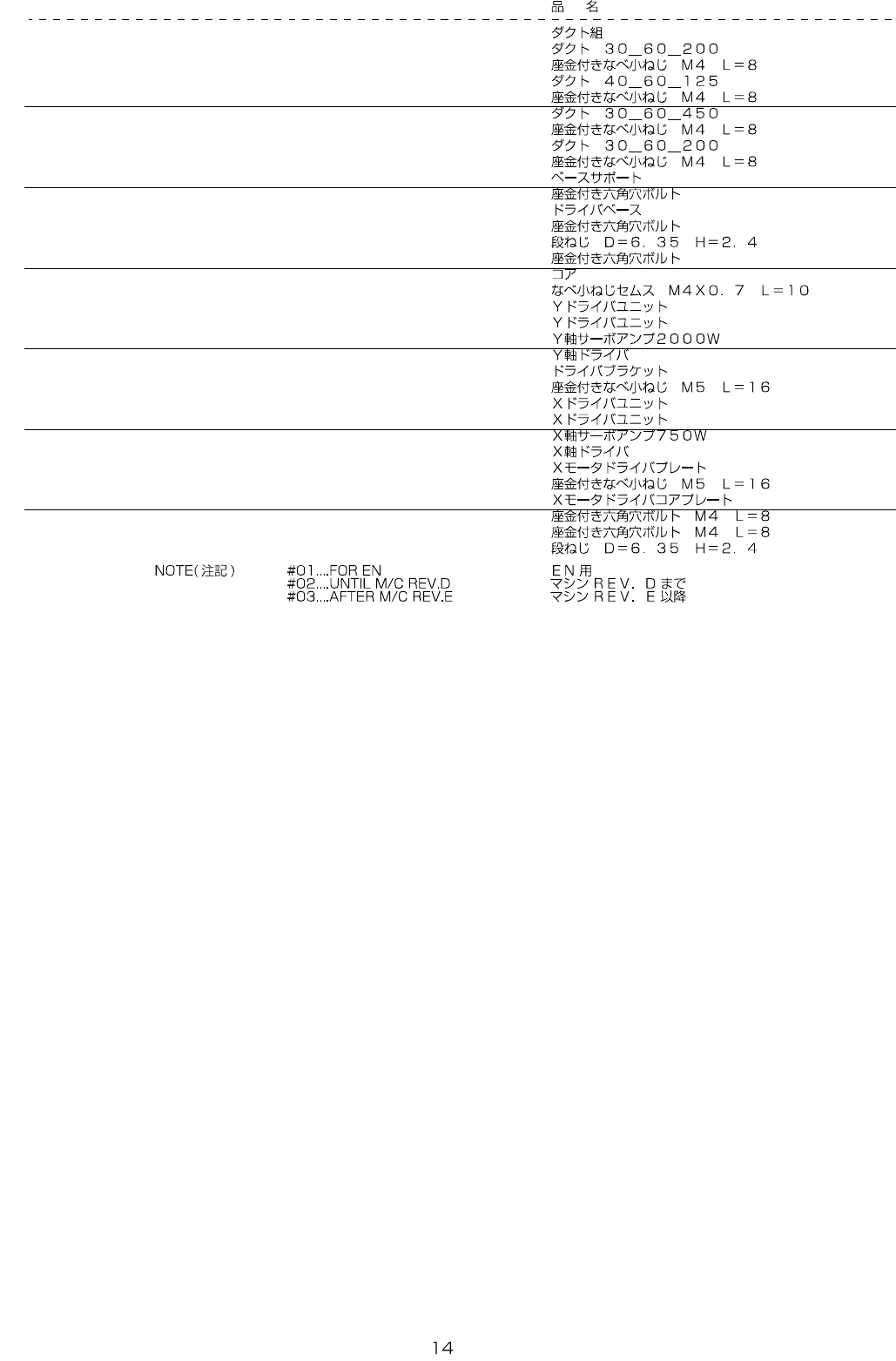

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-14537 DUCTASSY 1
2 400-77404 DUCT30_60_200 (8)
3 SL-4040891-SC SCREWM4L=8 (16)
4 400-32368 DUCT40_60_125 (3)
5 SL-4040891-SC SCREWM4L=8 (6)
6 400-94478 DUCT30_60_450 (3)
7 SL-4040891-SC SCREWM4L=8 (6)
8 400-94479 DUCT30_60_200 (4)
9 SL-4040891-SC SCREWM4L=8 (8)
10 400-94471 BASESUPPORT 2
11 SL-6061492-TN BOLT 4
12 401-14026 DRIVERBASE 1
13 SL-6040892-TN BOLT 2
14 SD-0640246-SP HINGESCREWD=6.35H=2.4 4
15 SL-6040892-TN BOLT 2
16
#01
HN-0015500-00 CORE 3
17
#01
SL-4041091-SC SCREWM4L=10 6
18
#02
401-14752 YDRIVERUNIT 1
19
#03
401-35627 Y_DRIVER_UNIT 1
20
#02
400-44539 SERVOAMP2000W (2)
21
#03
401-29654 YAXISDRIVER (2)
22 401-14038 DRIVERBRACKET (2)
23 SL-4051691-SC SCREWM5L=16 (6)
24
#02
401-14753 XDRIVERUNIT 1
25
#03
401-35628 X_DRIVER_UNIT 1
26
#02
400-44538 SERVOAMP750W (1)
27
#03
401-29652 XAXISDRIVER (1)
28 401-14040 XMOTORDRVPLATE (1)
29 SL-4051691-SC SCREWM5L=16 (3)
30
#01
401-08654 XMOTORDRVCOREPLATE 1
31
#01
SL-6040892-TN SCREWM4L=8 2
32 SL-6040892-TN SCREWM4L=8 2
33 SD-0640246-SP SHOULDERSCREWD=6.35H=2.4 2
- -

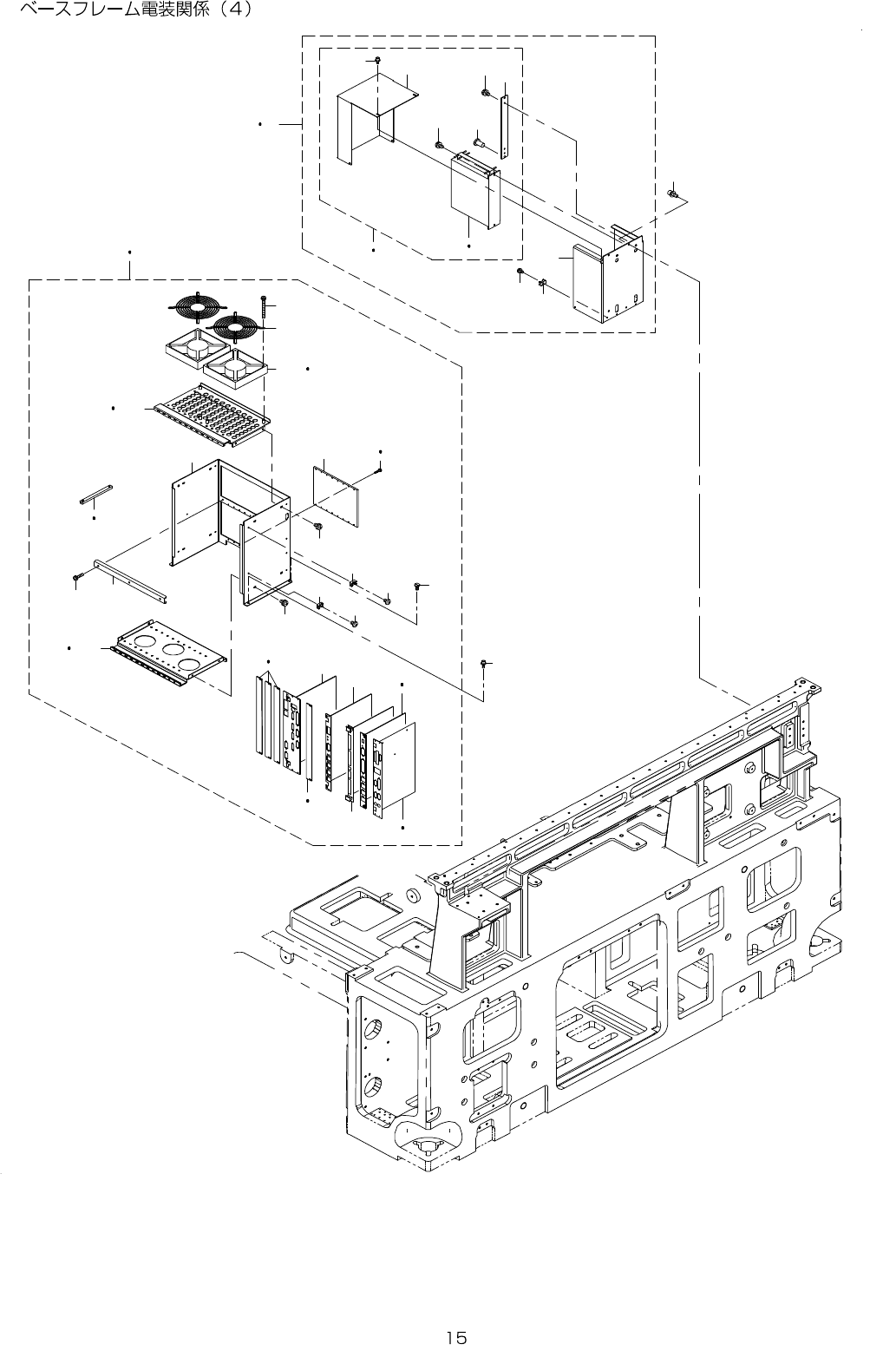

8. BASEFRAMEELECTRICAPPARATUSCOMPONENTS(4)
8
1 2
3
1 3
1 6
1 5
1 4
4 5
1 2
1 1
1 0
6 7
9
1 7 1 8
3 9
3 1
4 0 4 1
2 2 2 3
2 1
2 6
4 9
4 6 4 8
4 6 4 7
2 0
4 2 4 3
3 6 3 7
3 5
4 4
3 3 3 4
2 9 3 0
2 8
2 7
2 4 2 5
3 1
4 5
4 5
3 8
3 8
3 2
1 9
- -

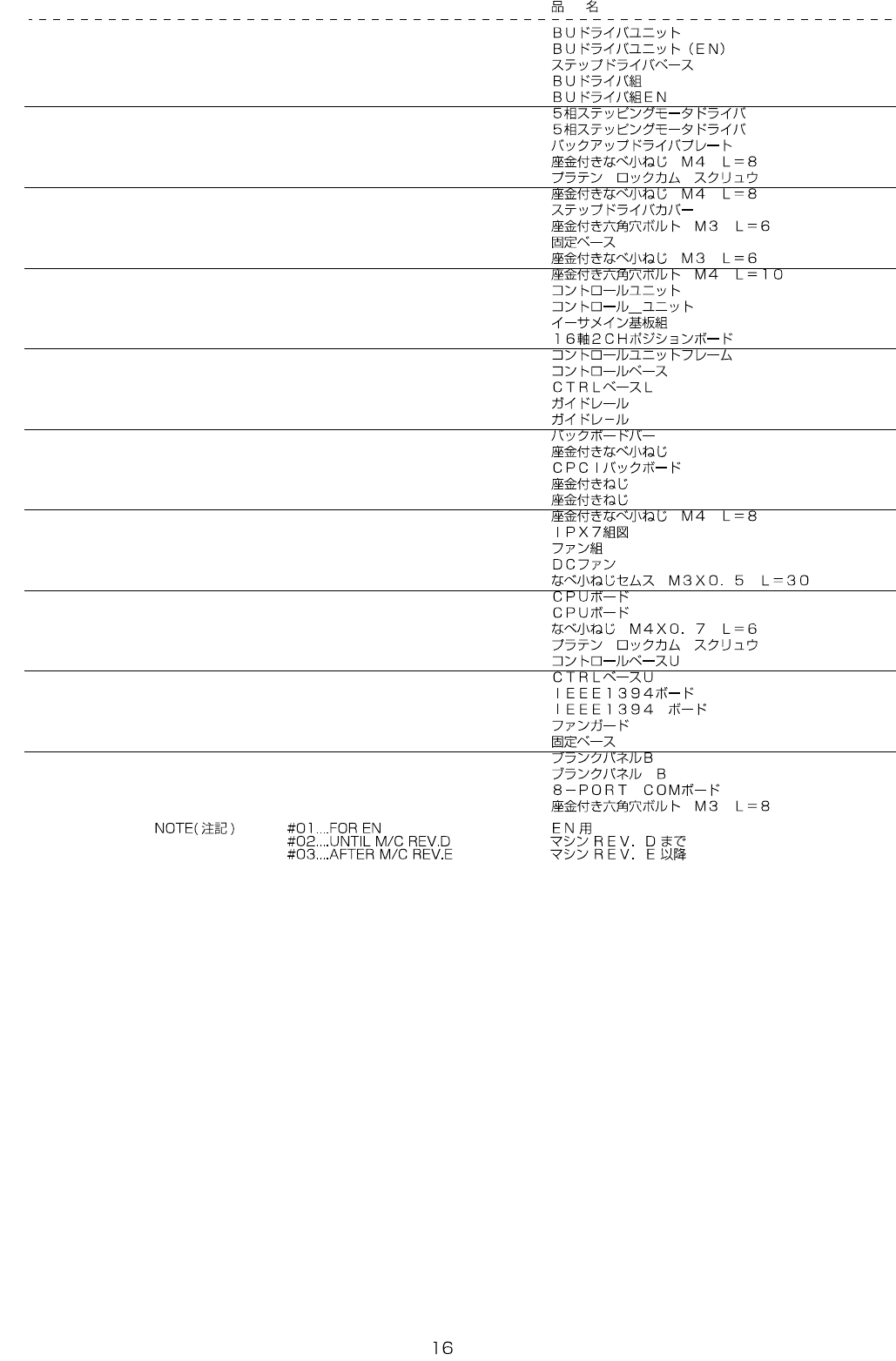

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-14754 BUDRIVERUNIT 1
2
#01
401-14755 BUDRIVERUNIT(EN) 1
3 401-14030 STEPDRVBASE (1)
4 401-13995 BUDRIVERASSY (1)
5
#01
400-94918 BUDRIVERASSYEN (1)
6 HX-0042000-00 5PHASESTEPDRIVER (1)
7
#01
HX-0054500-00 5PHASESTEPDRIVER (1)
8 400-00534 BACKUPDRIVPLATE (1)
9 SL-4040891-SC SCREWM4L=8 (3)
10 E1038-871-000 PLATENLOCKCAMSCREW (1)
11 SL-4040891-SC SCREWM4L=8 (2)
12 401-14029 STEPDRVCOVER (1)
13 SL-6030692-TN SCREWM3L=6 (4)
14 HX-0029400-00 FIXEDBASE (4)
15 SL-4030691-SC SCREWM3L=6 (4)
16 SL-6041092-TN SCREWM4L=10 3
17
#02
401-14757 CTRLUNIT 1
18
#03
401-35630 CTRL_UNIT 1
19 401-49647 ETHER-MAINPCBASM (1)
20 400-44540 16AXIS2CHSERVOCONTROLLER (1)
21 401-14039 CTRLUNITFRAME (1)
22
#02
401-08564 CTRLBASE (1)
23
#03
401-34636 CTRL_BASE_L (1)
24
#02
HX-0002600-00 GUIDERAIL (10)
25
#03
HX-0002600-00 GUIDERAIL (14)
26 400-94396 BACKBORDBAR (1)
27 SL-4031491-SC SCREWM3X14 (3)
28 400-48002 CPCIBACKBOARD (1)
29
#02
SL-4851091-SC SCREW (26)
30
#03
SL-4851091-SC SCREW (24)
31 SL-4040891-SC SCREWM4L=8 (8)
32 400-71300 IPX7ASM (1)
33
#02
400-92440 BASICFANASM (2)
34
#03
401-33768 DCFAN (2)
35 SL-4033091-SC SCREWM3L=30 (4)
36
#02
401-13723 CPUBOARD (1)
37
#03
401-35432 CPUBOARD (1)
38 SM-4040601-SC SCREWM4X0.7L=6 (2)
39 E1038-871-000 PLATENLOCKCAMSCREW (2)
40
#02
401-08565 CTRLBASEU (1)
41
#03
401-34635 CTRL_BASE_U (1)
42
#02
400-48003 IEEE1394BOARD (1)
43
#03
401-50021 IEEE1394BOARD (1)
44 HM-0003300-30 FANGUARD (2)
45 HX-0029400-00 FIXEDBASE (2)
46
#02
400-32319 BLANKPANELB (4)
47
#03
400-32319 BLANKPANELB (3)
48
#03
401-35433 8-PORTCOMBOARD (1)
49 SL-6030892-TN SCREWM3L=8 2
