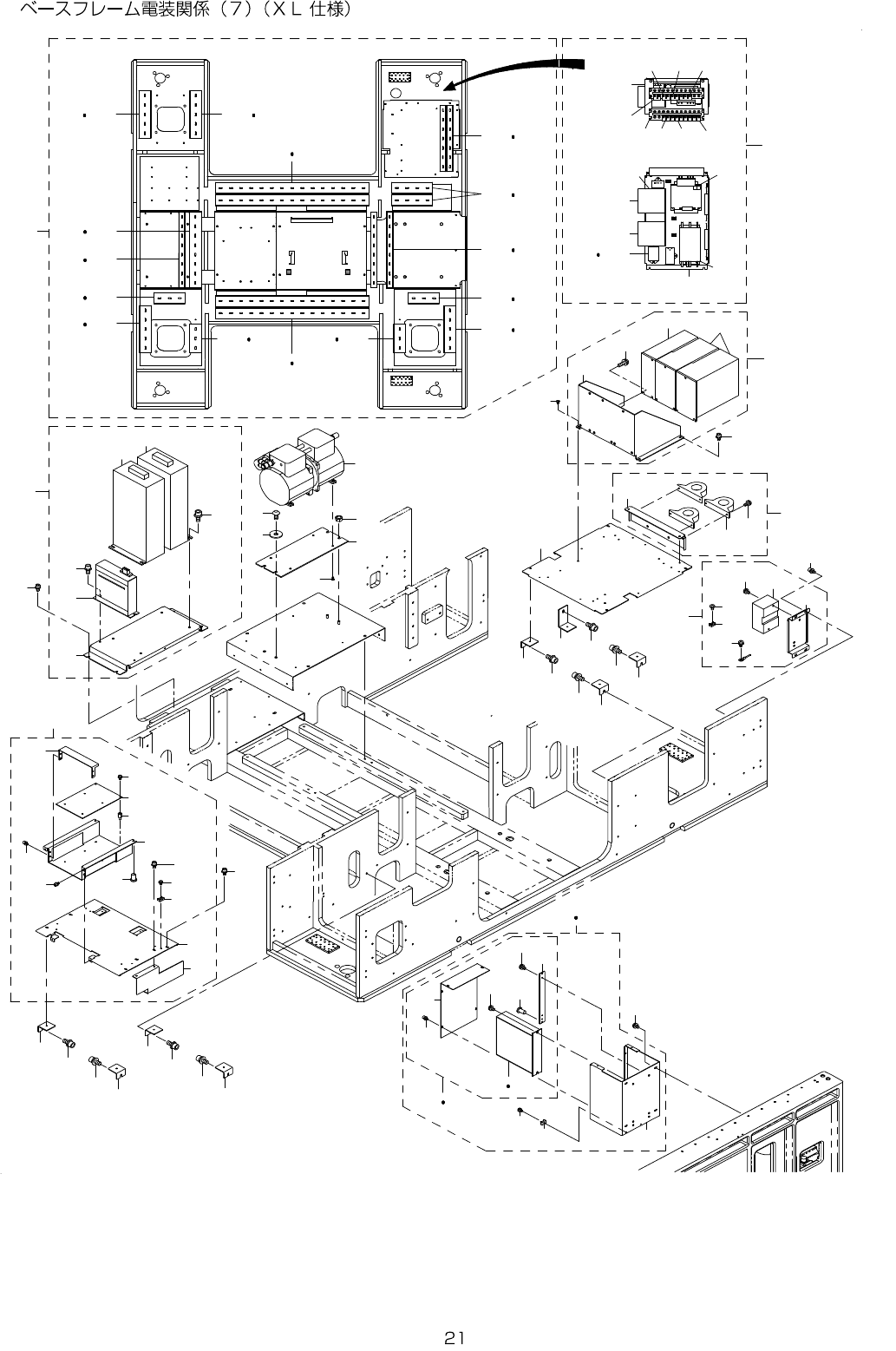

11.BASEFRAMEELECTRICAPPARATUSCOMPONENTS(7)(TYPEXL)
2
1
3
4
2 1 2 2
2 9 3 0
2 9 3 0 2 9 3 0
2 1 2 2 2 1 2 2
2 1 2 2
2 9 3 0
2 3 2 4
2 3 2 4
3 3 3 4
2 5 2 6
2 5 2 6
2 7 2 8
3 1 3 2
6 0
6 0
5 9
6 0
5 9
5 9
6 0
2 0
6 3
6 2
5 0
4 7
5 35 2
5 2
5 2
5 3
5 35 1
5 6
5 7
5 8
5 4 5 5
5 7
* * * *
* *
* *
* *
* *
* *
* *
* *
* *
4 8
5 3
4 9
4 1
3 7
3 6
4 0
3 8
4 6
4 5
5
4 2
3 9
4 4
1 9
1 7
1 5
1 6
1 6
1 8
1 4
1 3
6 0
6 1
5 9
6 0
5 9
6 0
6 0
5 9
5 9
6 7
7 0
7 4
7 3
6 5
6 6
7 8
7 1
7 2
6 4
7 5
7 6
7 7
6 9
6 8
3 5
6
1 2
1 1
4 3
1 0
9
8
7
9 3
9 4
8 2 8 3
9 0
9 1
8 9
8 8
8 6
8 4 8 5
8 7
7 9 8 0
8 1
9 2
- -

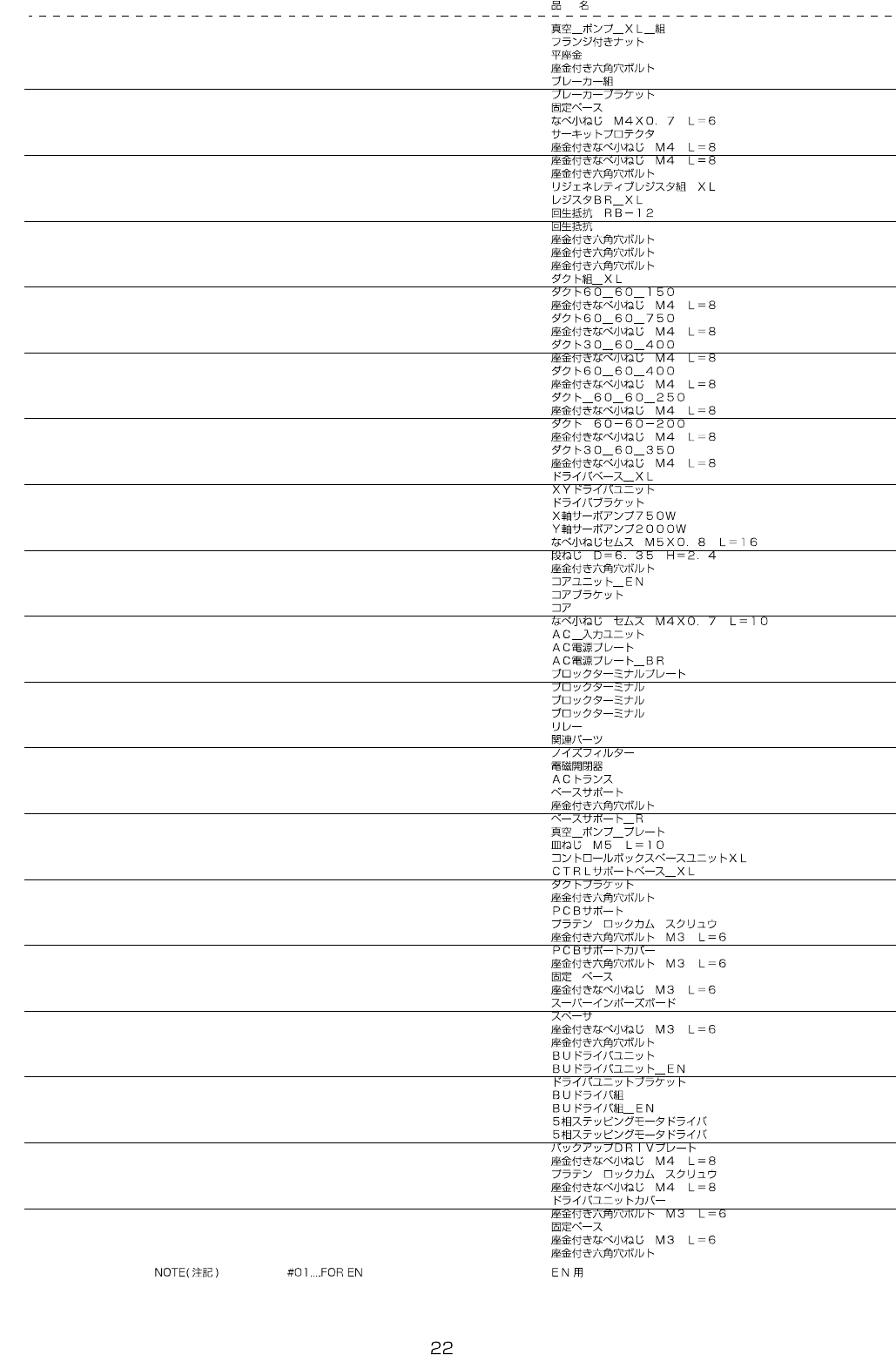

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-16654 VACUUM_PUMP_XL_ASM 1
2 NM-3060810-SF NUTM6 2
3 WP-0651646-SC WASHER 2
4 SL-6061492-TN BOLT 2
5 400-94707 BREAKERASSY 1
6 400-94473 BREAKERBRACKET (1)
7 HX-0029400-00 FIXEDBASE (1)
8 SM-4040601-SC SCREWM4X0.7L=6 (1)
9 HA-0063300-00 CIRCUITPROTECTOR (1)
10 SL-4040891-SC SCREWM4L=8 (2)
11 SL-4040891-SC SCREWM4L=8 (4)
12 SL-6040892-TN BOLT 4
13 400-98152 REGENERATIVERESISTOR_ASM_XL 1
14 400-94498 REGISTOR_BR_XL (1)
15 400-54885 REGENERATIVERESISTOR (1)
16 400-92658 REGENERATIVEREGISTOR (2)
17 SL-6051292-TN BOLT (2)
18 SL-6061492-TN BOLT (4)
19 SL-6040892-TN BOLT 4
20 400-98147 DUCTASSYXL 1
21 400-94365 DUCT_60_60_150 (4)
22 SL-4040891-SC SCREWM4L=8 (8)
23 400-94366 DUCT_60_60_750 (4)
24 SL-4040891-SC SCREWM4L=8 (8)
25 400-94367 DUCT_30_60_400 (3)
26 SL-4040891-SC SCREWM4L=8 (6)
27 400-94368 DUCT_60_60_400 (1)
28 SL-4040891-SC SCREWM4L=8 (2)
29 400-94476 DUCT_60_60_250 (4)
30 SL-4040891-SC SCREWM4L=8 (8)
31 400-77201 DUCT60-60-200 (2)
32 SL-4040891-SC SCREWM4L=8 (4)
33 400-94369 DUCT_30_60_350 (2)
34 SL-4040891-SC SCREWM4L=8 (4)
35 400-94496 DRIVER_BASE_XL 1
36 400-94713 XYDRIVERUNIT 1
37 400-94394 DRIVER_BR (1)
38 400-44538 SERVOAMP750W (1)
39 400-44539 SERVOAMP2000W (2)
40 SL-4051691-SC SCREWM5X0.8L=16 (9)
41 SD-0640246-SP HINGESCREWD=6.35H=2.4 2
42 SL-6040892-TN BOLT 2
43
#01
400-94932 CORE_UNIT_EN 1
44 400-94697 CORE_BR (1)
45 HN-0015500-00 CORE (3)
46 SL-4041091-SC SCREWM4L=10 (6)
47 400-94708 ACINPUTUNIT 1
48 400-94416 ACPOWERPLATE (1)
49 400-94418 AC_POWER_PLATE_BR (1)
50 400-94417 BLOCK_TERMINAL_PLATE (1)
51 HK-0699501-10 BLOCKTERMINAL (2)
52 HK-0699900-20 BLOCKTERMINAL (3)
53 HK-0699900-30 BLOCKTERMINAL (4)
54 HB-0010200-0A RELAY (1)
55 HB-0011000-10 RELAYCOVER (1)
56 HN-0023700-00 NOISEFILTER (1)
57 HA-0062900-00 MAGNETICCONTACTOR (2)
58 400-29567 ACTRANCE (1)
59 400-94471 BASE_SUPPORT 7
60 SL-6061492-TN BOLT 8
61 400-94472 BASE_SUPPORT_R (1)
62 400-99524 VAC_PUMP_PLATE (1)
63 SM-1051052-TN PLATESCREWM5L=10 (4)
64 400-98150 CTRLBOXBASEUNITXL 1
65 400-71380 CTRL_SUPPORT_BASE_XL (1)
66 400-94406 DUCT_BR (1)
67 SL-6040892-TN BOLT (2)
68 400-94404 PCB_SUPPORT (1)
69 E1038-871-000 PLATENLOCKCAMSCREW (2)
70 SL-6030692-TN SCREWM3L=6 (2)
71 400-94405 PCB_SUPPORT_COVER (1)
72 SL-6030692-TN SCREWM3L=6 (4)
73 HX-0029400-00 FIXEDBASE (4)
74 SL-4030691-SC SCREWM3L=6 (4)
75 400-48082 SUPERINPAUSEBOARD (1)
76 HX-0035400-0N SPACER (6)
77 SL-4030691-SC SCREWM3L=6 (6)
78 SL-6040892-TN BOLT 4
79 400-94884 BUDRIVERUNIT 1
80
#01
400-94917 BUDRIVERUNITEN 1
81 400-94350 DRIVER_UNIT_BR (1)
82 400-94885 BUDRIVERASSY (1)
83
#01
400-94918 BUDRIVERASSYEN (1)
84 HX-0042000-00 5PHASESTEPDRIVER (1)
85
#01
HX-0054500-00 5PHASESTEPDRIVER (1)
86 400-00534 BACKUPDRIVPLATE (1)
87 SL-4040891-SC SCREWM4L=8 (3)
88 E1038-871-000 PLATENLOCKCAMSCREW (1)
89 SL-4040891-SC SCREWM4L=8 (2)
90 400-94351 DRIVER_UNIT_COVER (1)
91 SL-6030692-TN SCREWM3L=6 (4)
92 HX-0029400-00 FIXEDBASE (1)
93 SL-4030691-SC SCREWM3L=6 (1)
94 SL-6040892-TN BOLT 4
- -
12.BASEFRAMEELECTRICAPPARATUSCOMPONENTS(8)(TYPEXL)
5
8
3
4
6
7
8
2
1 2
1 6
1 2
1 1
1 1
9
1 0
1 3
1 9
2 0
2 1
2 2
2 3
2 3
2 3
1 8
2 5
2 4
2 6
1 7
3 6
3 7
3 9
4 0
3 9
4 0
4 1
4 1
4 2
3 5
4 6
4 6
4 8
4 4
4 9
4 3
5 0
5 3
5 4
5 7
5 6
4 7
4 5
5 5
5 6
5 8
5 9
1 4
2 8
2 9
3 4
3 2
3 1
3 3
3 1
3 3
3 2
5 1
3 0
3 8
1 5
6 6
6 6
8 0
8 1
7 6
7 5
7 7
7 8
A
6 5
7 3
7 4
6 5
7 3
7 1
7 2
6 8
6 4
6 1
6 3
6 6
7 8
6 2
7 9
6 8
6 0
6 5
7 3
7 2
7 1
6 9
7 0
6 7
1
A
2 7
5 2
