- - 26. COVERCOM PONENTS(9) 1 9 1 9 1 5 1 6 1 9 4 4 1 3 5 3 5 4 4 5 4 3 7 8 5 7 5 2 5 1 5 0 4 9 4 8 4 7 4 6 1 3 1 4 1 3 1 4 1 9 1 0 1 2 2 0 4 6 1 9 1 9 1 9 1 7 1 8 1 5 1 6 1 9 1 0 1 2 7 9 4 6 2 0 1 7 1 8 1 9 1 9 7 9 6…

100%1 / 284
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1
#03
401-14855 BOTTOMCOVER(M)ASM 1
2
#07
401-14847 BOTTOMCOVER(L)ASM 1
3
#04
401-35772 COVER_BOTTOM(M)_ASM 1
4
#08
401-35773 COVER_BOTTOM(L)_ASM 1
5 400-01512 COVERSTUDYF (3)
6 SL-6061292-TN SCREWM6L=12 (4)
7 SL-3061232-TN SCREWM6L=12 (5)
8 HM-0010100-10 FILTER (2)
9 SL-4030891-SC SCREWM3L=8 (4)
10 400-00550 FVBRACKET (1)
11 PV-0152120-00 FINGERVALVE (1)
12 PJ-0252000-03 PLUG (1)
13 SL-6032542-TN SCREWM3L=25 (2)
14 SL-6041092-TN SCREWM4L=10 (2)
15 HX-0029400-00 FIXEDBASE (2)
16 SM-4040601-SC SCREWM4X0.7L=6 (2)
17
#05
401-14005 COVERSBRM (1)
18
#06
401-35774 COVER_SBR_M (1)
19 400-01512 COVERSTUDYF (2)
20 SL-6061292-TN SCREWM6L=12 (4)
21 SL-3061232-TN SCREWM6L=12 (4)
22 HM-0003300-30 FANGUARD (3)
23 SL-4030891-SC SCREWM3L=8 (6)
24 401-10743 COVERFBL (1)
25 SL-3061232-TN SCREWM6L=12 (4)
26 401-10744 COVERFBR (1)
27 SL-3061232-TN SCREWM6L=12 (4)
28
#01
401-10745 COVERRBL (1)
29
#02
401-11833 COVERRBLL (1)
30 SL-3061232-TN SCREWM6L=12 (4)
31
#01
401-14004 COVERRBR (1)
32
#02
401-11834 COVERRBRL (1)
33 SL-3061232-TN SCREWM6L=12 (4)
34
#02
401-11839 BANKCOVERRLBRU (1)
35
#02
SL-3061232-TN SCREWM6L=12 (4)
36
#02
401-11840 BANKCOVERRLBRB (1)
37
#02
SL-6061292-TN SCREWM6L=12 (2)
38
#02
SM-6062502-TN SCREW (3)
39
#02
NM-6060001-SC NUTM6X1TYPE1 (3)
40 400-93785 ASMDRAINTANK (1)
41 400-16815 DRAINTANK (1)
42 400-16814 DRAINTANKSTAY (1)
43 400-93721 DTSTAYBR (1)
44 SL-6040892-TN BOLT (4)
45 PJ-3081000-01 UNIONY (1)
46 SL-6042592-TN SCREW (1)
47 PJ-3090400-03 REDUCER4-10 (1)
48 BT-0400251-EA TUBEHOSE,BLUE (0.16)
49 401-14003 COVERSBLM (1)
50 401-10759 COVERSBSUPPORT (2)
51 401-10759 COVERSBSUPPORT (2)
- -

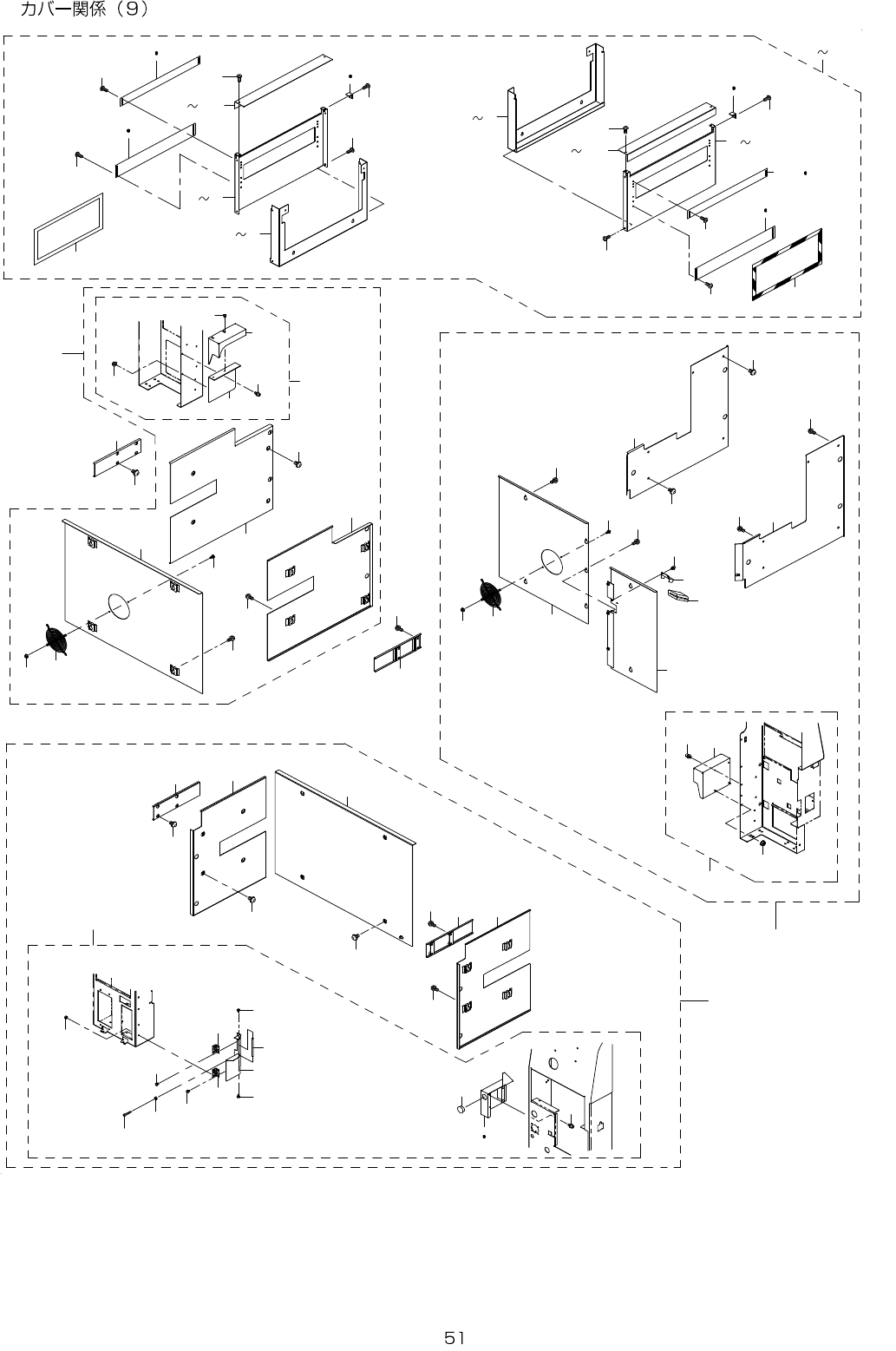

26.COVERCOMPONENTS(9)
1 9
1 9
1 5 1 6
1 9
4 4
1 3
5 3
5 4
4 5
4 3
7 8
5 7
5 2
5 1
5 0
4 9
4 8
4 7
4 6
1 3 1 4
1 3 1 4
1 9
1 0 1 2
2 0
4 6
1 9
1 9
1 9
1 7 1 8
1 5 1 6
1 9
1 0 1 2
7 9
4 6
2 0
1 7 1 8
1 9
1 9
7 9
6 0
2 1
3 0
7 4
7 7
7 6
7 5
6 7
6 7
6 6
7 2
7 1
7 0
6 9
6 8
6 5
6 4
6 4
6 3
6 2
6 2
6 1
4 3
7 8
7 3
4 1
4 0
3 9
3 3
2 9
2 8
2 8
2 6
2 4
2 2
4 2
2 9
2 5
2 3
2 7
5 8
5 6
5 5
5 9
3 4
3 5
3 6
3 6
3 7
3 7
3 8
4 0
3 1 3 2
- -

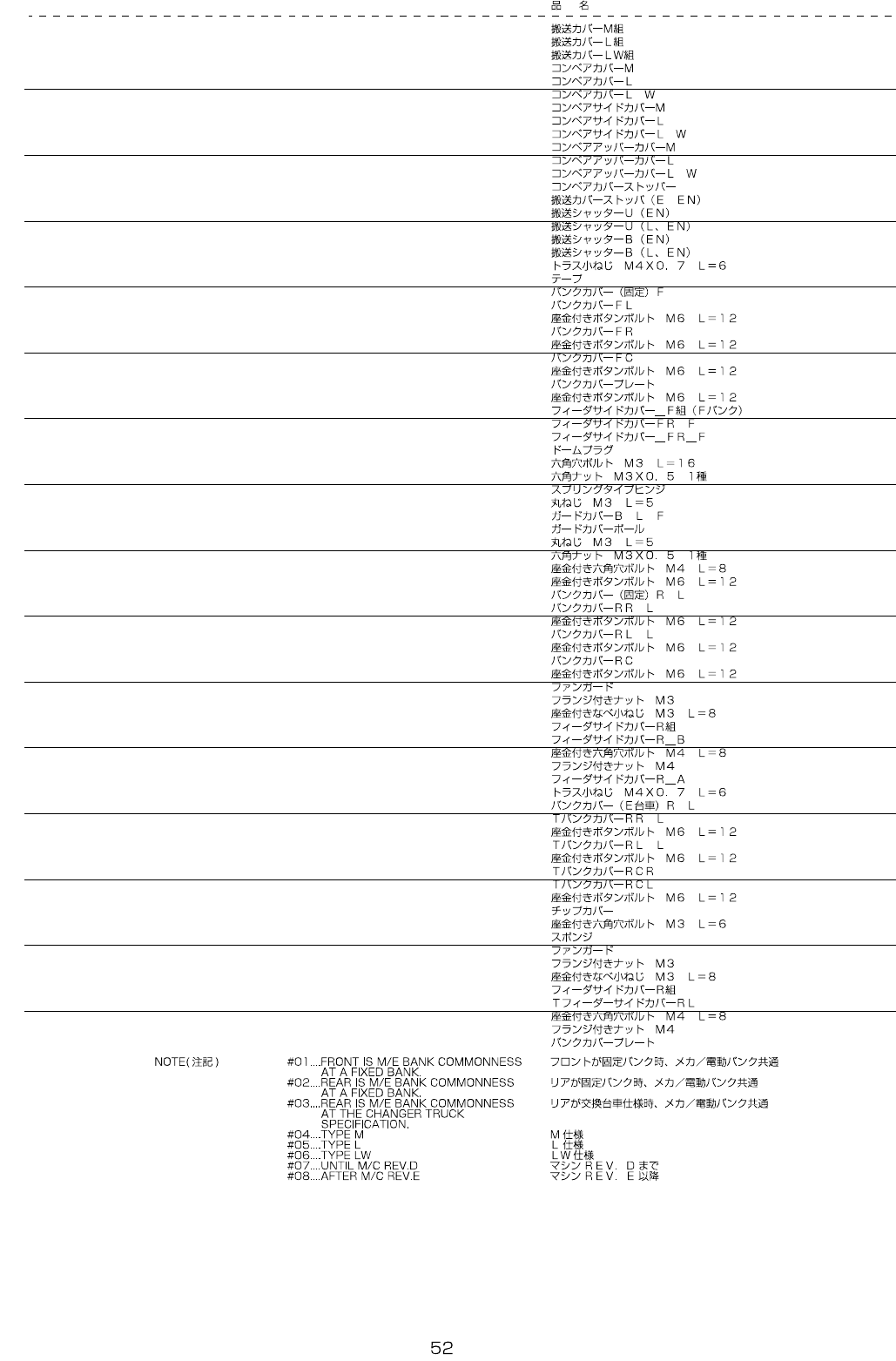

REF.NO NOTE PARTNO DESCRIPTION Qty
1
#04
401-15000 CONVEYORCOVERMASM 1
2
#05
401-15001 CONVEYORCOVERLASM 1
3
#06
401-15002 CONVEYORCOVERLWASM 1
4
#04
401-11853 CONVEYORCOVERM (2)
5
#05
401-14573 CONVEYORCOVERL (2)
6
#06
401-14576 CONVEYORCOVERLW (2)
7
#04
401-11854 CONVEYORSIDECOVERM (2)
8
#05
401-14574 CONVEYORSIDECOVERL (2)
9
#06
401-14577 CONVEYORSIDECOVERLW (2)
10
#04
401-14571 CONVEYORUPPERCOVERM (2)
11
#05
401-14575 CONVEYORUPPERCOVERL (2)
12
#06
401-14578 CONVEYORUPPERCOVERLW (2)
13 401-14572 CONVEYORCOVERSTOPPER (2)
14
#06
400-27245 CONVEYORCOVERSTOPPER(EEN) (2)
15
#04
400-01480 CONVEYORSHUTTERU(EN) (2)
16 400-01484 CONVEYORSHUTTERU(LEN) (2)
17
#04
400-01481 CONVEYORSHUTTERB(EN) (2)
18 400-01485 CONVEYORSHUTTERB(LEN) (2)
19 SM-0040601-SC SCREWM4X0.7L=6 (38)
20 400-01490 TAPE (2)
21
#01
401-14611 BANKCOVER(FIXED)F 1
22 401-11814 BANKCOVERFL (1)
23 SL-3061232-TN SCREWM6L=12 (4)
24 401-11815 BANKCOVERFR (1)
25 SL-3061232-TN SCREWM6L=12 (4)
26 401-10749 BANKCOVERFC (1)
27 SL-3061232-TN SCREWM6L=12 (4)
28 401-11816 BANKCOVERPLATE (2)
29 SL-3061232-TN SCREWM6L=12 (8)
30 401-38682 FEEDER_SIDE_COVER_F_ASM(F_BANK) (1)
31
#08
401-34628 FEEDER_SIDE_COVER_FR_F (1)
32
#07
401-14892 FEEDER_SIDE_COVER_FR_F (1)
33 HX-0032600-0B GROMMET (1)
34 SM-6031602-TN SCREWM3L=16 (1)
35 NM-6030001-SC NUTM3X0.5TYPE1 (1)
36 401-13966 SPRINGTYPEHINGE (2)
37 SM-3030552-TN SCREWM3L=5 (8)
38 401-14891 GUARDCOVERBLF (1)
39 401-14298 GUARDCOVERPOLE (1)
40 SM-3030552-TN SCREWM3L=5 (2)
41 NM-6030001-SC NUTM3X0.5TYPE1 (4)
42 SL-6040892-TN SCREWM4L=8 (4)
43 SL-3061232-TN SCREWM6L=12 8
44
#02
401-14613 BANKCOVER(FIXED)RL 1
45 401-11820 BANKCOVERRRL (1)
46 SL-3061232-TN SCREWM6L=12 (4)
47 401-11819 BANKCOVERRLL (1)
48 SL-3061232-TN SCREWM6L=12 (4)
49 401-10750 BANKCOVERRC (1)
50 SL-3061232-TN SCREWM6L=12 (4)
51 HM-0003300-30 FANGUARD (1)
52 NM-3034000-SF FLANGENUTM3 (2)
53 SL-4030891-SC SCREWM3L=8 (2)
54 401-14861 FEEDERSIDECOVERRASM (1)
55 401-21064 FEEDER_SIDE_COVER_R_B (1)
56 SL-6040892-TN SCREWM4L=8 (2)
57 NM-3040520-SF FLANGENUTM4 (2)
58 401-21062 FEEDER_SIDE_COVER_R_A (1)
59 SM-0040601-SC SCREWM4X0.7L=6 (2)
60
#03
401-14618 BANKCOVER(ETORROLY)RL 1
61 401-11837 TBANKCOVERRRL (1)
62 SL-3061232-TN SCREWM6L=12 (5)
63 401-11836 TBANKCOVERRLL (1)
64 SL-3061232-TN SCREWM6L=12 (5)
65 401-10758 TBANKCOVERRCR (1)
66 401-10757 TBANKCOVERRCL (1)
67 SL-3061232-TN SCREWM6L=12 (7)
68 400-93710 CHIPCOVER (1)
69 SL-6030692-TN SCREWM3L=6 (2)
70 400-80833 SPONGE (0.5)
71 HM-0003300-30 FANGUARD (1)
72 NM-3034000-SF FLANGENUTM3 (2)
73 SL-4030891-SC SCREWM3L=8 (2)
74 401-14861 FEEDERSIDECOVERRASM (1)
75 400-97765 TFEEDERSIDECOVERRL (1)
76 SL-6040892-TN SCREWM4L=8 (2)
77 NM-3040520-SF FLANGENUTM4 (2)
78 401-11816 BANKCOVERPLATE 2
