B oard 5 Ass’y 114 Page SAMSUNG TECHWIN
Part List
B
oard 4 Ass’y
113 Page
SAMSUNG TECHWIN
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
3
4
5
6
7
8
2
1
2
1
1
1
1
1
J2101325
J4802006A
J5001002A
J4901002A
J4801008A
J5101012A
J9800397
J2100365
BRACKET HARD DISK [0133-614106]
GRAPHIC CARD [VGA SIGMA STANDARD LT2]
MODULE RAM [168PIN 32MB]
CPU [PENTIUM 166MHZ WITH MMX]
MOTHER BOARD [SL-54U5]
HARD DISK DRIVER [FIRE BALL LCT15 7.0]
POWER GOOD Ver.2 BOARD ASS'Y
PC ISA BUS I/F BOARD ASS'Y
0133-614406-P1
VGA SIGMA STANDARD LT2
168PIN 32MB
PENTIUM 166MHZ WITH MMX
SL-54U5
FIRE BALL LCT15 7.0
C30-Z2-208-00-20/PS
C30-Z2-107-00-20/PS
B
oard 5 Ass’y
114 Page
SAMSUNG TECHWIN

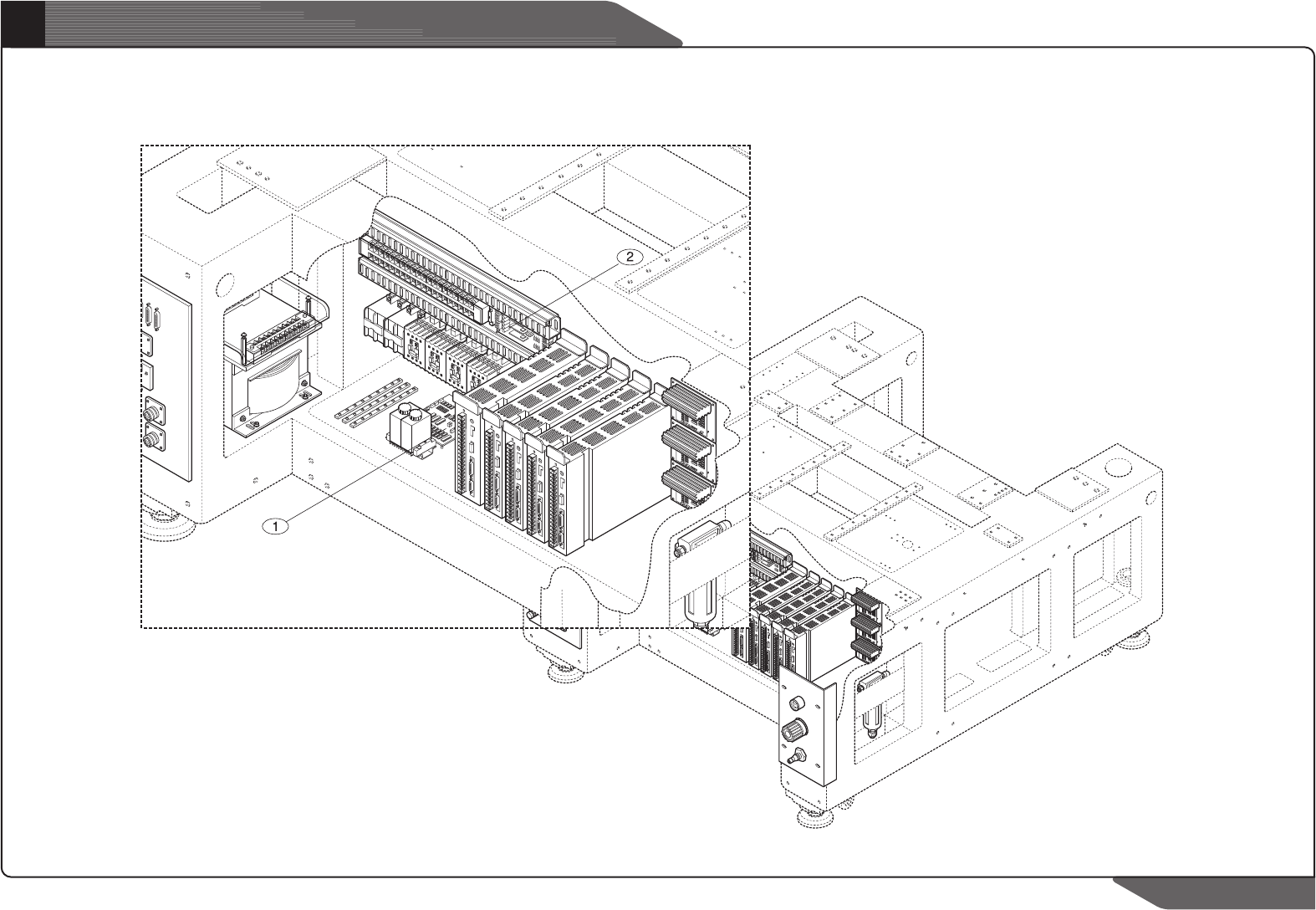

Part List
B
oard 5 Ass’y
115 Page
SAMSUNG TECHWIN
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
1
1
J9801541
J3152006A
CONVEYOR PACK BOARD ASS'Y
STEP MOTOR DRIVER [PMM-BD-4502-1]
30-CONV3-10 BOARD(2)
PMM-BD-4502-1
