CP40LV Technical Reference_CS_Ver - 第118页
D evice Ass’y 118 Page SAMSUNG TECHWIN
B
oard Ass’y
117 Page
SAMSUNG TECHWIN
Part Photo
J4901008A_AS CPU[INTEL CELERON733Mhz]
J9060097A SSA-VIS-FIX-IF ASS'Y [SSA-VISION-FIX-IF]
J9060022B VME IO DPRAM VERSION 2 BOARD ASSY[C30-Z]
J9060149A
40 VIS BOARD REV 1.0 [J9060149A]
J9060093A CA IF BOARD ASS'Y
J9060157B VME AXIS(2) BOARD ASSY(SMD) [J9060157B]
D
evice Ass’y
118 Page
SAMSUNG TECHWIN
Part List
D
evice Ass’y
119 Page
SAMSUNG TECHWIN

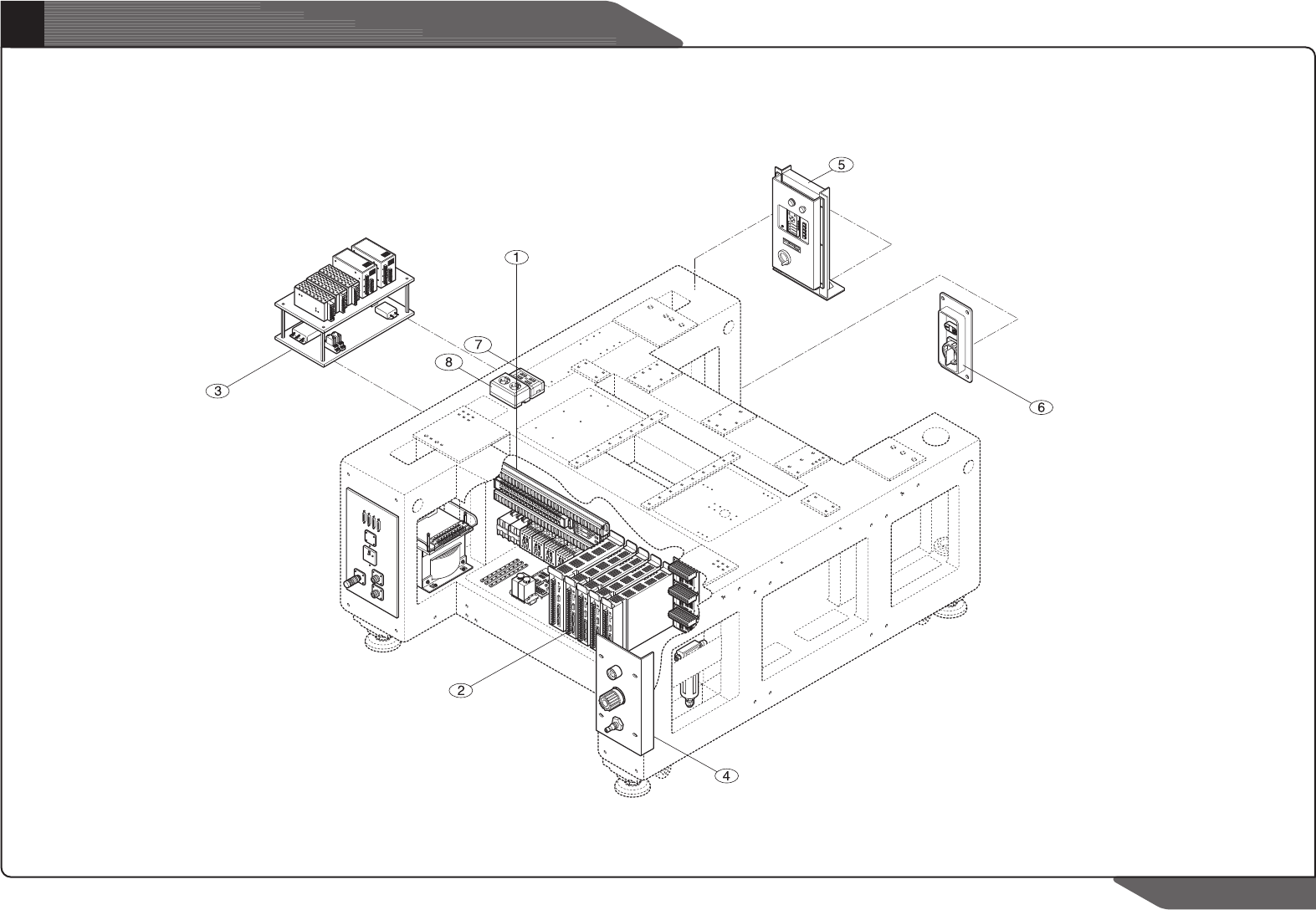

NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
3
4
5
6
7
8 2J1200115
C/B & RELAY
SERVO MOTOR CONTROL
POWER SUPPLY
REAR PANEL
OP PANEL
MAIN SWITCH PANEL
CONCENT [CA-C2603 (AC 220V)]
DEVICE 1 ASS'Y
DEVICE 2 ASS'Y
DEVICE 3 ASS'Y
DEVICE 4 ASS'Y
DEVICE 5 ASS'Y
DEVICE 5 ASS'Y
CA-C2603 (AC220V)
