CP40LV Technical Reference_CS_Ver - 第123页

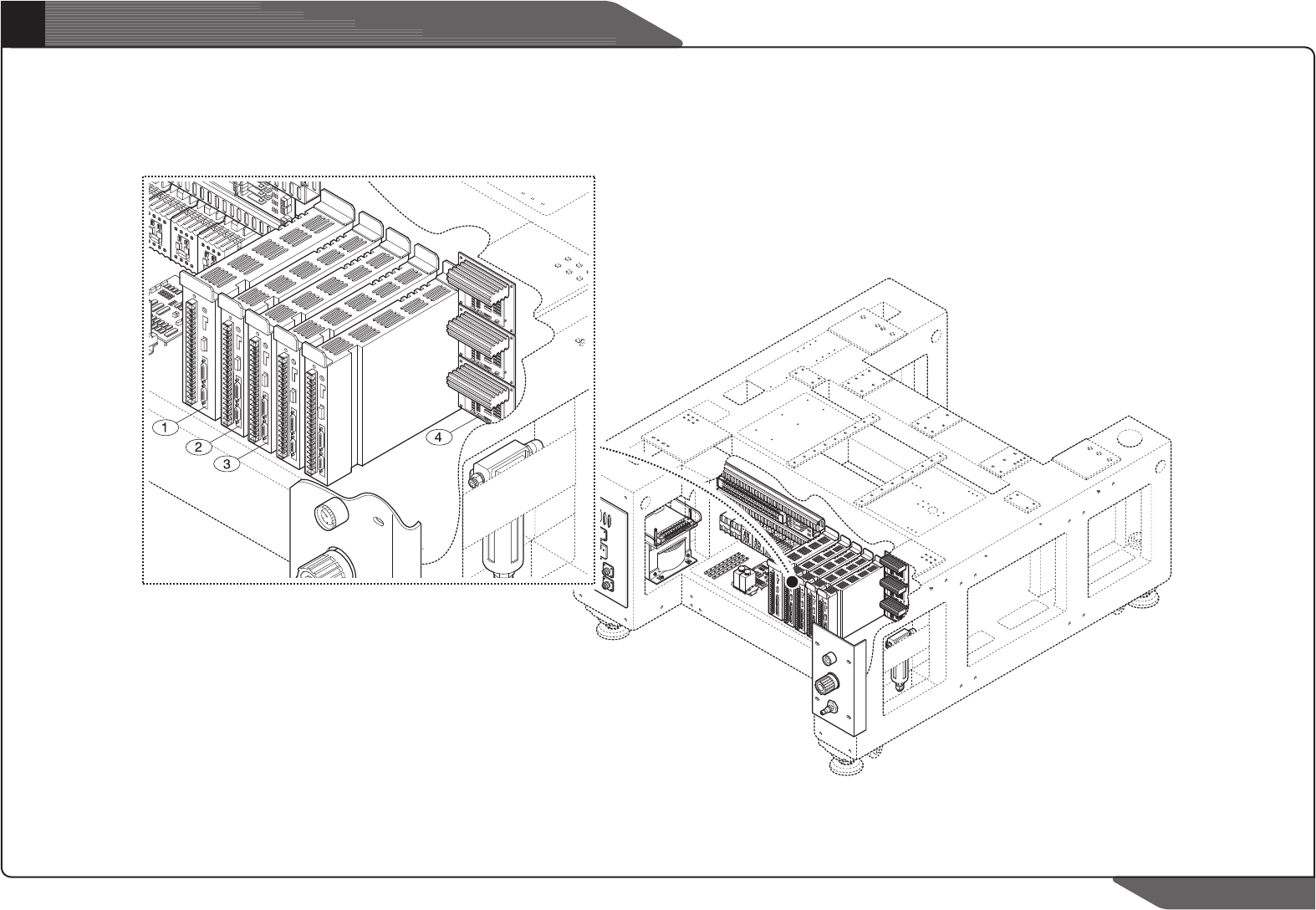

Part List D evice 2 Ass’y 123 Page SAMSUNG TECHWIN NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference 1 2 3 4 1 1 3 3 J1301685 J1301684 J3153024A J1301633 AC DRIVE Y-AXIS [PY0A050A1FCP01] AC DRIVE X-AXIS…
D
evice 2 Ass’y
122 Page
SAMSUNG TECHWIN
Part List
D
evice 2 Ass’y
123 Page
SAMSUNG TECHWIN
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
3
4
1
1
3
3
J1301685
J1301684
J3153024A
J1301633
AC DRIVE Y-AXIS [PY0A050A1FCP01]
AC DRIVE X-AXIS [PY0A030A1N51P01]
AC DRIVE Z-AXIS [PY0A015A1FD1P01]
STEP DRIVE THETA (0.45)
PY0A050A1FCP01
PY0A030A1N51P01
PY0A015A1FD1P01
PMM-MD-53030-10
J1301683
D
evice 3 Ass’y
124 Page
SAMSUNG TECHWIN
