Part List D evice 5 Ass’y 129 Page SAMSUNG TECHWIN NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1 1 1 1 1 1 1 1 1 1 1 1 1 J5102007A J7061054D J2100060 J2101323 J…
D
evice 5 Ass’y
128 Page
SAMSUNG TECHWIN
Part List
D
evice 5 Ass’y
129 Page
SAMSUNG TECHWIN

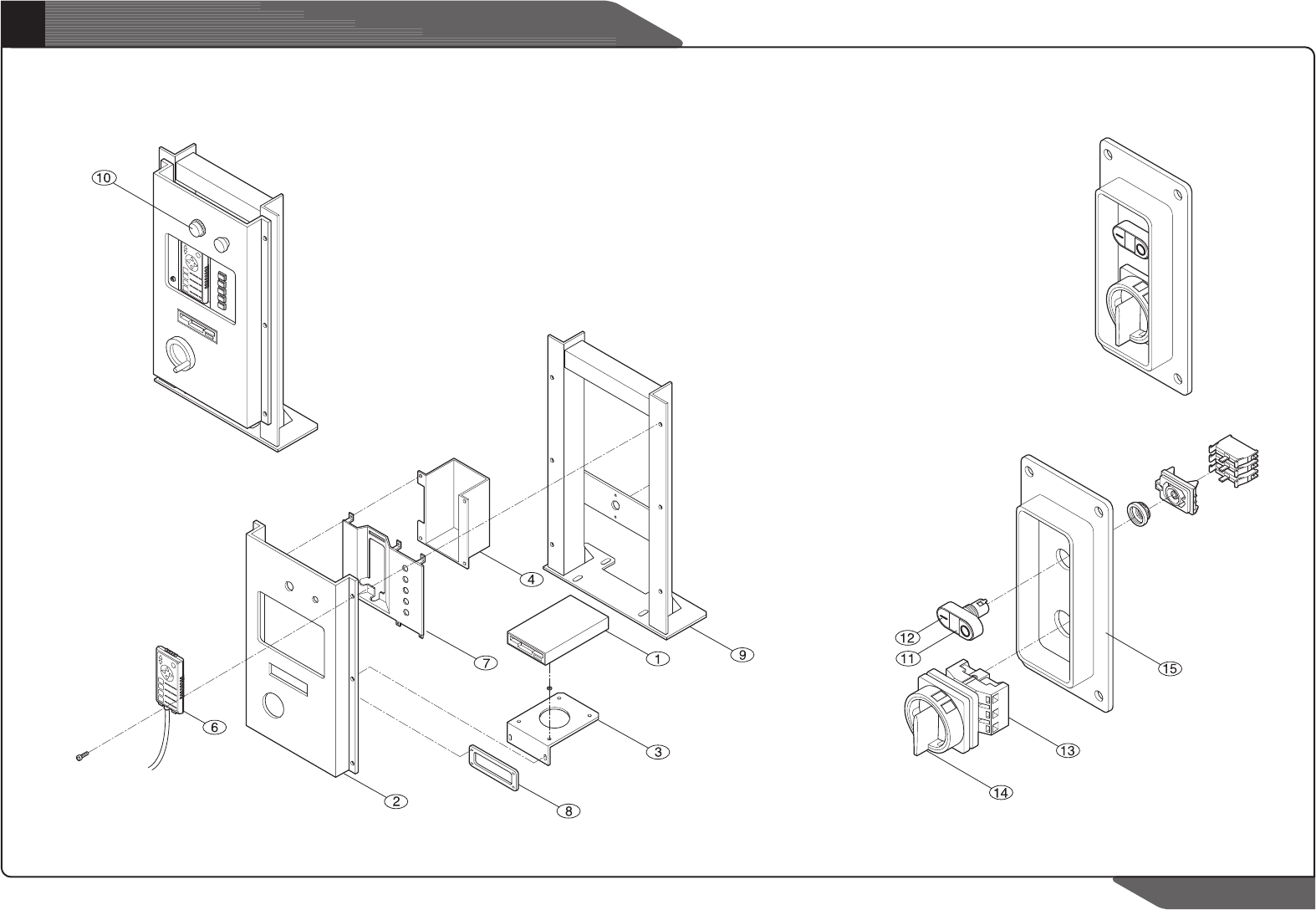

NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
1
1
1
1
1
1
1
1
1
1
1
1
J5102007A
J7061054D
J2100060
J2101323
J0601006A
J7052225B
J2101310
J1201021
J4713009A
J1200134
J1200197
J1200200
J7052102D
FLOPPY DISK DRIVER (3.5") [D359M3]
OP PANEL FRONT[J7061054D]
FDD BRACKET R [0131-614009]
CABLE COVER [0133-614005]
TEACHING BOX BOARD ASS'Y [C30-H1-109-00-10/C]
FDD PANEL [J7052225B]
SUPPORT FRONT PANEL [0133-612001]
BUZZER [AH30-XBE(DC/AC12-24V)]
LAMP [800E-N157]
PUSH BUTTON SWITCH[800EP-LU2C21-3DLO-X11]
LOAD SWITCH, L3 (20A) [194E-E25-1753]
CONTROL KNOB [194L-HE6N-175I]
PANEL MAIN S/W[J7052102D]
D359M3
J7061054D
0131-614009
0133-614005
C30-H1-109-00-10/C
J7052225B
0133-612001
AH04-X1BEDC
800E-N157
DML 3-P-G-E-01/10
LE3-20-1753/KG20B,K300
LFS 2-N-6-1751/V840F
J7052102D
J5102004A
J7061054C
J9060034B
J7052102C
D
evice Ass’y
130 Page
SAMSUNG TECHWIN
Part Photo
J1201001 SWITCH [AH165-VR02]
J3152009A CV STEP MOTOR DRIVE[CSMD2-LU340CON]
J1202177
LAMP(PANEL)(12V DC) [KH-516-B00(WHITE)]
J3403041A
IO SWITCH[RMQ TITAN M22]
J1202285
POWER SUPPLY [VSF100-24]
J3403043A SWITCH PROTECTION COVER[AL-KH6S]
