Part List M ech Ass’y 20 Page SAMSUNG TECHWIN NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference 1 2 3 1 1 1 J9051014A J9801496 J9053098A MAIN FRAME ASS'Y [CP-20,40,50/H=900] X-Y FRAME ASS'Y [0…

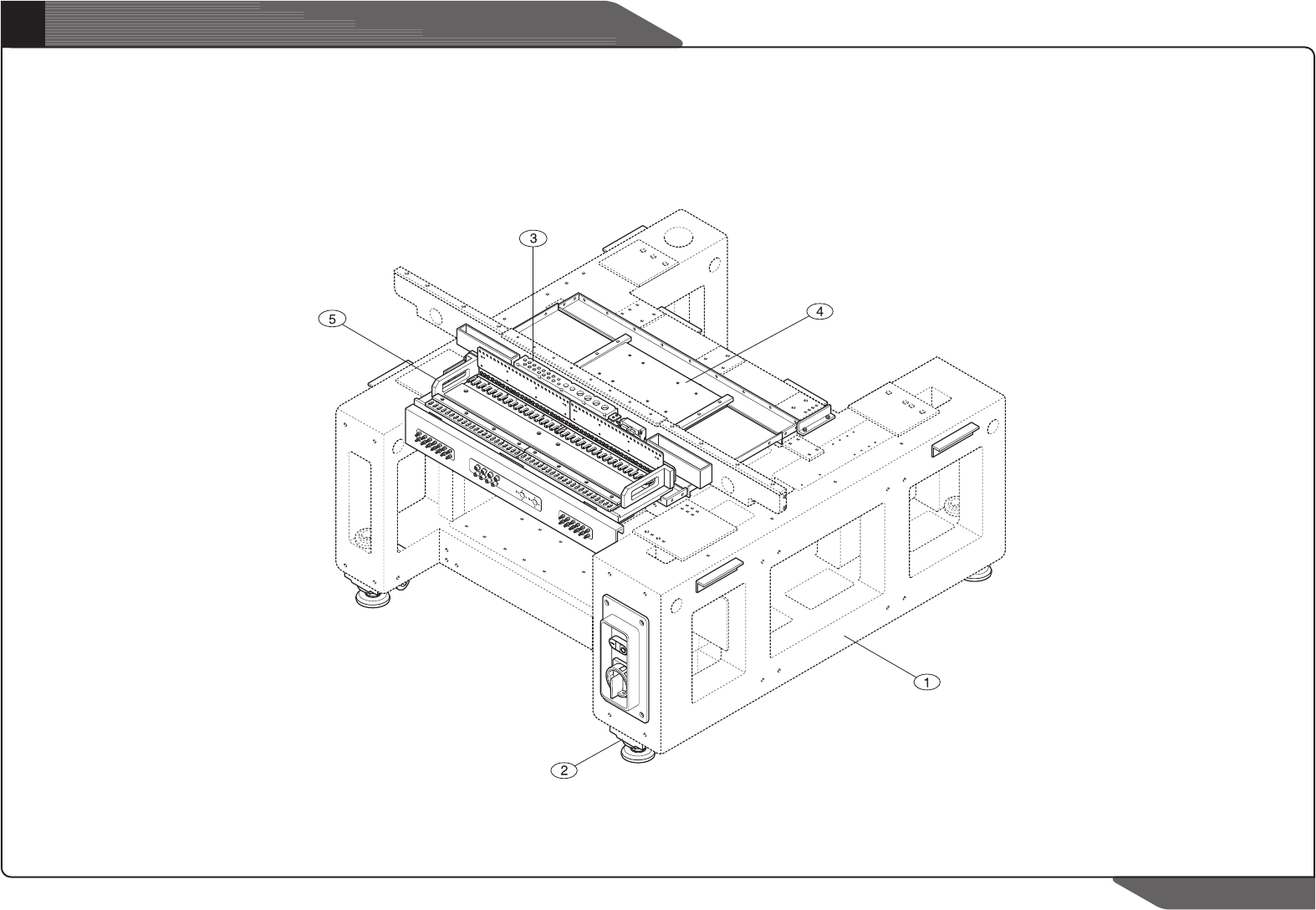

M
ech Ass’y
19 Page
SAMSUNG TECHWIN
Part List
M
ech Ass’y
20 Page
SAMSUNG TECHWIN
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
3
1
1
1
J9051014A
J9801496
J9053098A
MAIN FRAME ASS'Y [CP-20,40,50/H=900]
X-Y FRAME ASS'Y [0135-631004-A]
CP-40 FR-LR 3단 CONVEYOR ASS'Y[CP-40]
CP-20,40,50/H=900
0135-631004-A
CP-40
M
ain Frame Ass’y
21 Page
SAMSUNG TECHWIN
