Part List F oot Ass’y 24 Page SAMSUNG TECHWIN NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference 1 2 3 4 5 6 7 4 4 4 4 4 4 4 J7051009B J7051010B J2100018 J1300026 J2101561 J7051008B J6109001A BOLT-FOOT […

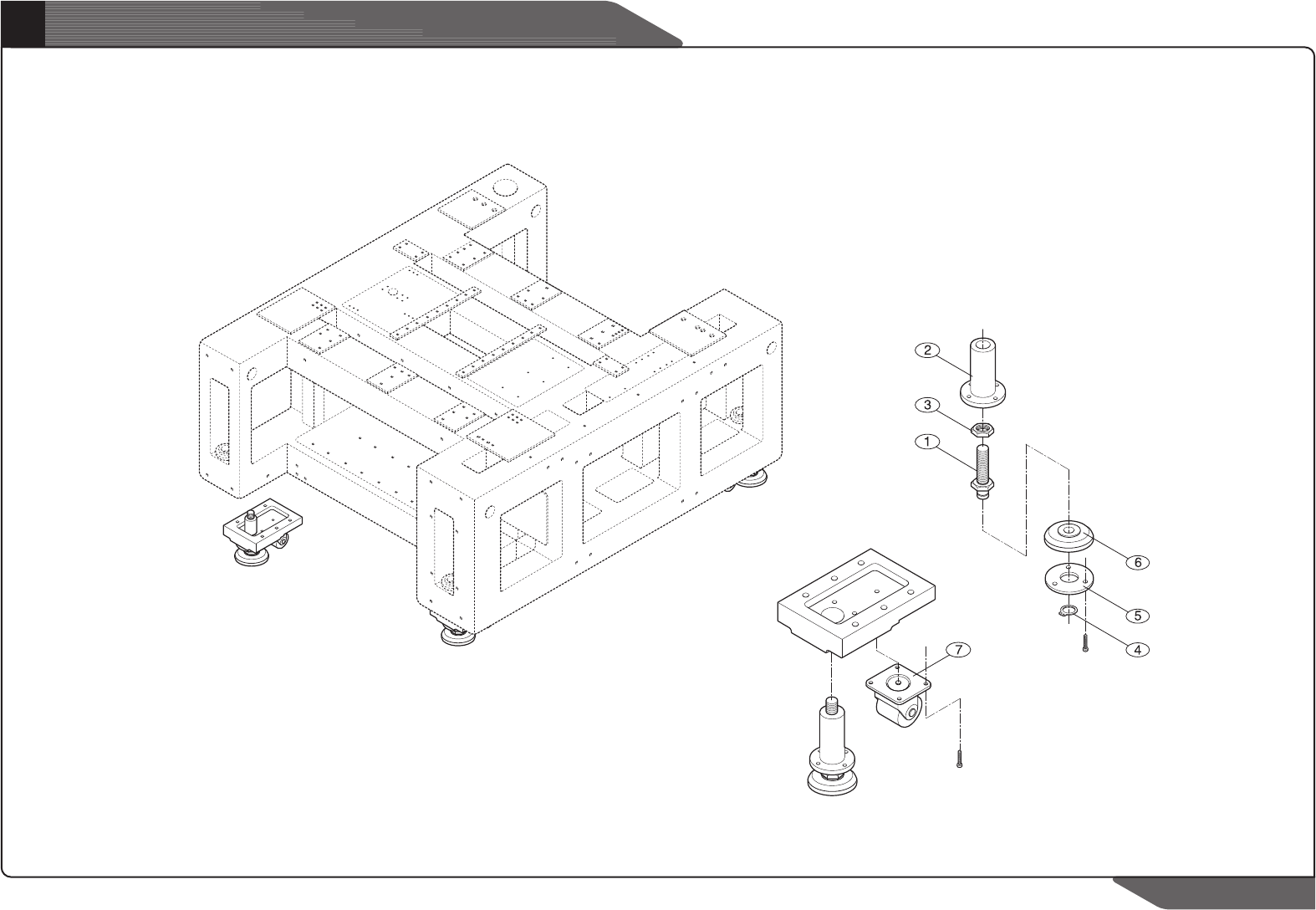

F
oot Ass’y
23 Page
SAMSUNG TECHWIN
Part List
F
oot Ass’y
24 Page
SAMSUNG TECHWIN
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
3
4
5
6
7
4
4
4
4
4
4
4
J7051009B
J7051010B
J2100018
J1300026
J2101561
J7051008B
J6109001A
BOLT-FOOT [J7051009B]
HOUSING-FOOT [J7051010B]
NUT FOOT [0131-611026]
C-RING (SHAFT) [DIA 22]
CUSHION FOOT [0131-611025-P1]
BASE-FOOT [J7051008B]
SWIVEL CASTER [HJ-65U-YN (MURATA)]
J7051009B
J7051010B
0131-611026
DIA 22
0131-611025-P1
J7051008B
HJ-65U-YN (MURATA)

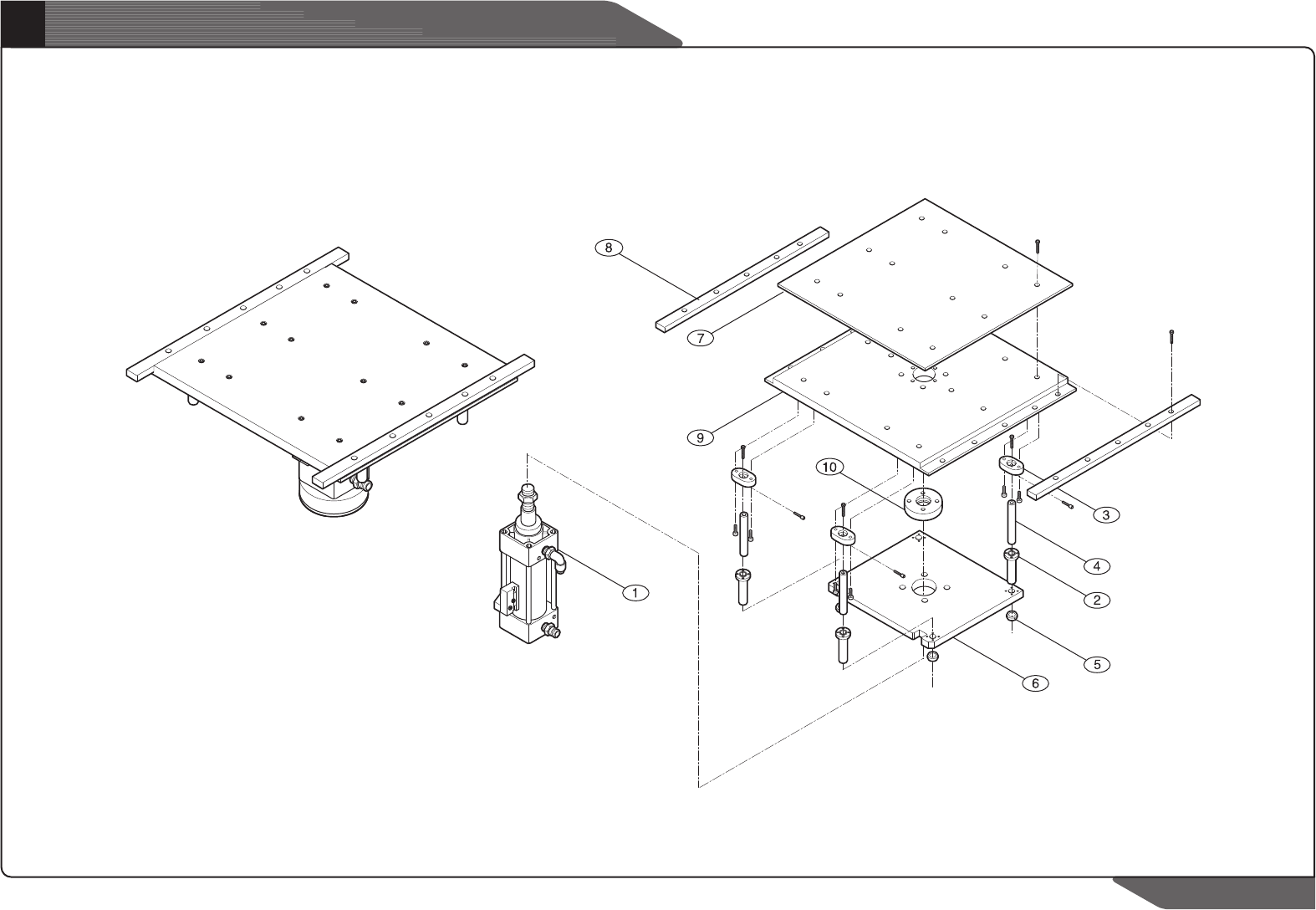

B
