Part List F ixed ANC Ass’y 29 Page SAMSUNG TECHWIN NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 2 2 1 1 1 1 1 2 2 2 4 2 1 1 1 1 1 J6713016A J1301690 J70560…

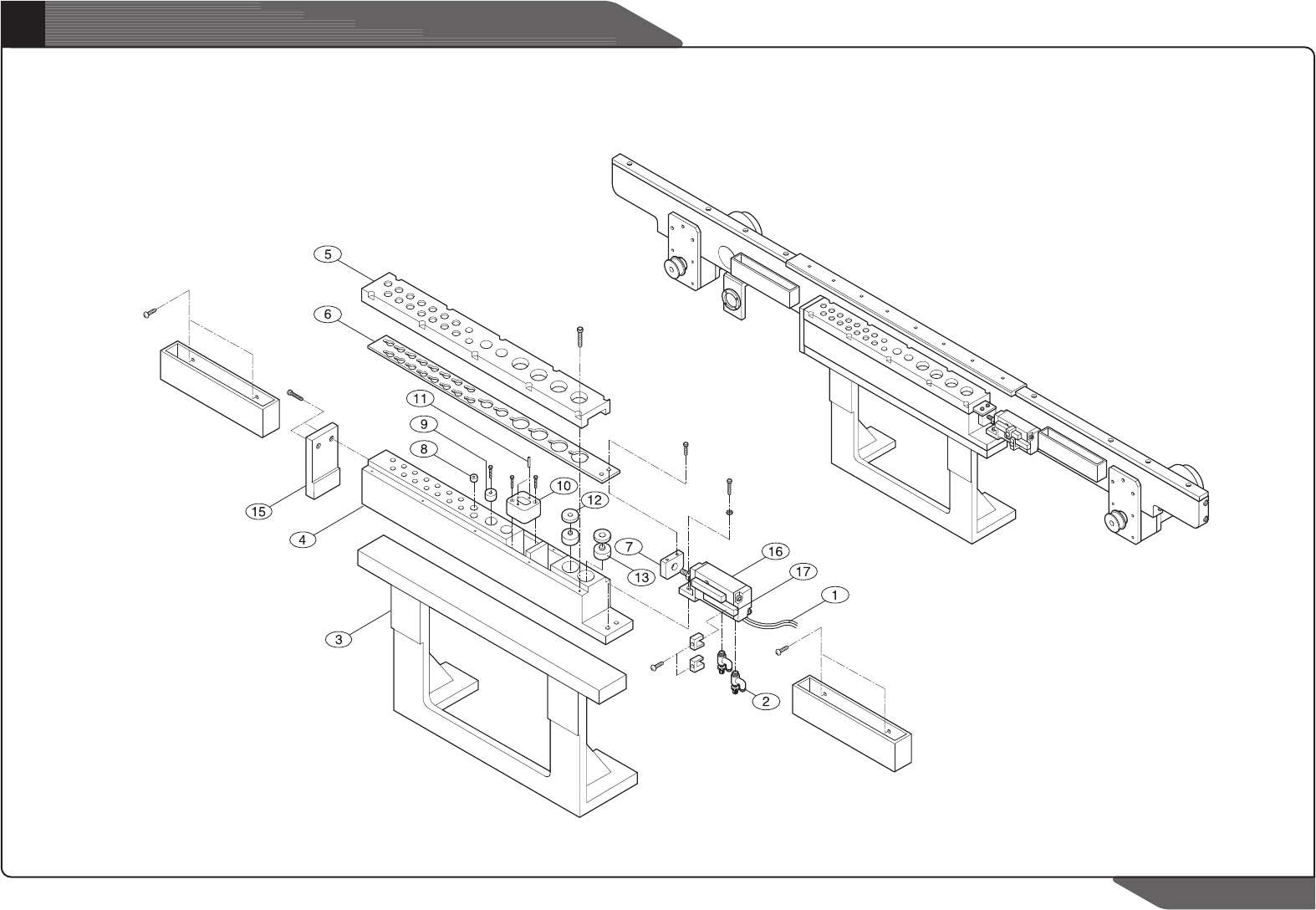

F
ixed ANC Ass’y
28 Page
SAMSUNG TECHWIN
Part List
F
ixed ANC Ass’y
29 Page
SAMSUNG TECHWIN
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
2
2
1
1
1
1
1
2
2
2
4
2
1
1
1
1
1
J6713016A
J1301690
J7056003C
J7156001D
J7256001F
J2101925
J2101926
J2101927
J2101928
J2101929
J2101930
J2101931
J2101932
J2101933
J2102014
J1301689
J2102104
AIR TUBE(POLYURETHANE)
SPEED CON. [AS1301F-M5-04]
ANC SUPPORT [J7056003C]
MAIN BODY [J7156001D]
NOZZLE ALIGNER[J7256001F]
NOZZLE PLATE [0140-671004-1M]
NOZZLE PLATE BRACKET [0140-671005-1M]
STOPPER NOZZLE [0140-671006-1M]
STOPPER NOZZLE [0140-671007-1M]
NOZZLE STOPPER [0140-671008-1M]
ALIGN PIN [0140-671009-1M]
STOPPER [0140-671010-1M]
NOZZLE STOPPER [0140-671011-1M]
NOZZLE STOPPER-L [0140-671012-1M]
MAIN FIDUCIAL [0140-671014-1M]
CYLINDER [BDAS6*10-1A-ZC153A2]
ANC SENSOR CABLE ASS'Y [QA2-FD03]
U2-4-4*2.5(BLACK)
AS1301F-M5-04
J7056003C
J7156001D
J7256001F
0140-671004-1M
0140-671005-1M
0140-671006-1M
0140-671007-1M
0140-671008-1M
0140-671009-1M
0140-671010-1M
0140-671011-1M
0140-671012-1M
0140-671014-1M
BDAS6*10-1A-ZC153A2
QA2-FD03
J7156001C
J7256001E

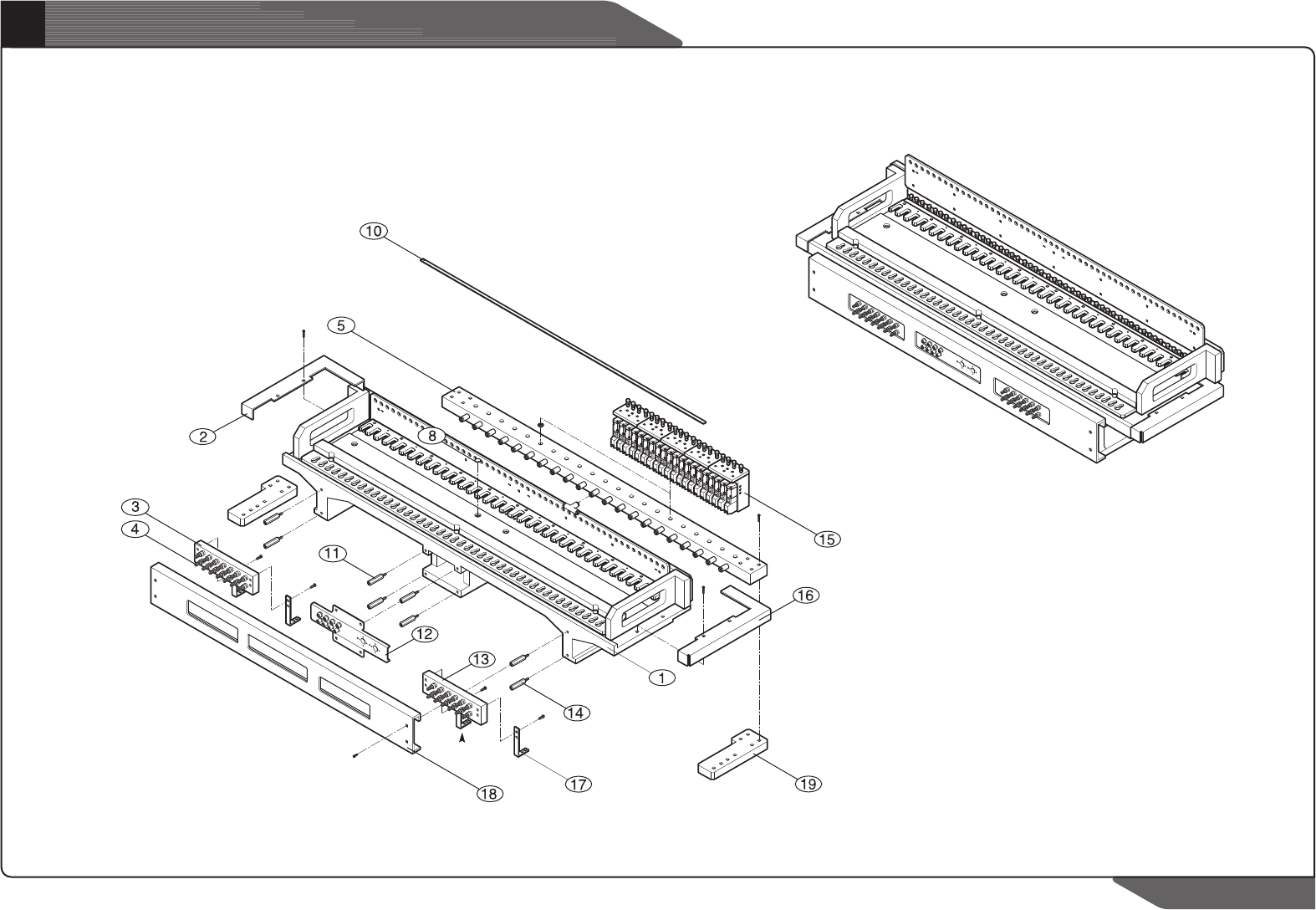

F
