Part List X -Y Frame Ass’y 34 Page SAMSUNG TECHWIN NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference 1 2 3 4 5 6 CP-50M 1 1 1 1 1 1 1 J9800958 J9801497 J9801086 J9801500 J9801494 J9800991 X-FRAME ASS&ap…
X
-Y Frame Ass’y
33 Page
SAMSUNG TECHWIN
Part List
X
-Y Frame Ass’y
34 Page
SAMSUNG TECHWIN

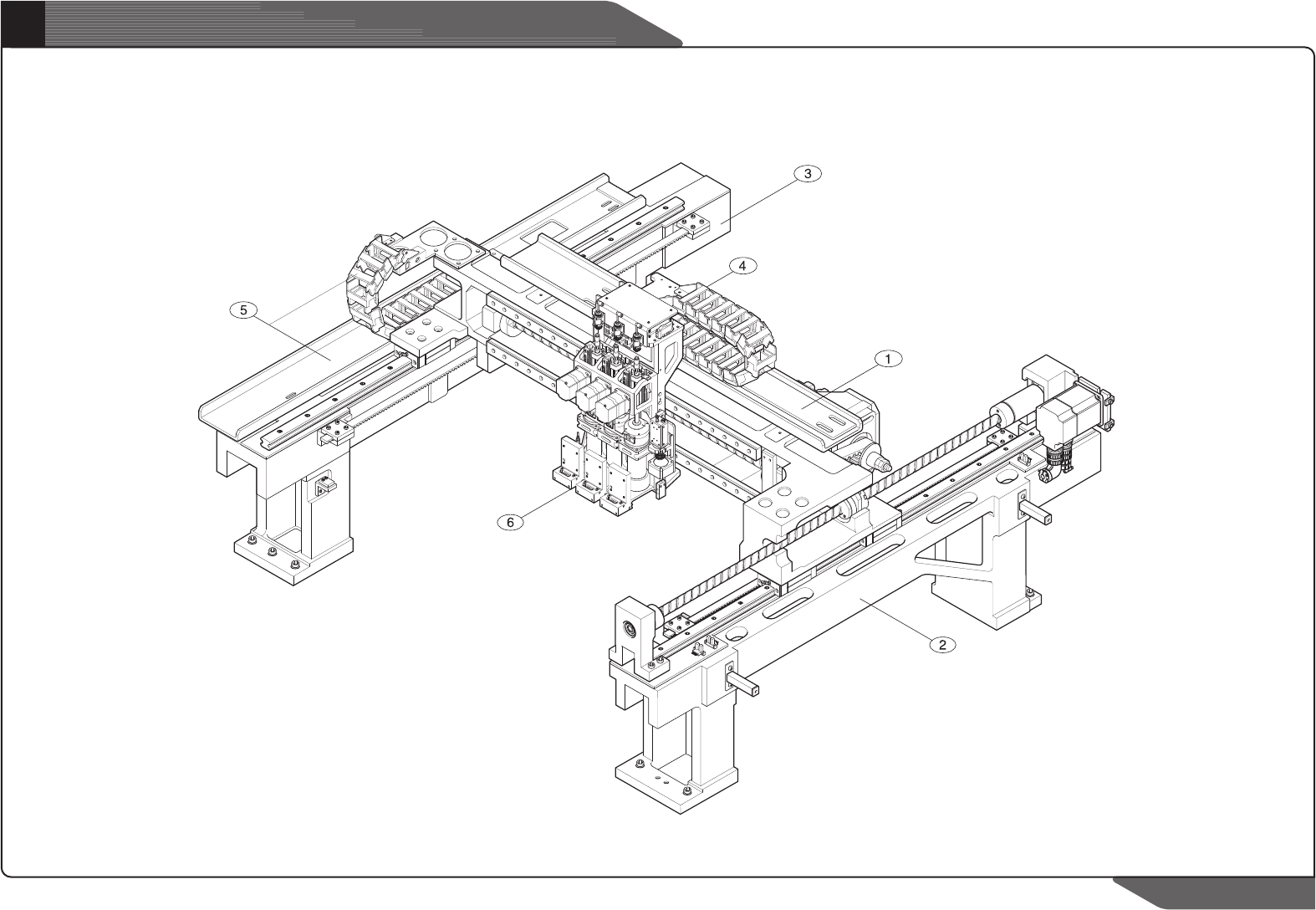

NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
3
4
5
6
CP-50M
1
1
1
1
1
1
1
J9800958
J9801497
J9801086
J9801500
J9801494
J9800991
X-FRAME ASS'Y [0133-631001-A]
Y1-FRAME ASS'Y [0135-631010-A]
Y2-FRAME ASS'Y [0134-631011-A]
CARRIER ASS'Y [0135-631002-A]
CARRIER ASS'Y [0150-631002-A]
CABLE BEYOR ASS'Y [0133-631007-A]
HEAD & CARRIER ASS'Y
0133-631001-A
0135-631010-A
0134-631011-A
0135-631002-A
0150-631002-A
0133-631007-A
CP40L(V)
9800991
X
-Y Frame Ass’y
35 Page
SAMSUNG TECHWIN
Part Photo
J1201035 HEX SUPPORT [M310 (BOLT-NUT)]
J1300463 C-RING [10mm (HOLE)]
J1300170 SOCKET HEAD SCREW
J1300468
SPRING WASHER [M3]
J1300416
HEX NUT [M6 (BLACK)]
J2101350
MECHALOCK FASTNER [0133-631006]
