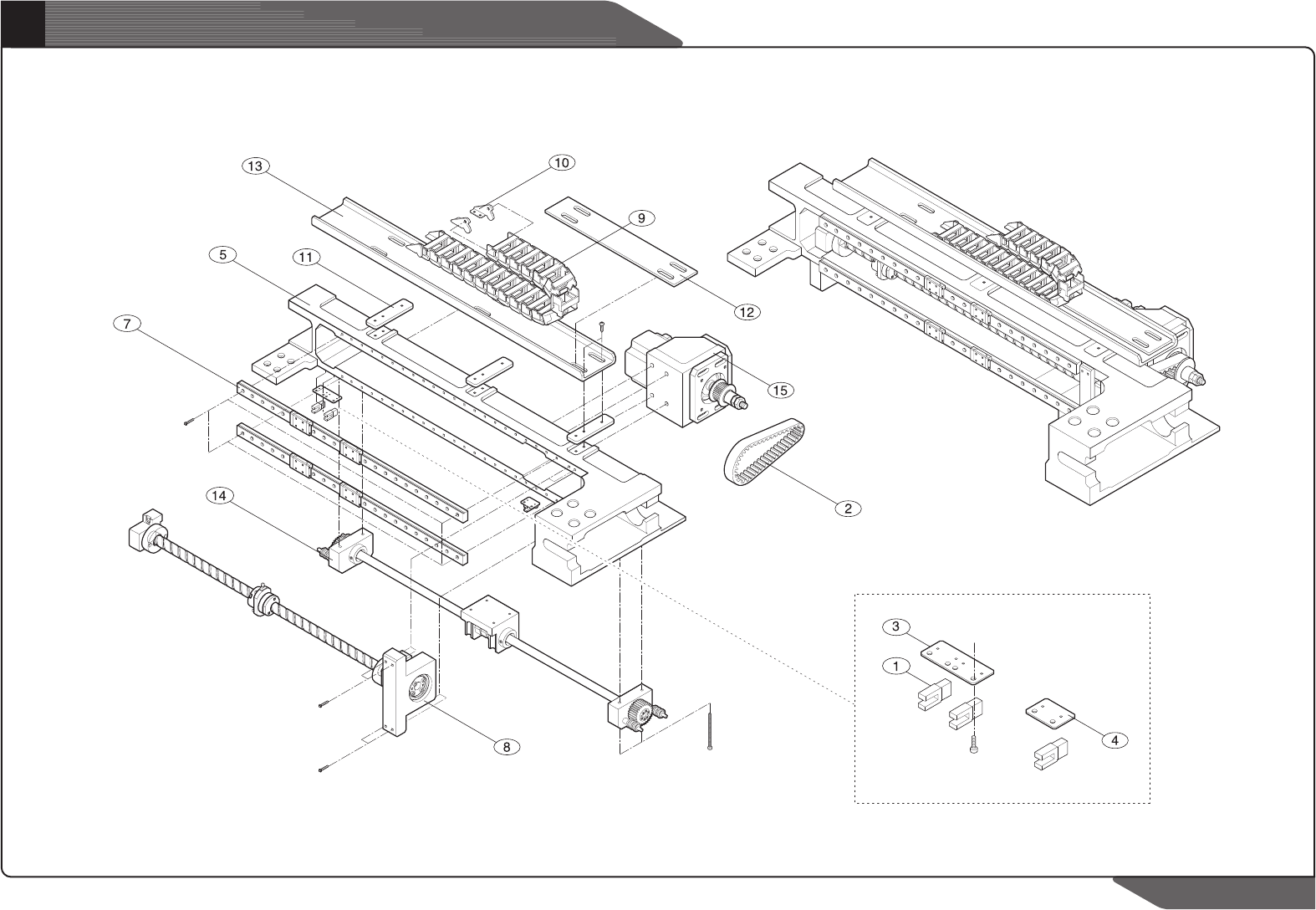

Part List X -Frame Ass’y 38 Page SAMSUNG TECHWIN NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 CP-40LV 3 1 1 1 1 2 1 1 1 3 1 1 1 1 J1300483 J1301217 J2100120 J210…
X
-Frame Ass’y
37 Page
SAMSUNG TECHWIN
Part List
X
-Frame Ass’y
38 Page
SAMSUNG TECHWIN
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
CP-40LV
3
1
1
1
1
2
1
1
1
3
1
1
1
1
J1300483
J1301217
J2100120
J2100121
J7154058I
J6607035A
J9800960
J6102001A
J6509001A
J2100124
J7254002C
J7154041D
J9800959
J2101502
PHOTO SENSOR [EE-SX672]
TIMMING BELT-X [5GT-350-15]
BRACKET1 X SENSOR [0131-631154]
BRACKET2 X SENSOR [0131-631155]
X-FRAME [J7154058I]
LM GUIDE [2RSR 15ZMUUC1+913LPM-II]
X-BALL SCREW ASS'Y [0133-631003-A]
CABLEVEYOR-X [HSP 0450-3B-50R 14LINK]
CABLEVEYOR BKT [KJP-0450 X, Y]
BRACKET CABLE BEYOR GUIDE [0131-631158]
CUSHION-X C/BEYOR[J7254002C]
GUIDE C/BEYOR-X [J7154041D]
SYNCHRO PULLEY ASS'Y [0133-631002-A]
MOTOR ASS'Y [QA-PW44]
EE-SX672
5GT-350-15
0131-631154
0131-631155
J7154058I
2RSR 15ZMUUC1+913LPM-II
0133-631003-A
HSP 0450-3B-50R 14LINK
KJP-0450 X, Y
0131-631158
J7254002C
J7154041D
0133-631002-A
QA-PW44
J7154058G
J7254002B
