Part List X -Ball Screw Ass’y 40 Page SAMSUNG TECHWIN NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference 1 2 3 4 5 6 7 8 9 10 11 1 1 1 1 1 2 1 1 1 1 1 J2101200 J1300530 J1301357 J1301208 J1300648 J130050…
X
-Ball Screw Ass’y
39 Page
SAMSUNG TECHWIN
Part List
X
-Ball Screw Ass’y
40 Page
SAMSUNG TECHWIN

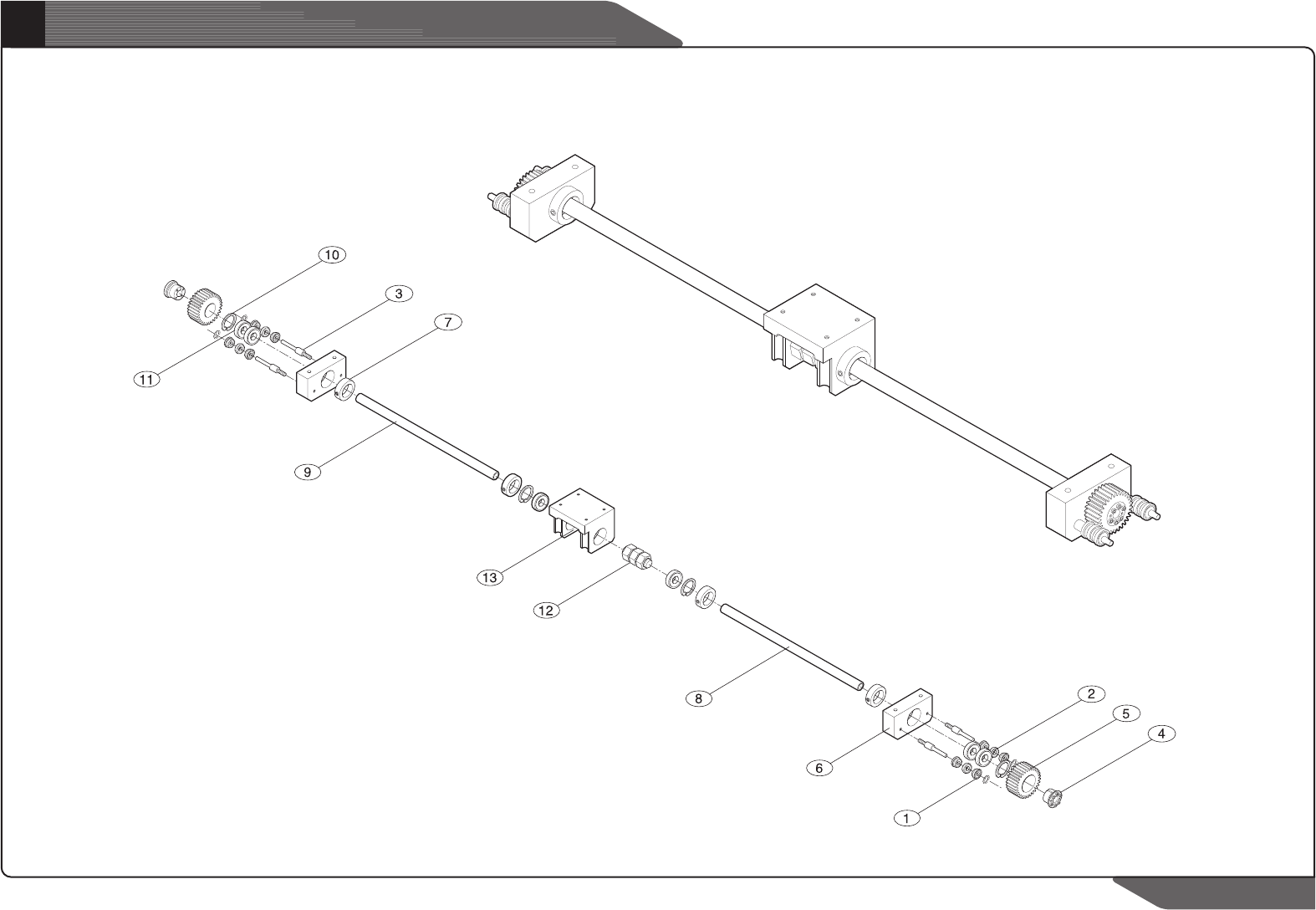

NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
3
4
5
6
7
8
9
10
11
1
1
1
1
1
2
1
1
1
1
1
J2101200
J1300530
J1301357
J1301208
J1300648
J1300509
J2100089
J1300517
J1301707
J1301205
J2101375
HOUSING-BEARING [0131-631180]
MECHA LOCK X SCREW [MA10 (ISEL) 0131-631115]
BEARING [6807ZZ]
SCREW PULLEY-X [P32-5GT-A (0131-631005)]
CUSHION-X [ALX50-24]
BALL BEARING [6000ZZ]
SCREW SUPPORT-X [0131-631018-P1]
C-RING [10mm (SHAFT)]
SUPPORT UNIT [AK12S1]
BALL SCREW-X [GH1632QS-HEFR (0131-631031)]
CUSHION-X [ALX 50-13]
0131-631180
MA10 (ISEL) 0131-631115
6807ZZ
P32-5GT-A (0131-631005)
ALX50-24
6000ZZ
0131-631018-P1
10mm (SHAFT)
AK12S1
GH1632QS-HEFR (0131-631031)
ALX 50-13
