CP40LV Technical Reference_CS_Ver - 第47页
Y Motor Ass’y 47 Page SAMSUNG TECHWIN
Part List
Y
1 Frame Ass’y
46 Page
SAMSUNG TECHWIN
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
3
4
5
6
7
8
9
10
11
1
1
2
1
1
1
3
1
2
1
J7054045B
J1300570
J2100098
J1300984
J7054058B
J2100130
J1300484
J9801498
J7057042C
J2100112
Y-MOTOR ASS'Y
FRAME-Y1 [J7054045B]
LM GUIDE(Y) [SR30W 2UU C1+1200 LP (0131-631029)
PAD BELT CLAMP [0131-631026]
TIMING BELT [5GT-1250-15]
BELT CLAMP ADJUST [J7054058B]
BELT CLAMP-FIXED [0131-631164]
SENSOR [EE-SX671]
Y-BALL SCREW ASS'Y [0135-631006-A]
BRACKET FEEDER SENSOR [J7057042C]
BELT TENSIONER LH [0131-631050]
J7054045B
SR30W 2UU C1+1200 LP (0131-631029)
0131-631026
5GT-1250-15
J7054058B
0131-631164
EE-SX671
0135-631006-A
J7057042C
0131-631050
Y
Motor Ass’y
47 Page
SAMSUNG TECHWIN
Part List
Y

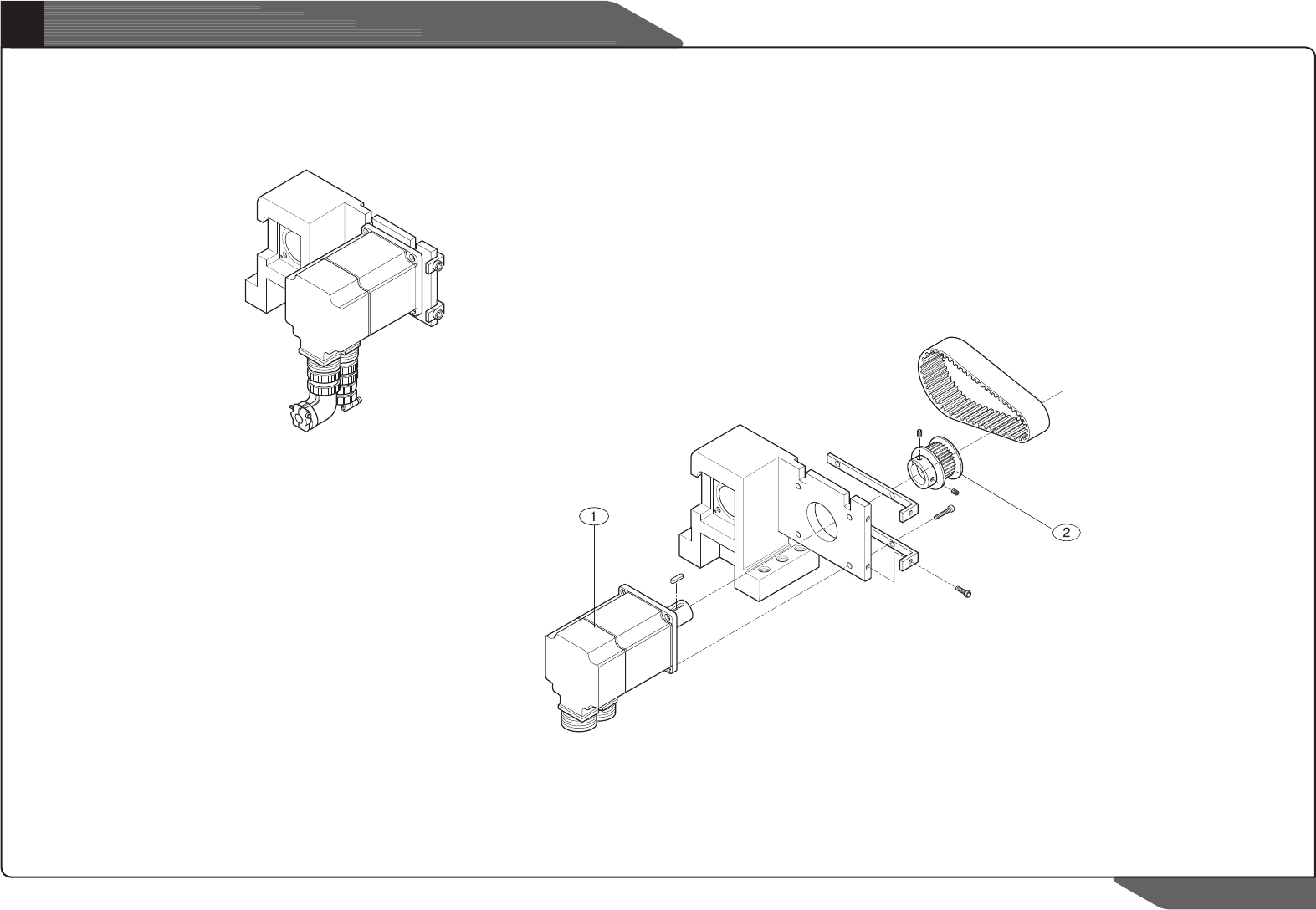

Motor Ass’y
48 Page
SAMSUNG TECHWIN
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
1
1
J1301686
J1301703
AC MOTOR Y-AXIS [P20B10100DXS00]
MOTOR PULLEY-Y
P20B10100DXS00
P26-5GT-BF (0135-631001)
