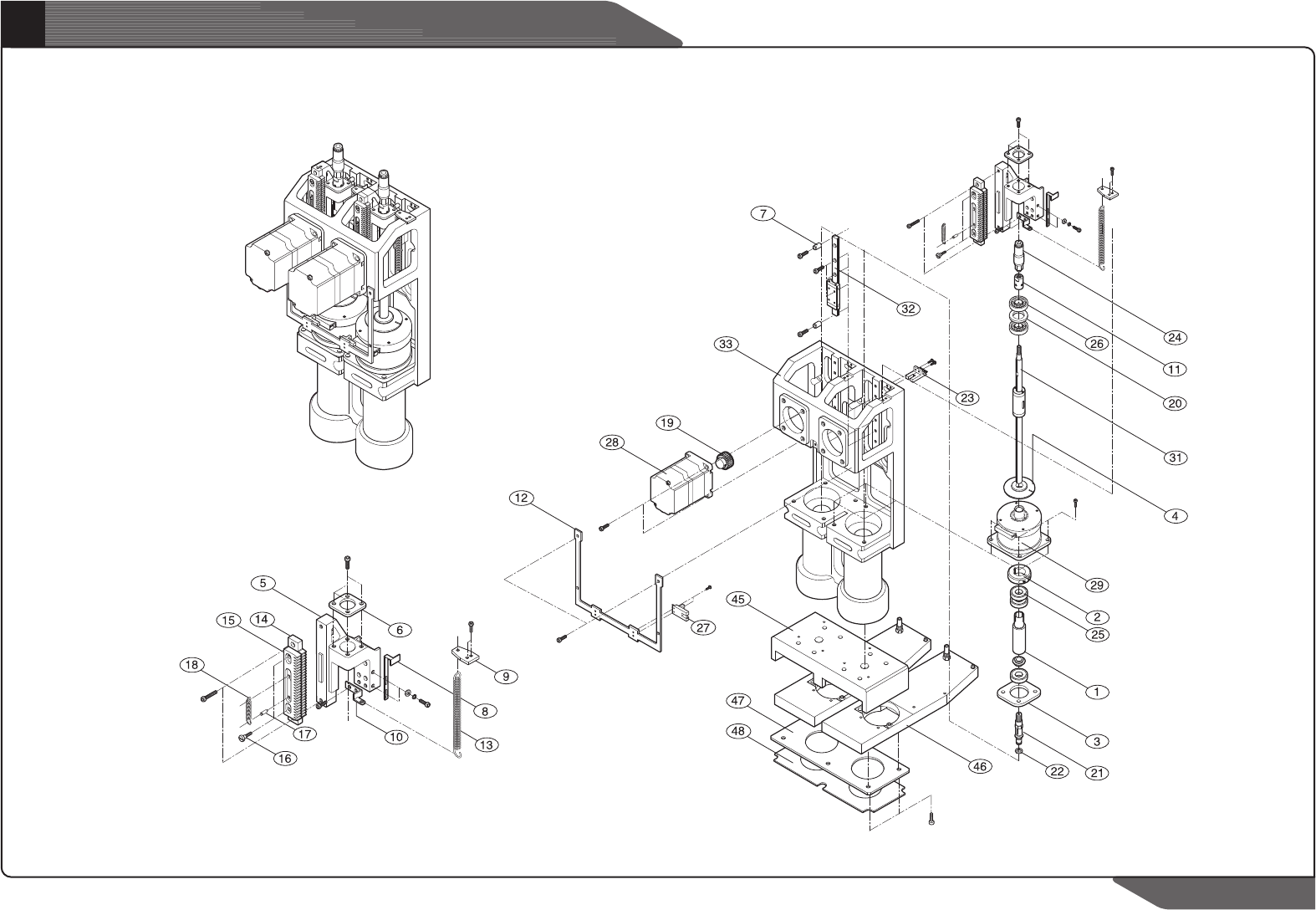

H ead Ass’y 60 Page SAMSUNG TECHWIN
Part List
H
ead Ass’y
59 Page
SAMSUNG TECHWIN
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
28
29
30
31
32
33
3
3
3
3
3
1
J1301273
J1301632
J1301356
J6611005A
J1301635
J7155006B
SERVO MOTOR [P30B04005DXS00]
STEP MOTOR THETA (0.45) [103H7570-7024]
QA OPTICAL UNIT [10-22603]
BALL SPLINE(표준품) [LSAGLT10C1R250T1P]
LM GUIDE [LWLG 7C1R80BT1H]
MAIN BODY [J7155006B]
P30B04005DXS00
103H7570-7024
10-22603
LSAGLT10C1R250T1P
LWLG 7C1R80BT1H
J7155006B
1301635
