C amera Head Ass’y 70 Page SAMSUNG TECHWIN
Part List
C
arrier Ass’y
69 Page
SAMSUNG TECHWIN
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
3
4
5
6
7
8
9
10
11
12
13
2
1
1
1
1
1
1
1
2
6
1
1
2
J2101168
J7054044B
J7054046B
J2101296
J2101373
J7154024C
J7054021B
J2101397
J7054065B
J1300502
J9801495
J7154023C
J7154026C
SPACER V/G [0131-631183]
SENSOR DOG-X [J7054044B]
SENSOR DOG-L-X [J7054046B]
BRACKET VACUUM GENERATOR [0133-631153]
BRACKET VACUUM GENERATOR [0133-631192]
HARNESS PLATE-X [J7154024C]
CONNECTOR PANEL [J7054021B]
CABLE CLAMP LOWER [0133-631201]
STUD BOLT[0131-631193]
PIN DOWEL [MS5-10]
CAMERA HEAD ASS'Y
TRAVELING UNIT-X [J7154023C]
BRACKET HARNESS PLATE-L [J7154026C]
0131-631183
J7054044B
J7054046B
0133-631153
0133-631192
J7154024C
J7054021B
0133-631201
0131-631193
MS5-10
0150-624000-A
J7154023C
J7154026C
J2101195
C
amera Head Ass’y
70 Page
SAMSUNG TECHWIN
Part List

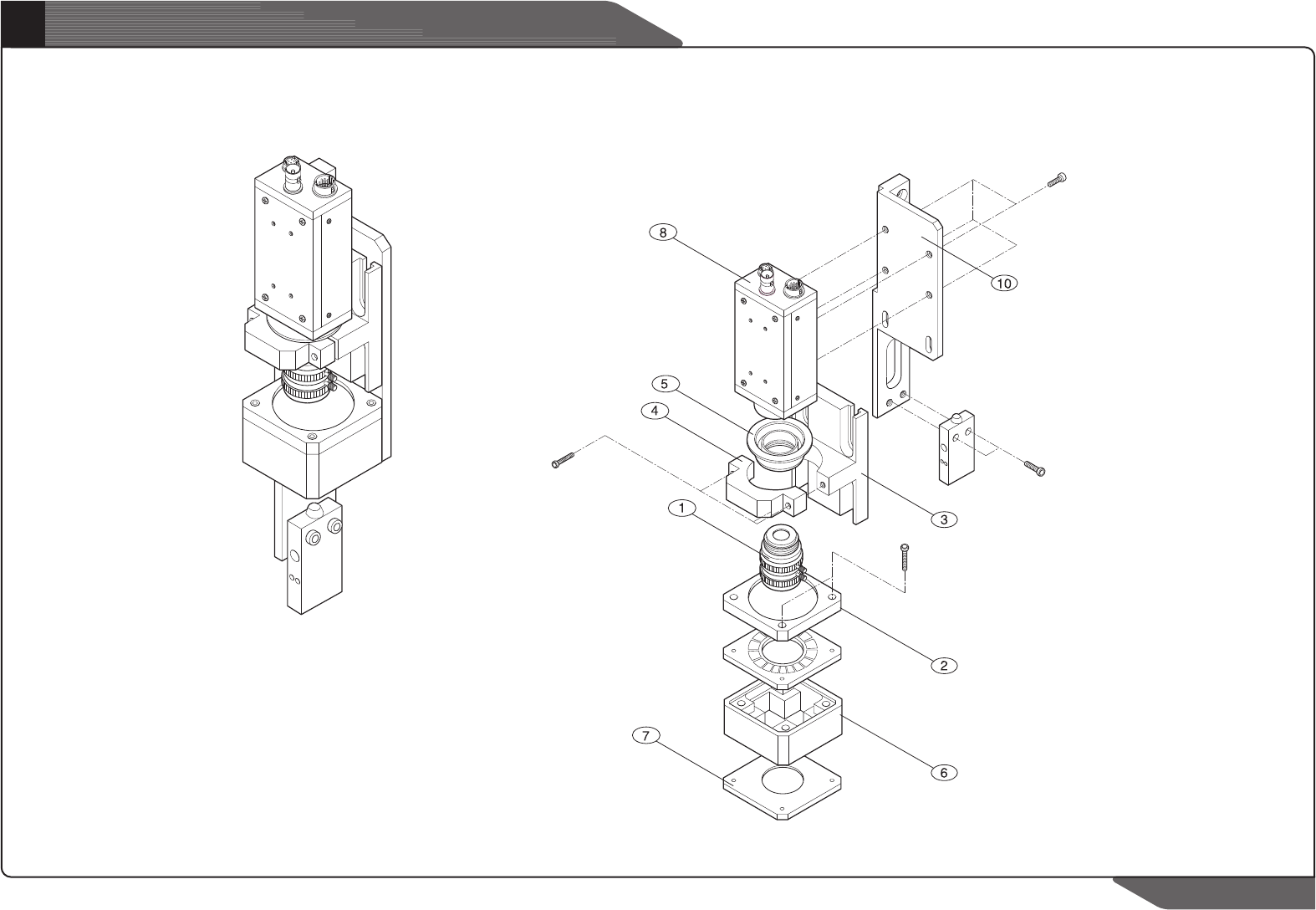

C
amera Head Ass’y
71 Page
SAMSUNG TECHWIN
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
3
4
5
6
7
8
9
10
1
1
1
1
1
1
1
1
1
J6739005A
J7059030B
J7159006C
J7159007B
J2102019
J2102020
J2101637
J6751013A
J7159003F
LENS [B2518-TS (COSMICAR)]
COVER-LED [J7059030B]
HOLDER [J7159006C]
CLAMP CAMERA [J7159007B]
JOINT RING [0140-624004-1M]
BLOCK LED [0140-624005-1M]
DIFFUSER [0131-624010-P2]
CCD CAMERA[XC-ST50]
BRACKET CAMERA [J7159003F]
B2518-TS (COSMICAR)
J7059030B
J7159006C
J7159007B
0140-624004-1M
0140-624005-1M
0131-624010-P2
XC-ST50
J7159003F
J1300491
