Part List C onveyor 2 Ass’y 78 Page SAMSUNG TECHWIN NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference 1 2 3 4 5 6 7 1 1 1 1 1 1 1 J2101739 J7053022D J2102045 J1300676 J6402009A J1300675 J1301668 FIX STA…
C

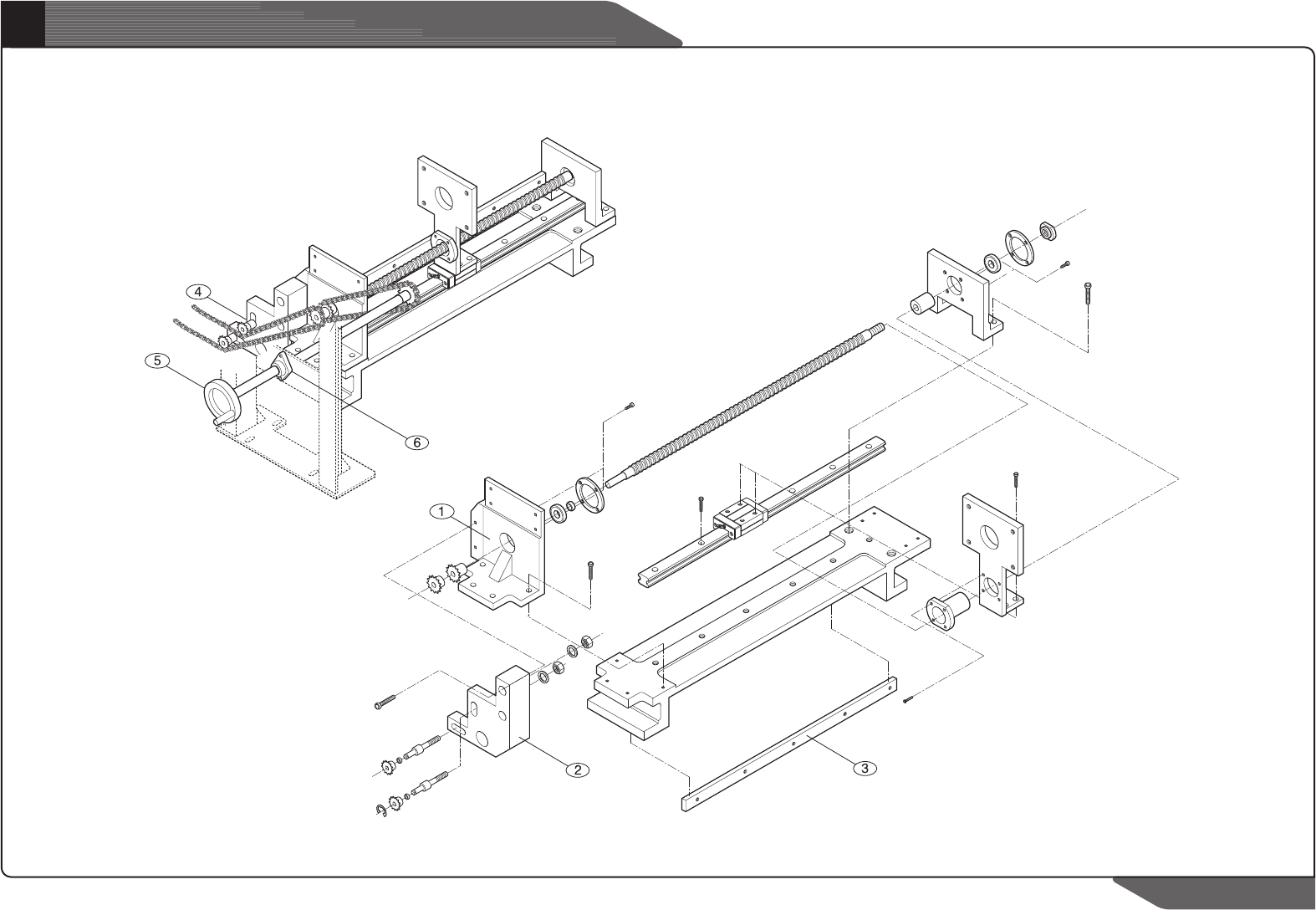

onveyor 2 Ass’y
77 Page
SAMSUNG TECHWIN
Part List
C
onveyor 2 Ass’y
78 Page
SAMSUNG TECHWIN
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Reference
1
2
3
4
5
6
7
1
1
1
1
1
1
1
J2101739
J7053022D
J2102045
J1300676
J6402009A
J1300675
J1301668
FIX STAND (RIGHT) [0135-641012]
SPROCKET PLATE(R)[J7053022D]
COVER SUPPORT 1 [0135-641126]
CHAIN [#25-46L]
HANDLE[80-HANDLE]
OILES BEARING [80FL-12 (OILES)]
CHAIN [RS25*2354L]
0135-641012
J7053022D
0135-641126
#25-46L
J6402009A
80FL-12 (OILES)
RS 25*2354L
J7053022C
J1301706
C

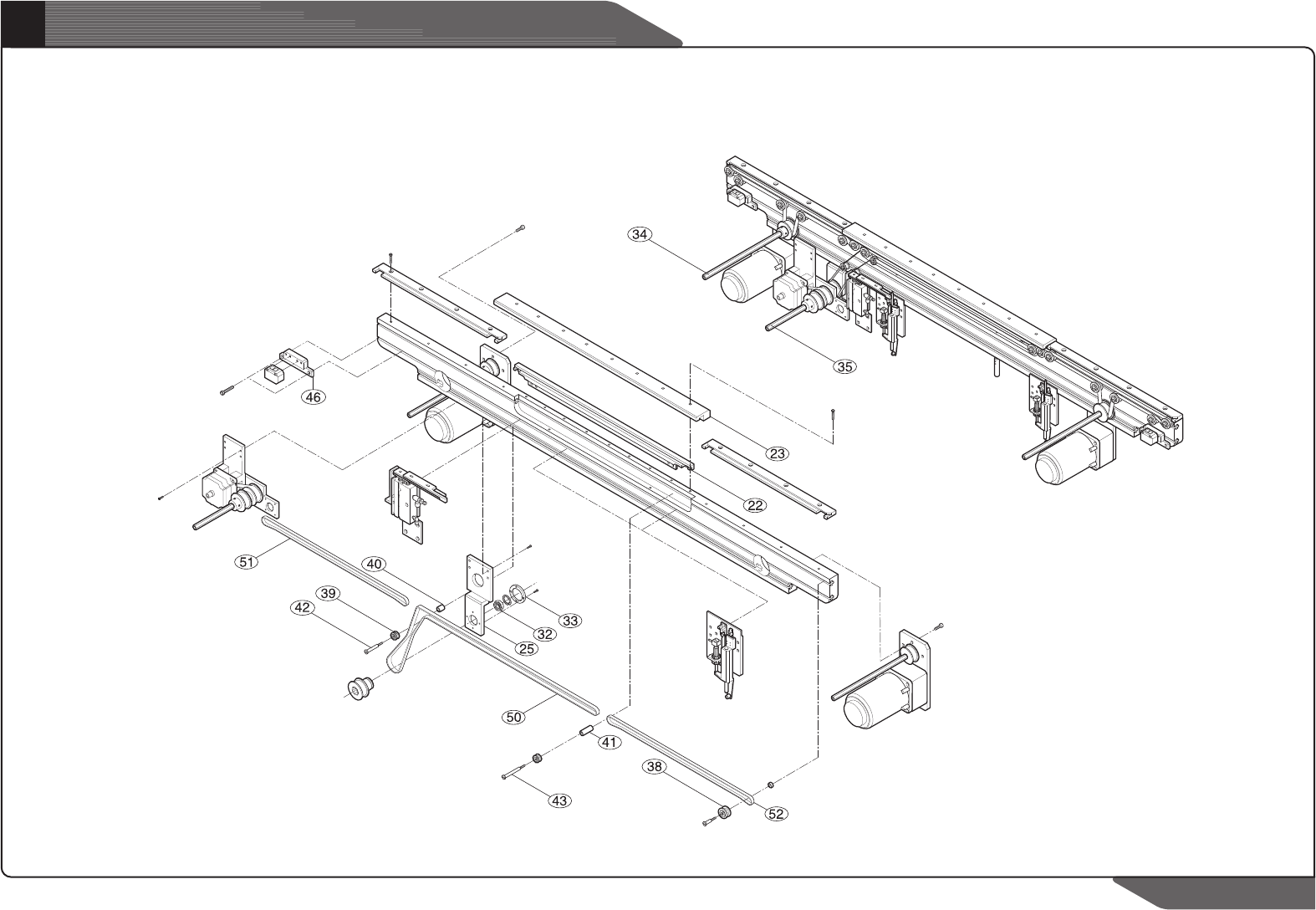

onveyor 3 Ass’y
