37
Innovision Semiconductor
Preliminary Datasheet
ISM6636A/B
Rev1.10 01/2023

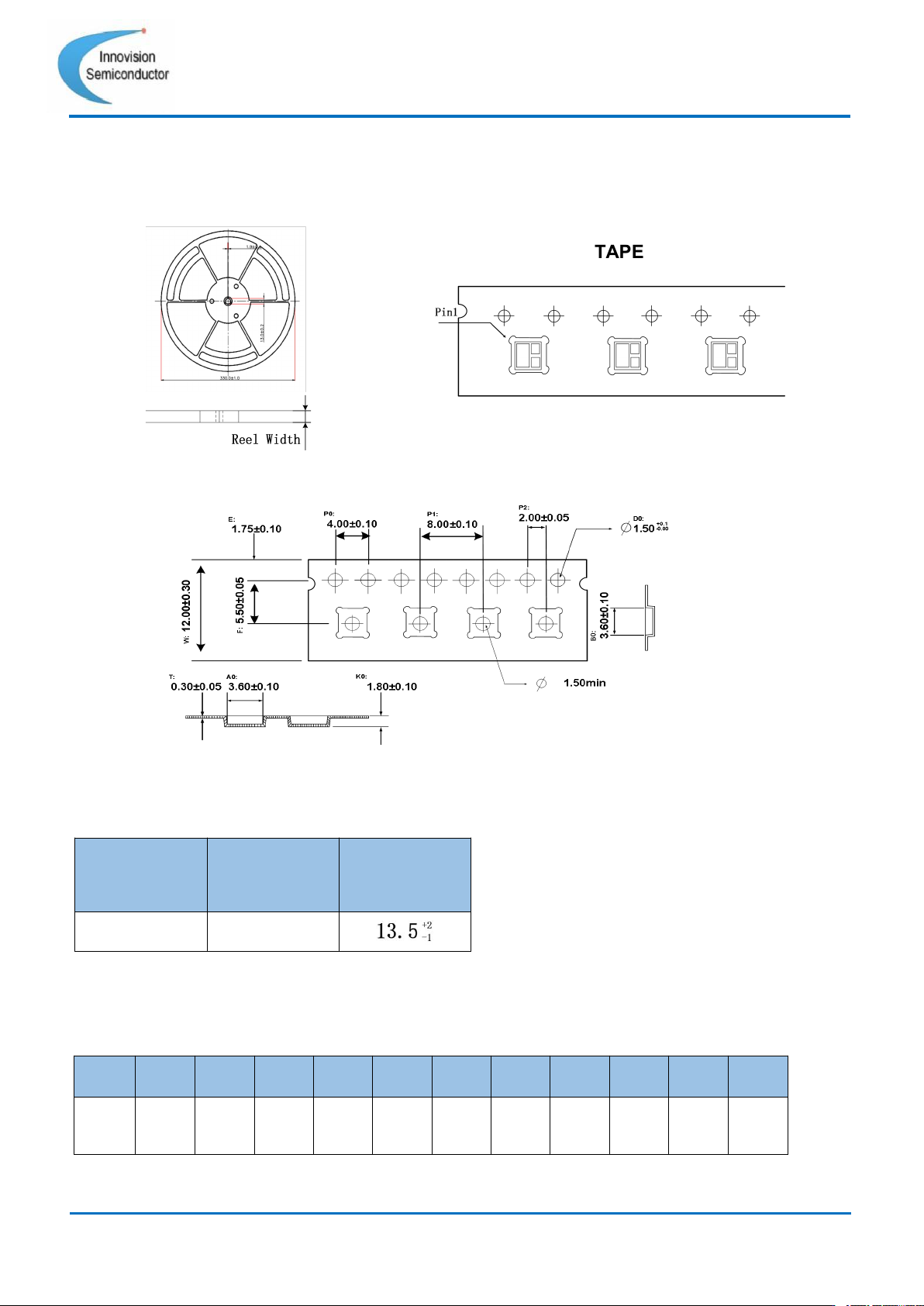

Tape And Reel Information
KEY PARAMETER LIST OF TAPE AND REEL
Package
Type
Reel
Diameter
(inch)
Reel Width
（mm）
3.3 x 3.3
13″
ITEM
W
A0
B0
K0
P0
P1
P2
F
E
D0
T
DIM
12.00
±0.30
3.60
±0.10
3.60
±0.10
1.80
±0.10
4.00
±0.10
8.00
±0.10
2.00
±0.10
5.50
±0.05
1.75
±0.10
1.50
+0.10
- 0.00
0.30
±0.05
REEL
DIMENSIONS
TAPE
DIMENSIONS
NOTE:
1、CARRIER TAPE COLOR:BLACK.
2、COVER TAPE WIDTH : 5.5±0.10.
3、COVER TAPE COLOR : TRANSPARENT.
4、10 SPROCKET HOLE PITCH CUMULATIVE TOLERANCE
± 0.20MAX.
5、CAMBER NOT TO EXCEED 1MM IN 100MM.
6、MOLD#2X3X0.75/0.85.
7 、 BAN TO USE THE LEVEL 1 ENVIRONMENT-RELATED
SUBSTANCES OF JCET PRESCRIBING.
38
Innovision Semiconductor
Preliminary Datasheet
ISM6636A/B
Rev1.10 01/2023
Revision History
REV.
Date
Description
1.0
2022.04.26
First version datasheet.
1.01
2022.07.05
Correction register description Vout_Sel default code.
Add description of soft start rate when Vout Range Select = 1.
1.02
2022.08.22
Add description of typical Fsw and accuracy in EC table.
Add description of Fsw in Functional Description.
1.03
2022.08.25
Correction the description of over current protection.
1.04
2022.10.10
Correction the description of over current protection.
Correction the SS, OC, Load transient, efficiency, load regulation,
temperature in typical performance.
Correction the top marking.
Add the val OC and IOUT OC in EC table.
1.05
2022.10.13
Correction the description of Vout_sel,SS_rate, Vout_Report ,
register.
Correction the description of Vout byte register.
Correction the SS_rate in Soft-start Operation.
Correction the I
IN
(DYN) in EC table.
Correction the Tape And Reel Infotmation.
1.10
2023.1.11
Remove Base_address register.
Change ELECTRICAL CHARACTERISTICS:
Delete VCC Ishort.
REN condition.
I2C parameter.
Mark IIN (DYN), Minimum On-Time, Minimum Off-Time, I2C
parameter, TBLK(HICCUP), TOVPDEL with "guaranteed by
design but not tested in production".
SS condition.
IPG typ.
VCC, VLN condition.
VLD condition, add VIN = 12V.
VLD Max.
VOUT condition.
Change Soft start figure.
Change Register Description:
ISM6636A default Ramp_Amplitude changed to 0110,
39
Innovision Semiconductor
Preliminary Datasheet
ISM6636A/B
Rev1.10 01/2023
ISM6636B default Ramp_Amplitude changed to 0111.
Change Soft Start_Rate.
Change Vout_Report range.
Change Iout_Report range.
Change output voltage setting range.
Change input voltage range.
Change pin name in Absolute Maximum Ratings.
Change header.
Change Typical Application Circuit.
Change ADC Telemetry Reporting Min/Max Corresponding Binary
and Hexadecimals.
Change Peak package body temperature (TP) in Tape And Reel
Information.
Delete the information of ISM6636C.
