4-8
AKBEG-ID
Program Type Setting List
Table D1
No. Type Name
Measured
Models
Measurement
1 GT-08080-8×2_ORG / XY
GT-08080
Measurement of Origin and Feeder X/Y Offset
2 GT-08080-8×2_XY Measurement of Only Feeder X/Y Offset
3 GT-08081-8×2_ORG / XY
GT-08081
Measurement of Origin and Feeder X/Y Offset
4 GT-08081-8×2_XY Measurement of Only Feeder X/Y Offset
5 GT-08082-8×2_ORG / XY
GT-08082
Measurement of Origin and Feeder X/Y Offset
6 GT-08082-8×2_XY Measurement of Only Feeder X/Y Offset
7 GT-08083-8×2_ORG / XY
GT-08083
Measurement of Origin and Feeder X/Y Offset
8 GT-08083-8×2_XY Measurement of Only Feeder X/Y Offset
9 GT
-12160-16×4_ORG / XY
GT
-12160
Measurement of Origin and Feeder X/Y Offset
10 GT-12160-16×4_XY Measurement of Only Feeder X/Y
Offset
11 GT-24320-32×4_ORG / XY
GT
-24320
Measurement of Origin and Feeder X/Y Offset
12 GT-24320-32×4_XY Measurement of Only Feeder X/Y
Offset
13 GT-44560-44×4_ORG / XY
GT
-44560
Measurement of Origin and Feeder X/Y Offset
14 GT-44560-44×4_XY Measurement of Only Feeder X/Y Offset
21 GD-08080-8×2_ORG / XY
GD-08080
Measurement of Origin and Feeder X/Y Offset
22 GD-08080-8×2_XY Measurement of Only Feeder X/Y Offset
23 GD-08081-8×2_ORG / XY
GD-08081
Measurement of Origin and Feeder X/Y Offset
2
4 GD-08081-8×2_XY Measurement of Only Feeder X/Y
Offset
25 GD-08082-8×2_ORG / XY
GD-08082
Measurement of Origin and Feeder X/Y Offset
26 GD-08082-8×2_XY Measurement of Only Feeder X/Y Offset
27 GD-08083-8×2_ORG / XY
GD-08083
Measurement of Origin and Feeder X/Y Offset
28 GD-08083-8×2_XY Measurement of Only Feeder X/Y Offset
29 GD-12160-16×
4
_ORG / XY
GD-12160
Measurement of Origin and Feeder X/Y Offset
30 GD-12160-16×4
_XY Measurement of Only Feeder X/Y Offset
31 GD-24
320-32×4_ORG / XY
GD-24320
Measurement of Origin and Feeder X/Y Offset
32 GD-24
320-32×4_XY Measurement of Only Feeder X/Y Offset
33 GD-44
560-44×4_ORG / XY
GD-44560
Measurement of Origin and Feeder X/Y Offset
34 GD-44560-44×4_XY Measurement of Only Feeder X/Y Offset
0809-003
2. Feeder Measurement
4-8-1
AKBEG-ID
Program Type Setting List
Table D1-1
No. Type Name
Measured
Models
Measurement
41 GT-18080-8×2_ORG / XY
GT-08080
Measurement of Origin and Feeder X/Y Offset
42 GT
-18080-8×2_XY Measurement of Only Feeder X/Y Offset
43 GT
-18081-8×2_ORG / XY
GT-08081
Measurement of Origin and Feeder X/Y Offset
44 GT-18081-8×2_XY Measurement of Only Feeder X/Y Offset
4
5 GT
-18082-8×2_ORG / XY
GT-08082
Measurement of Origin and Feeder X/Y Offset
46 GT
-18082-8×2_XY Measurement of Only Feeder X/Y Offset
47 GT
-18083-8×2_ORG / XY
GT-08083
Measurement of Origin and Feeder X/Y Offset
48 GT
-18083-8×2_XY Measurement of Only Feeder X/Y Offset
49
GT-12161-16×4_ORG / XY
GT-12160
Measurement of Origin and Feeder X/Y Offset
50 GT
-12161-16×4_XY Measurement of Only Feeder X/Y
Offset
51 GT-24321-32×4_ORG / XY
GT
-24320
Measurement of Origin and Feeder X/Y Offset
52 GT-24321-32×4_XY Measurement of Only Feeder X/Y
Offset
53 GT-44561-44×4_ORG / XY
GT
-44560
Measurement of Origin and Feeder X/Y Offset
54 GT-44561-44×4_XY Measurement of Only Feeder X/Y Offset
61 GD-18080-8×2_ORG / XY
GD-08080
Measurement of Origin and Feeder X/Y Offset
62 GD-18080-8×2_XY Measurement of Only Feeder X/Y Offset
63 GD-18081-8×2_ORG / XY
GD-08081
Measurement of Origin and Feeder X/Y Offset
6
4 GD-18081-8×2_XY Measurement of Only Feeder X/Y
Offset
65 GD-18082-8×2_ORG / XY
GD-08082
Measurement of Origin and Feeder X/Y Offset
66 GD-18082-8×2_XY Measurement of Only Feeder X/Y Offset
67 GD-18083-8×2_ORG / XY
GD-08083
Measurement of Origin and Feeder X/Y Offset
68 GD-18083-8×2_XY Measurement of Only Feeder X/Y Offset
69 GD-12161-16×
4
_ORG / XY
GD-12160
Measurement of Origin and Feeder X/Y Offset
70 GD-12161-16×4
_XY Measurement of Only Feeder X/Y Offset
71 GD-24
321-32×4_ORG / XY
GD-24320
Measurement of Origin and Feeder X/Y Offset
72 GD-24
321-32×4_XY Measurement of Only Feeder X/Y Offset
73 GD-44
561-44×4_ORG / XY
GD-44560
Measurement of Origin and Feeder X/Y Offset
74 GD-44561-44×4_XY Measurement of Only Feeder X/Y Offset
0809-001
2. Feeder Measurement
4-9
AKBEG-ID
(4) Press the [Meas] button. The "Measurement" window opens.

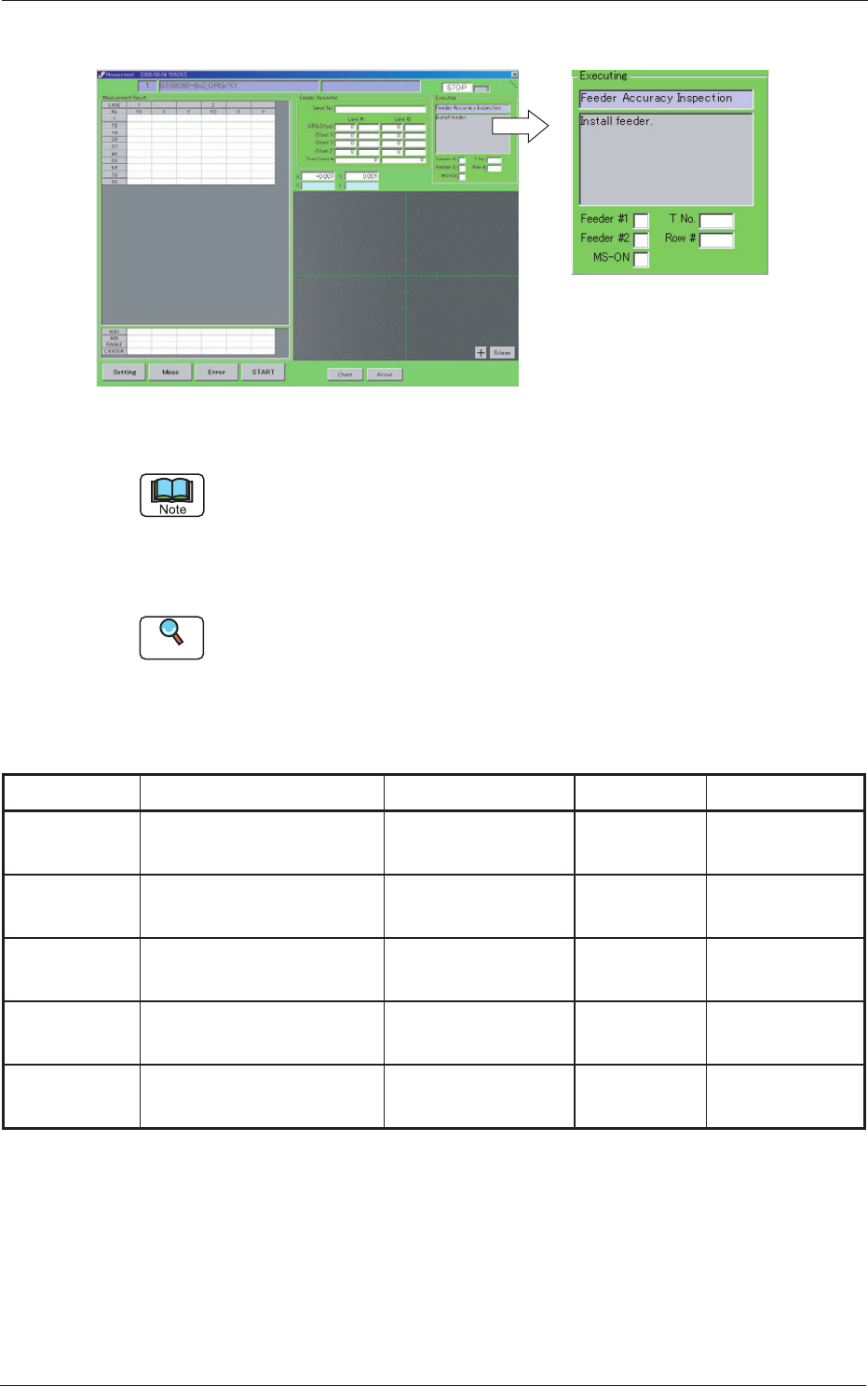

Fig. D10 "Measurement" Window
(a) Use the following master tape respectively for each model.
(b) A master tape is required to be purchased for the measurement.
Contact the marketing department or sales agency of Hitachi High-
Technologies for the details on the purchase arrangements.
Reference
(a) Refer to "6. "Measurement" Window" in "Section 3" for the details of
the "Measurement" window.
(b) Refer to "2.4 Tape Guide and Support Suppressor" in the instruction
manual "Tape Feeders for GXH Series" for details.
Table D2
Models Master Tape JG Nos. Part No. Tape Width Required Q'ty
GT-*808*
GD-*808*
JG-0009-12 630 138 8625 8 mm 2 pcs.
GD-18083
JG-0009-15 630 167 8344 8 mm 2 pcs.
GT-1216*
GD-1216*
JG-0009-4 630 096 5582 16 mm 1 pc.
GT-2432*
GD-2432*
JG-0009-6 630 096 5599 32 mm 1 pc.
GT-4456*
GD-4456*
JG-0009-8 630 134 6601 44 mm 1 pc.
0809-003
2. Feeder Measurement
