1.1 Procedures for Attachment of Camera Unit and
Detachment of Fixtures
1.1.1 Required Tools
● Hex-Head Wrenches for M3 and M4
● Cutting Nipper
1.1.2 Procedure for Attachment of Camera Unit
Procedure

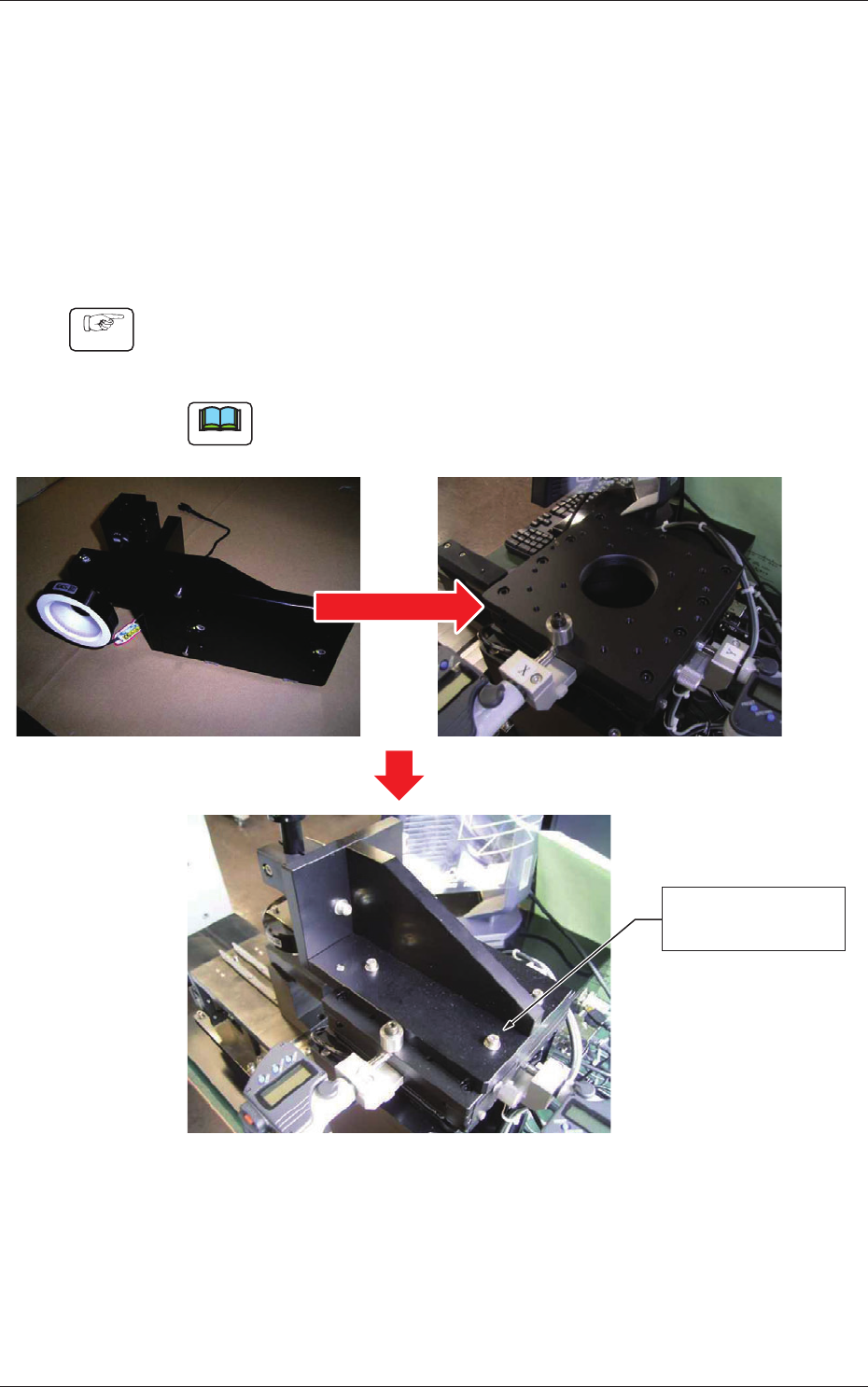

(1) Place the camera unit on the X/Y stage of the jig body and temporarily
x it on the X/Y stage with four bolts (SW + FW) having M4L20
hexagonal recessed sockets (accessory parts).
Note
Before assembling it on the X/Y stage, make sure that there is no dust and dirt on
the mounting surface.
4-M4L20 (SW + FW)
Temporary Fixing
Fig. B2
0809-002
1.1 Procedures for Attachment of Camera Unit and Detachment of Fixtures
2-3
AKBEG-ID
(2) Push the side face of the camera assembly against the pilot pin on the
X/Y stage and the pilot pin on the camera assembly bottom against the
side face of the X/Y stage for rm mounting.
Push the side face of
the camera assembly
against the pilot pin
on the X/Y stage.
Push the pilot pin of
the camera assembly
bottom against the
side face of the X/Y
stage.
Fig. B3
(3) After positioning, rmly tighten the four nuts (M4L20).
Tightening Torque: 3.00 to 3.66 N
•
m (30.6 to 37.4 kgf
•
cm)
After tightening the nuts, make sure that there is no clearance between the pin
and the pushed (mating) surface.
When a clearance is left, follow the above-described steps again, starting with
Step (2).
Firm Tightening of
Four Nuts (M4L20)
Fig. B4
1.1 Procedures for Attachment of Camera Unit and Detachment of Fixtures
0809-003
2-4
AKBEG-ID
(4) Fasten the cables with tie wraps.
Adjust the tie wraps to the location of the tie mounts and x them on
the tie mounts after tightening the cable ties.
Tie Mount
Bundle
Fig. B5
The cameral cable should also be bundled and xed on the tie mounts
using the tie wraps.
Camera Cable
Fig. B6
1.1 Procedures for Attachment of Camera Unit and Detachment of Fixtures
0809-002
