2-1 1 AKBEG-ID 2. How to start and end the system 2.1 Starting the Program (1) Set the power switch of the electrical box to "ON" a nd start the personal computer . The program starts up automatically and the &…
2-10
AKBEG-ID
1.3.1 Replacement of Battery in Micrometer
(1) Put a coin, etc., in the groove of the battery lid and turn it in the
A-marked direction (counterclockwise) in the gure below until the lid
comes off.
(2) Take out the old battery.
(3) Put a new battery and set the lid. After that, turn the lid in the B-marked
direction (clockwise) to secure.
Notice
(a) When the battery is reset, the reference position is cleared.
(b) SR44 (Silver Oxide Button Cell Battery) must be used.
(c) When an error display appears or an error message such as "No
Counting" is issued, remove the battery once and set it back in place.
AA
B
B
Battery Lid

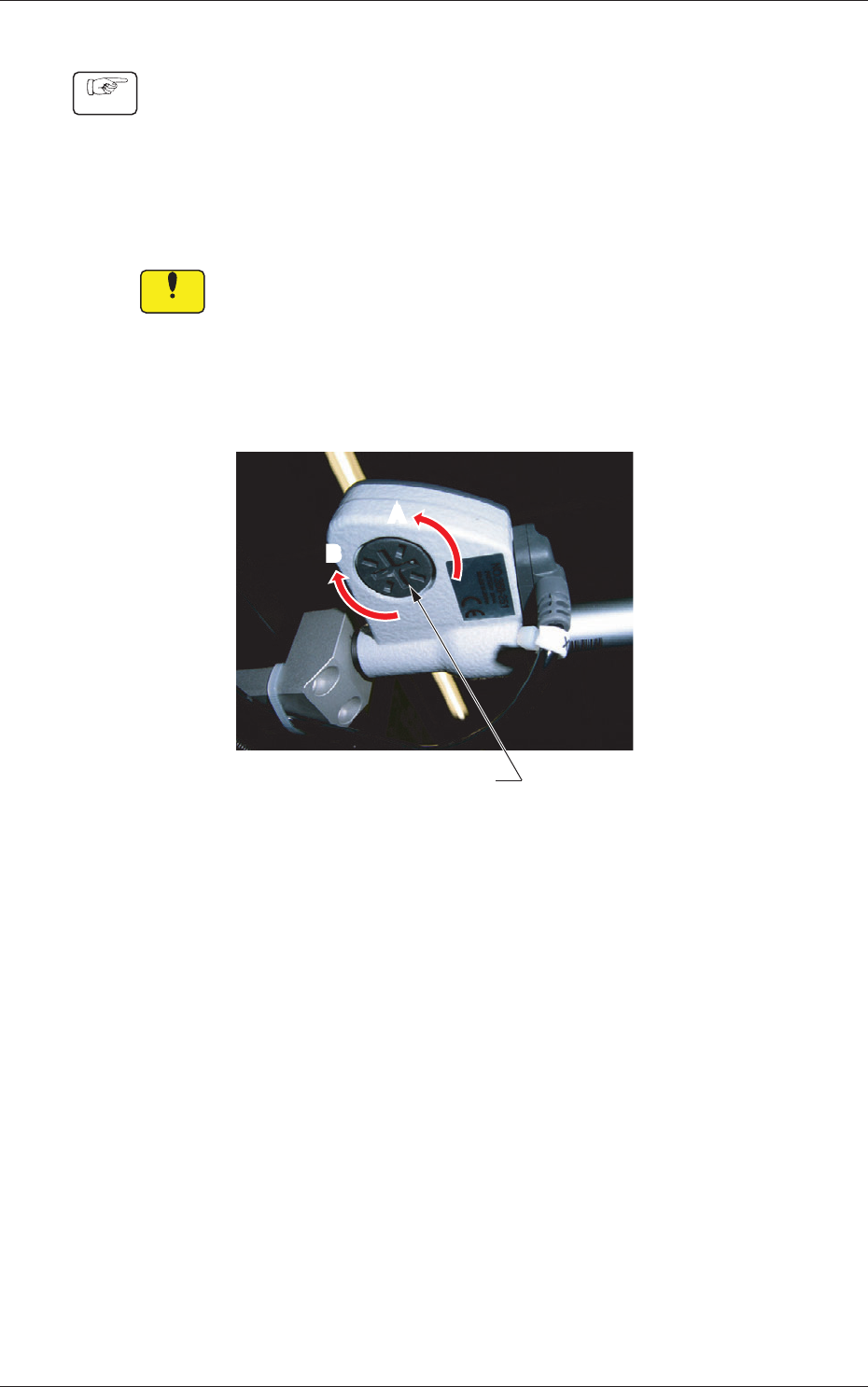

Fig. B14 Back Side of Micrometer
Procedure
1.3 Attachment of Micrometer
0809-002
2-11
AKBEG-ID
2. How to start and end the system
2.1 Starting the Program
(1) Set the power switch of the electrical box to "ON" and start the personal
computer. The program starts up automatically and the "Initial Master
Setting" window opens.
The displayed name of the feeder adjusting jig is different from the actual one.

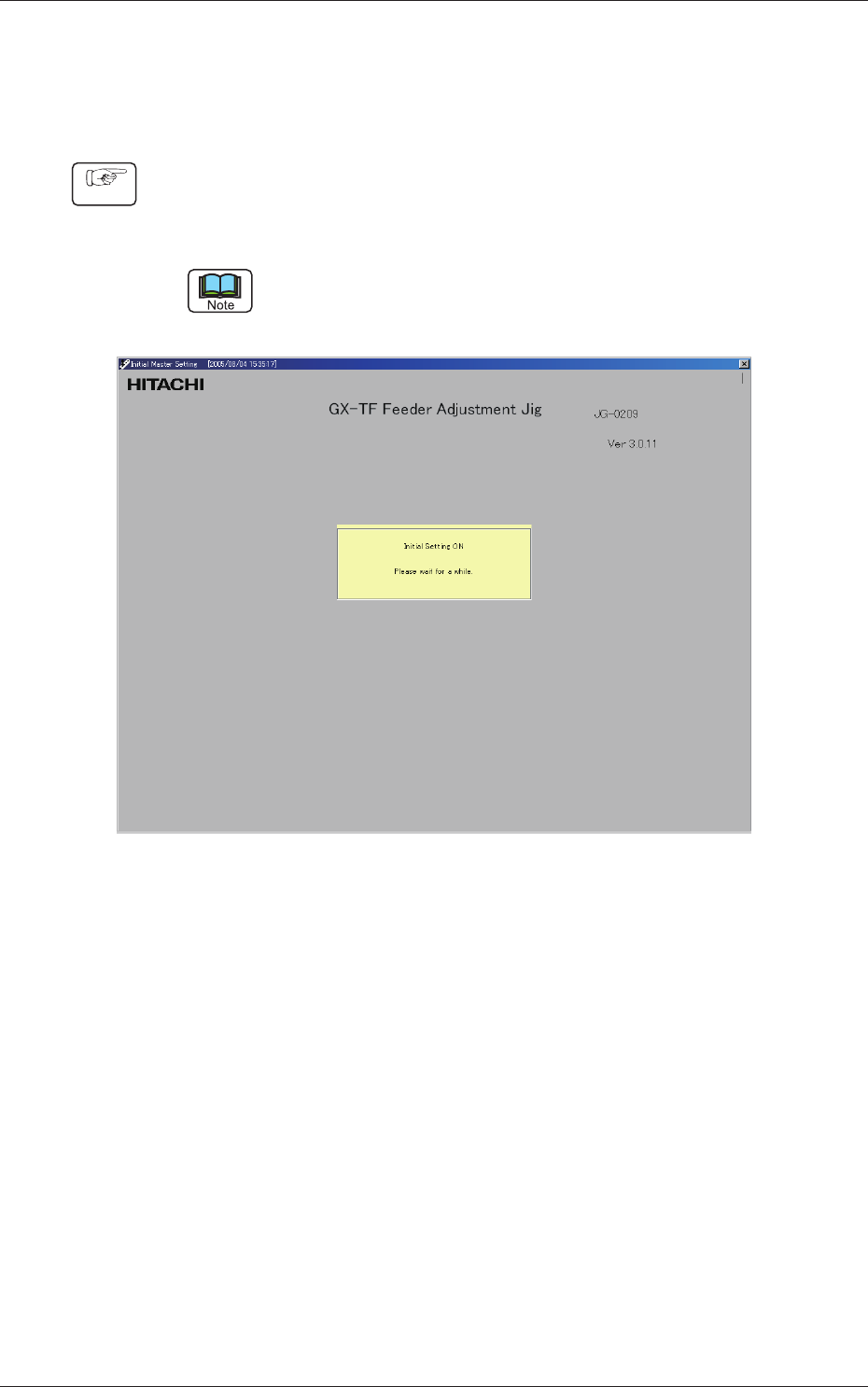

Fig. B15 "Initial Master Setting" Window
2. How to start and end the system
Procedure
0809-001
2-12
AKBEG-ID

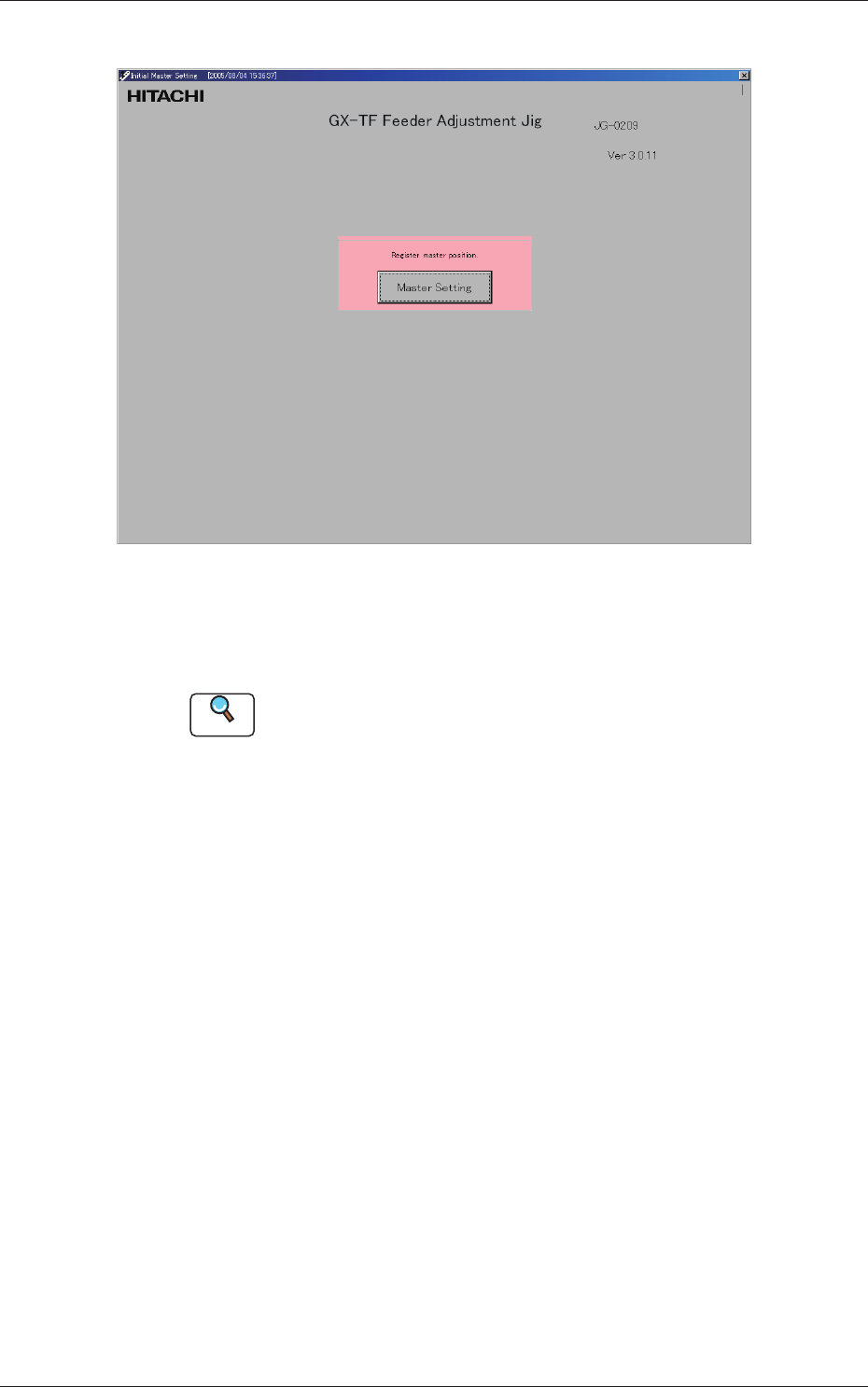

(2) After a few seconds, the [Master Setting] button appears.
Fig. B16
(3) Press the [Master Setting] button and proceed to the registration of the
master position (jig origin adjustment).
Reference
Refer to "1. Registration of Master Position (Jig Origin Adjustment)" in "Section
4" for how to adjust the jig to the origin position.
2.1 Starting the Program
0809-001
