3-18 AKBEG-ID 6. "Measurement" Window This window can be used to execute an accurate inspection of the feeder , view the results of the inspection, and create an accuracy table. When you press the [Meas] button…
3-17
AKBEG-ID
0508-001
(2) Outline of Each System Data
Control Mode
The set data is used to change the control mode.
"0" or "1" can be set.
0:
Through Mode
(Operator Conrmation Omitted at Accuracy Inspection)
1:
Step Mode
(Operator Conrmation Displayed)
Communication Timeout Value
Specify the time at which the "Communication Impossible" mode should
be detected in the RS232C serial communication.
Unit: seconds
Alarm Buzzer Mode
Specify the period of time during which the buzzer should sound when an
error has occurred.
When "0" is set, the buzzer keeps on sounding until it is stopped with the
buzzer button.
"0" or "0.1 to 600.0 seconds (10 minutes) can be set.
Log Data Folder
Specify the folder in which the inspection data log le should be saved.
Up to 62 characters can be used for the registration.
# of Feed T
imes from Sprocket
Specify the number of master tape idle feeding times required at the start
of the inspection.
A value "0 to 10" can be set.
Master Position #1 X and
Y/Master Position #2 X and Y
The set parameters represent the inspection positions of the master feeder.
5. "System Setting" Window
3-18
AKBEG-ID
6. "Measurement" Window
This window can be used to execute an accurate inspection of the feeder,
view the results of the inspection, and create an accuracy table.
When you press the [Meas] button located at the bottom of each window, the
"Measurement" window opens.
Description of Each Button
[5]
[6]
[3]
[4][1]
[2]

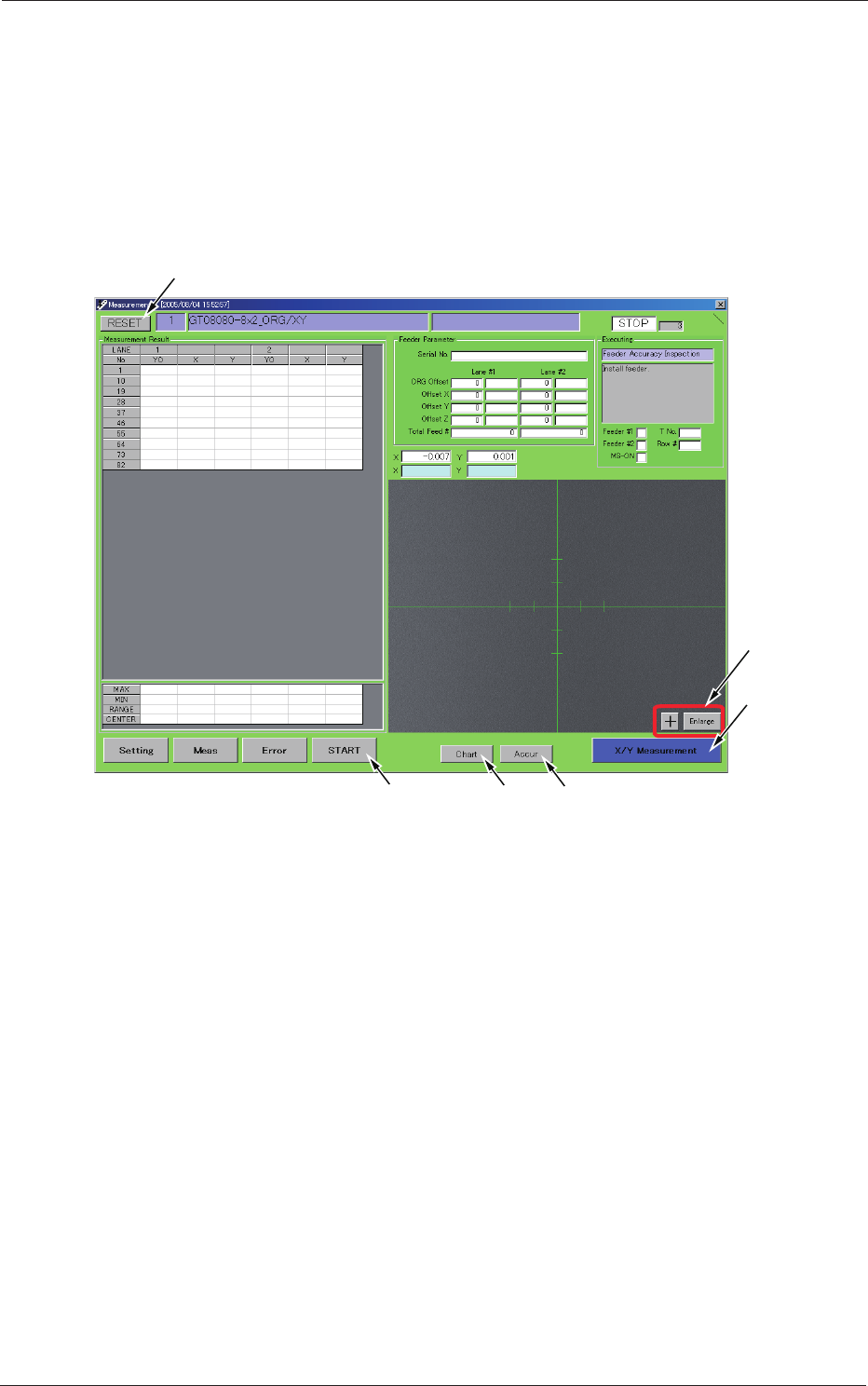

Fig. C15 "Measurement" Window
[1]
When pressed, this button starts the measurement.
While the measurement is performed, the label on the button is changed
to "ST
OP". When the [STOP] button is pressed, the measurement is
interrupted temporarily.
[2]
This represents that the measurement is interrupted.
This appears when the measurement is interrupted temporarily with the
[ST
OP] button in [1].
[3]
When pressed, this button opens the "Accuracy Measurement Table"
window.
[4]
When pressed, this button opens the "Chart" window
.
[5]
When pressed, this button opens or closes the image window
.
[6]
The current X and
Y positions are regarded as the results of each
measurement.
0508-001
6. "Measurement" Window
3-19
AKBEG-ID
Description of Each Displayed Items
[7]
[6]
[3]
[5]
[1][2]
[8][9]
[4]
Fig. C16
[1]
The displayed mark will be spinning while this program is running.
[2]
Displayed is the referential value of the sequence speed.
Ref.:
This value changes greatly according to the processed contents.
[3]
Displayed is the automatic running mode.
[RUN], [PAUSE], [ST
OP]
[4]
Displayed are the current execution mode and a message.
[5]
Displayed is the status of each signal that indicates whether or not
feeders are installed.
The box beside "Feeder 2" turns light blue (
) when the feeder is
installed.
The box beside "Feeder 1" turns light blue ( ) when the power is turned
"ON".
The box beside "MS-ON" turns light blue ( ) in the "Clamp" mode.
[6]
Displayed are the lane and pickup hole Nos. under inspection.
[7]
Displayed are the feeder parameters.
[8]
Displayed are the current X/Y
coordinates (address) of the table.
[9]
Displayed are the X/Y
coordinates (address) of the measurement
address (design value).
Type No. Type Name Serial No.
Fig. C17
0508-001
6. "Measurement" Window
