4-5 AKBEG-ID (6) Press the [Return] button in the "Master Setting" window . (7) The following message appears in the "Initial Master Setting" win- dow , indicating that the registration of the master …

4-4

AKBEG-ID

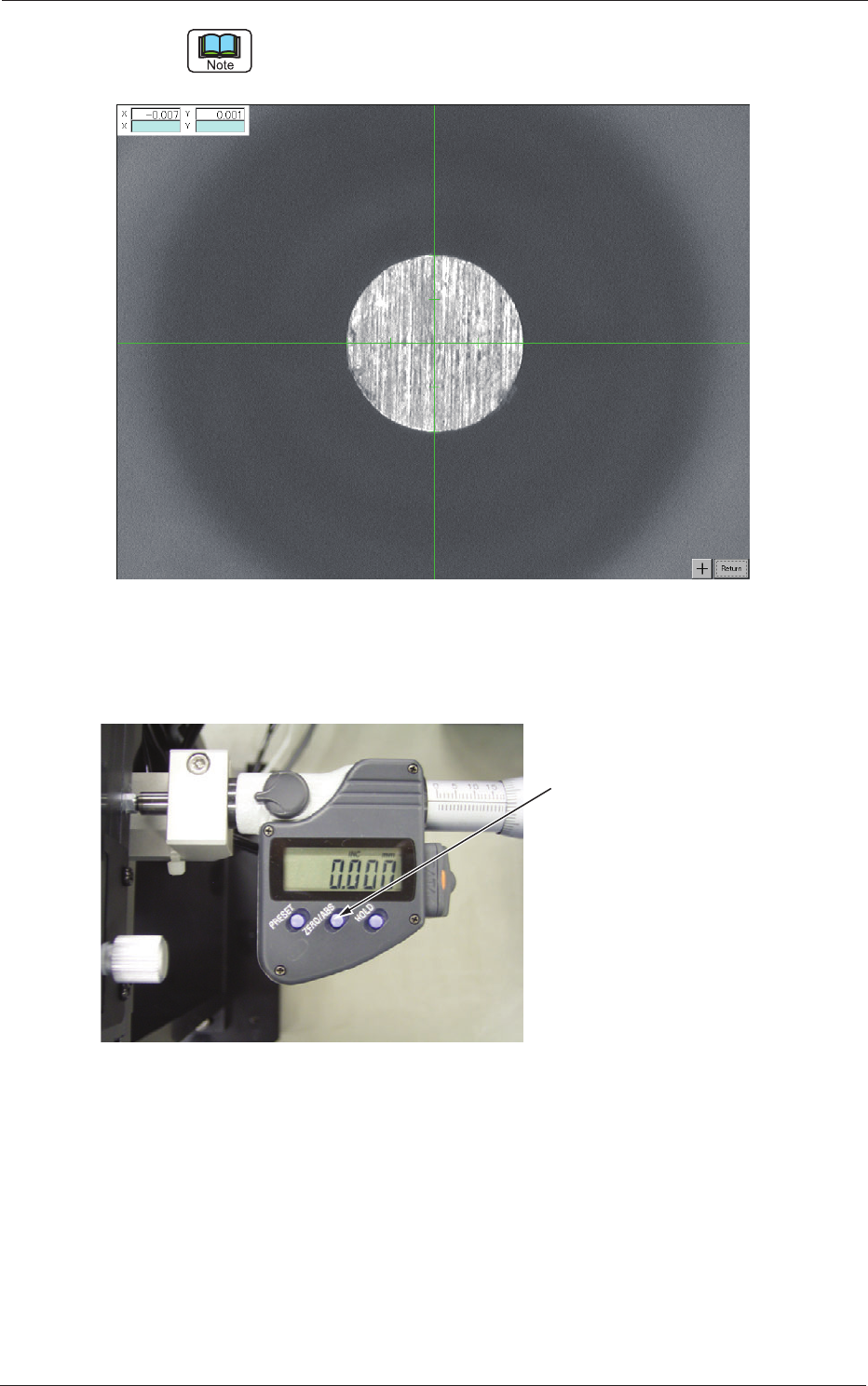

To enlarge the image, press the [Enlarge] button in the "Master Setting" window.

To get the original size, press the [Return] button.

Fig. D5

(5) Press the "ZERO/ABS" switch of the micrometer to reset the indi-

cated value of the micrometer head to "0.000".

"ZERO/ABS" Switch

Fig. D6 Micrometer

0508-001

1. Registration of Master Position (Jig Origin Adjustment)

4-5

AKBEG-ID

(6) Press the [Return] button in the "Master Setting" window.

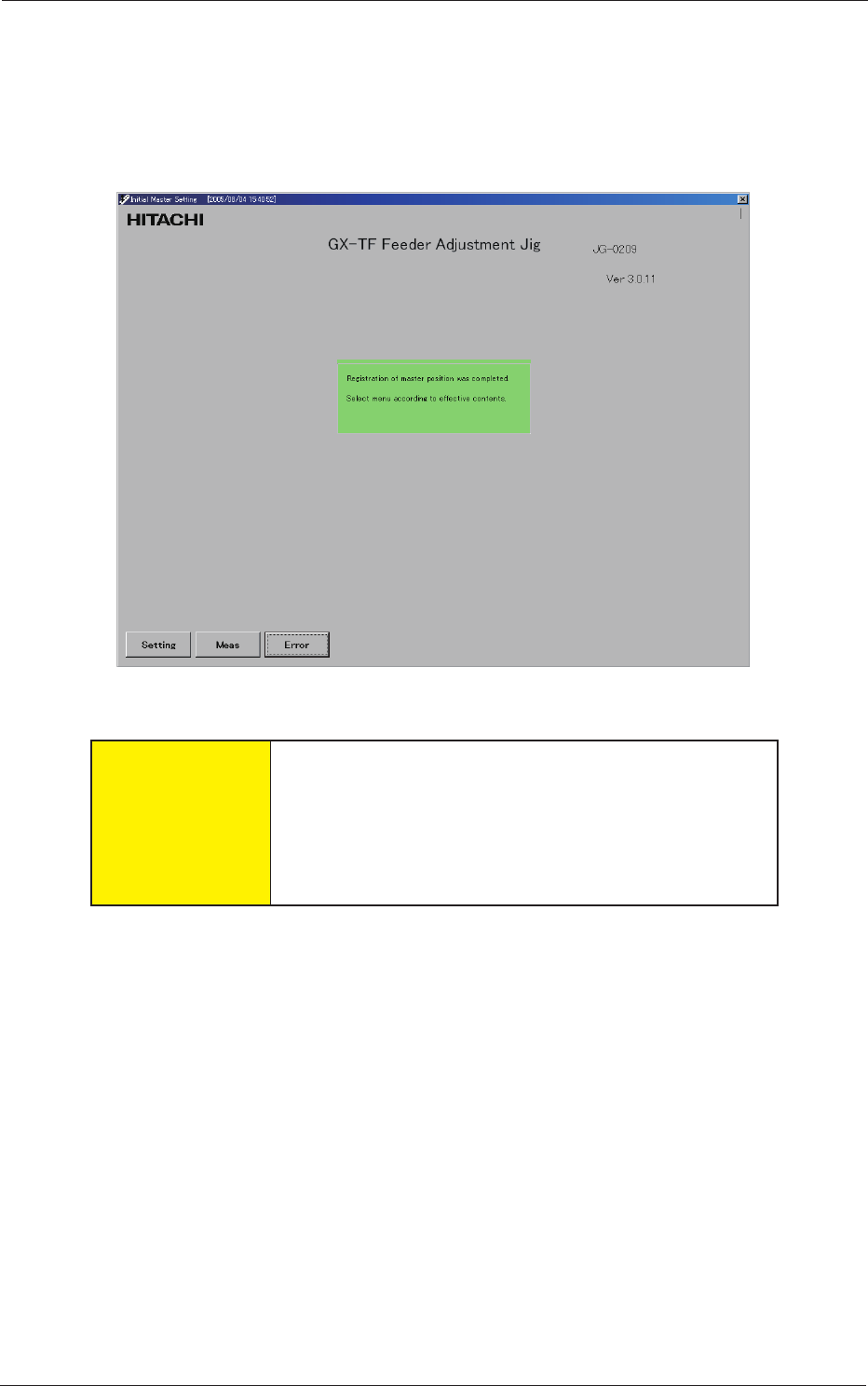

(7) The following message appears in the "Initial Master Setting" win-

dow, indicating that the registration of the master position is com-

pleted.

Detach the pickup position master from the jig.

Fig. D7

CAUTION

Be sure to slowly lift the pickup position master to

detach from the jig. Otherwise, the pickup position

master will come off abruptly and collide with the

camera used to capture an image of the pickup

position. The camera may be damaged.

0508-001

1. Registration of Master Position (Jig Origin Adjustment)

4-6

AKBEG-ID

2. Feeder Measurement

Notice

No feeder measurement can be performed unless the registration (jig

origin adjustment) of the master position is completed.

Procedure

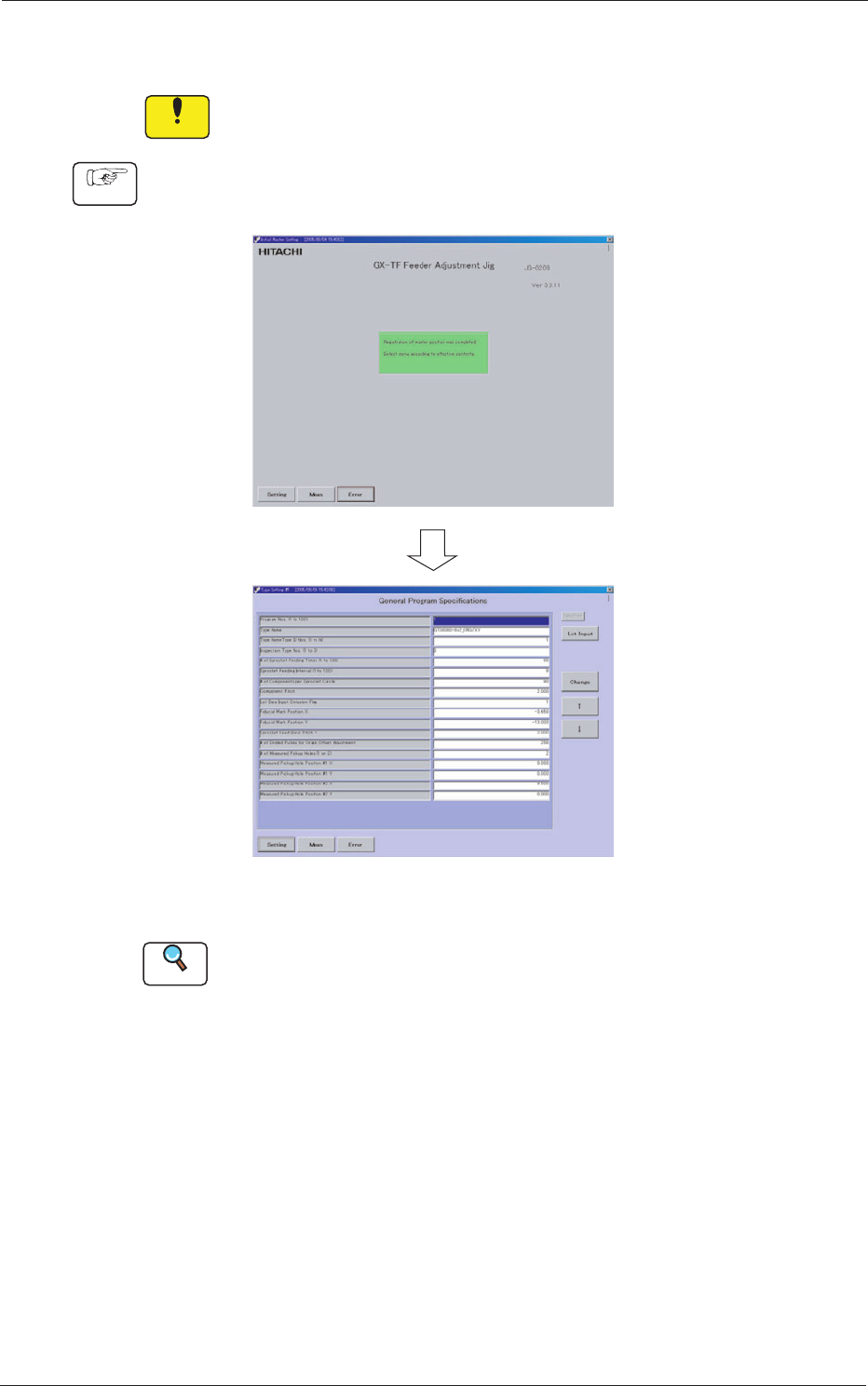

(1) When you press the [Setting] button in the "Initial Master Setting"

window, the "Type Setting #1" window opens.

Fig. D8 "Type Setting #1" Window

Reference

Refer to "4. "Type Setting" Window" in "Section 3" for details.

(2) Press the [Setting] button in the "Type Setting #1" window. The "Type

Listup" window opens.

0508-001

2. Feeder Measurement
