10 Maintenance Parts ■ Multi Camera Multi Camera & Light ■ Conveyor Unit Main Stopper 1 2 2 4 3 No. Part No. Part Name Q'ty Remarks Rank 1 KV7-M7510-00X HALF MIRROR 1 B 2 KV7-M7534-00X ADHESIVE T APE 2 B 3 KV7-M…
9
Maintenance Parts
JUL./2004
Nozzle Selection
D Head Nozzle
NOZZLE 2 SHOT 1608
Type 131
NOZZLE 2 SHOT 3216
Type 132
NOZZLE 2 SHOT LARGE
Type 133Nozzle Type
13
456
7
8
Name
Size
NOZZLE 1 SHOT 0.4
Type 134 Type 135 Type 136Nozzle Type
Name
Size
NOZZLE HN04 ASSY
Type 139Nozzle Type
Name
Size
NOZZLE 1 SHOT 0.8 NOZZLE 1 SHOT 1.5
0.4
(
HOLE
)
2.4
0.8
0.5
(
HOLE
)
2.4
1.3
0.9
(
HOLE
)
3.2
1.8
1.5
(
HOLE
)
1.8
0.8
(
HOLE
)
1.6
0.4
(
HOLE
)
1.6
0.4
(
HOLE
)
2
No. Part No. Part Name Q'ty Remarks Rank
1 KW7-M7811-00X NOZZLE, 2 SHOT 1608 1 Type 131 A
2 KW7-M7812-00X NOZZLE, 2 SHOT 3216 1 Type 132 A
3 KW7-M7813-00X
NOZZLE, 2 SHOT LARGE
1 Type 133 A
4 KW7-M7814-00X NOZZLE, 1 SHOT 0.4 1 Type 134 A
5 KW7-M7815-00X NOZZLE, 1 SHOT 0.8 1 Type 135 A
6 KW7-M7816-00X NOZZLE, 1 SHOT 1.5 1 Type 136 A
7 KGK-M7836-00X NOZZLE, HN04 ASSY. 1 Type 139 A
8 KGK-M7819-00X BODY NOZZLE HN 1 for Type 139 A
4M Head Nozzle
2
NOZZLE 61A
ASSY
1435
NOZZLE 62A
ASSY
NOZZLE 64B
ASSY
NOZZLE 63A
7
6
2
No. Part No. Part Name Q'ty Remarks Rank
1 KV7-M7710-A1X NOZZLE 61A ASSY. 1 Type 61A A
2 90200-02J015 O-RING 5 A
3 KV7-M7720-A1X NOZZLE 62A ASSY. 1 Type 62A A
4 KV7-M7730-00X NOZZLE 63A 1 Type 63A A
5 KGV-M7740-A0X NOZZLE 64B ASSY. 1 Type 64B A
6 KGV-M7741-00X BODY NOZZLE 64B 1 Type 64B A
7 90990-17J013 O-RING 5 A
10

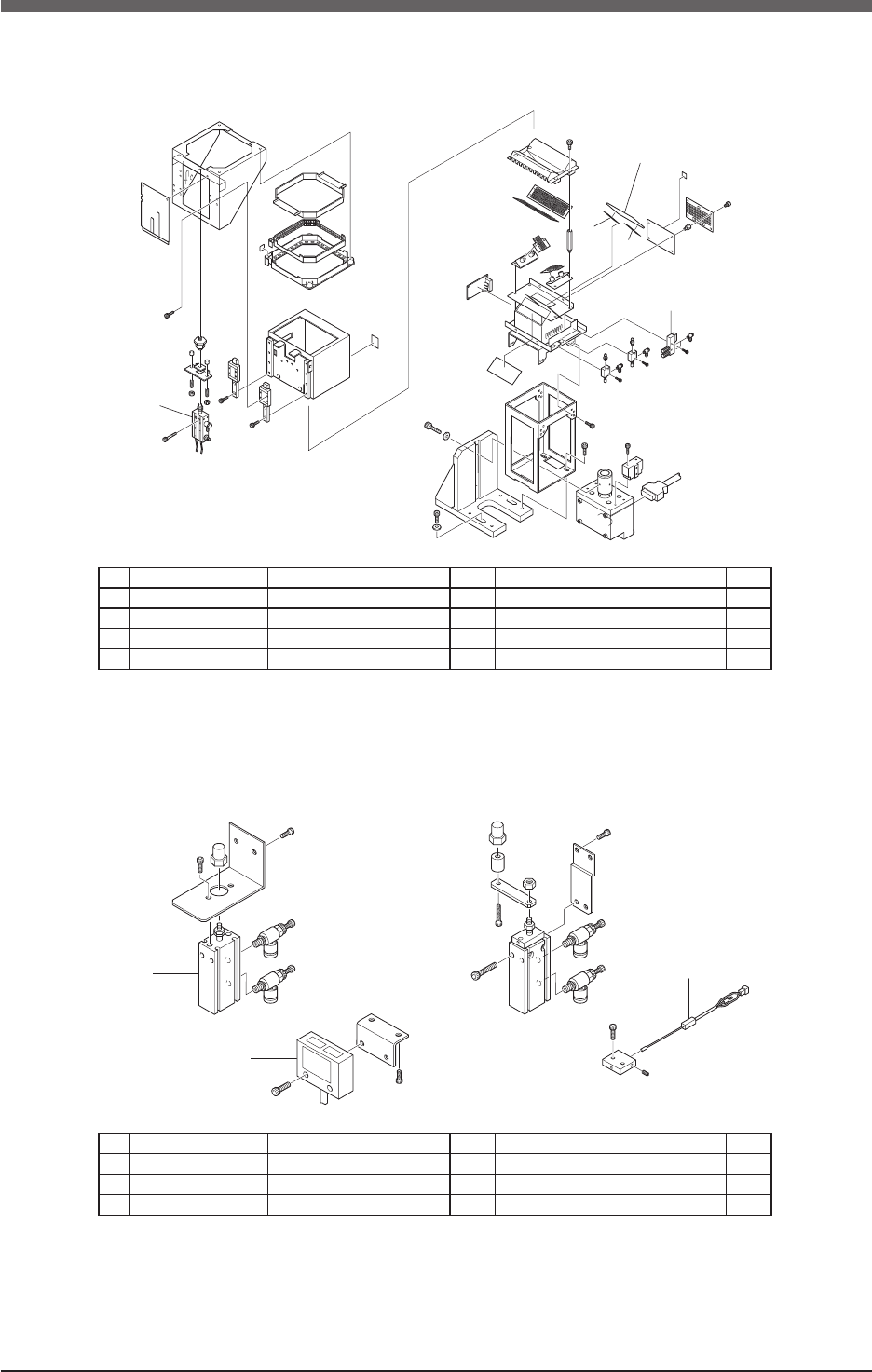

Maintenance Parts
■
Multi Camera
Multi Camera & Light
■
Conveyor Unit
Main Stopper
1
2
2
4
3
No. Part No. Part Name Q'ty Remarks Rank
1 KV7-M7510-00X HALF MIRROR 1 B
2 KV7-M7534-00X ADHESIVE TAPE 2 B
3 KV7-M7522-00X CYLINDER ASSY 1 B
4 KV7-M7538-00X VALVE 1 B
1
2
3
No. Part No. Part Name Q'ty Remarks Rank
1 KV7-M9283-00X CYL., YMDA16X35 1 B
2 KGK-M911D-00X SENSOR, SET POS. ASSY 2 BGS-2S15P B
3 KV7-M655F-A0X SENSOR ASSY. 1 Fiber Sensor B
11

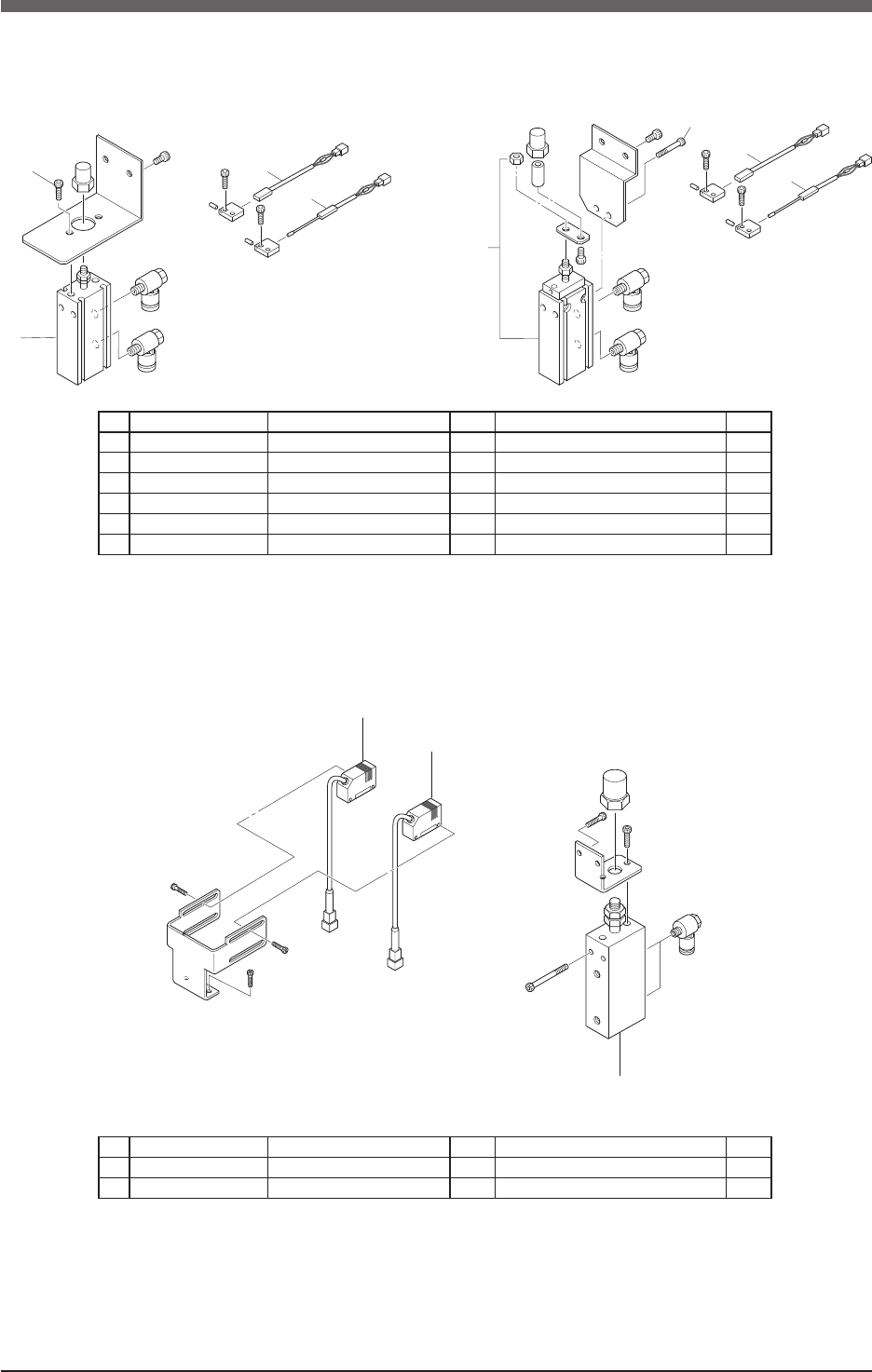

Maintenance Parts
■
Conveyor Unit
Sub Stopper
Exit Stopper
6
1
5
2
3
2
3
4
No. Part No. Part Name Q'ty Remarks Rank
1 KV7-M9283-00X CYL., YMDA16X35 1 B
2 KGK-M928A-02X SENSOR UP. 1 B
3 KGK-M928B-02X SENSOR LOW 1 B
4 91317-04008
BOLT HEX. SOCKET HEAD
4 B
5 KGK-M9283-00X CYL., YMDAL16X30 1 B
6 91317-04035
BOLT HEX. SOCKET HEAD
2 B
2
2
1
No. Part No. Part Name Q'ty Remarks Rank
1 KV7-M9283-00X CYL., YMDA16X35 1 B
2 KV7-M9283-00X SENSOR, 1-3 (L=1400) 2 HPB-A2L-010 (UP/LOW) B
