1 WF 2 TX-Series Maintenance Check head status C&P20 P/ CPP 5 min 2 / 2 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n a n c …

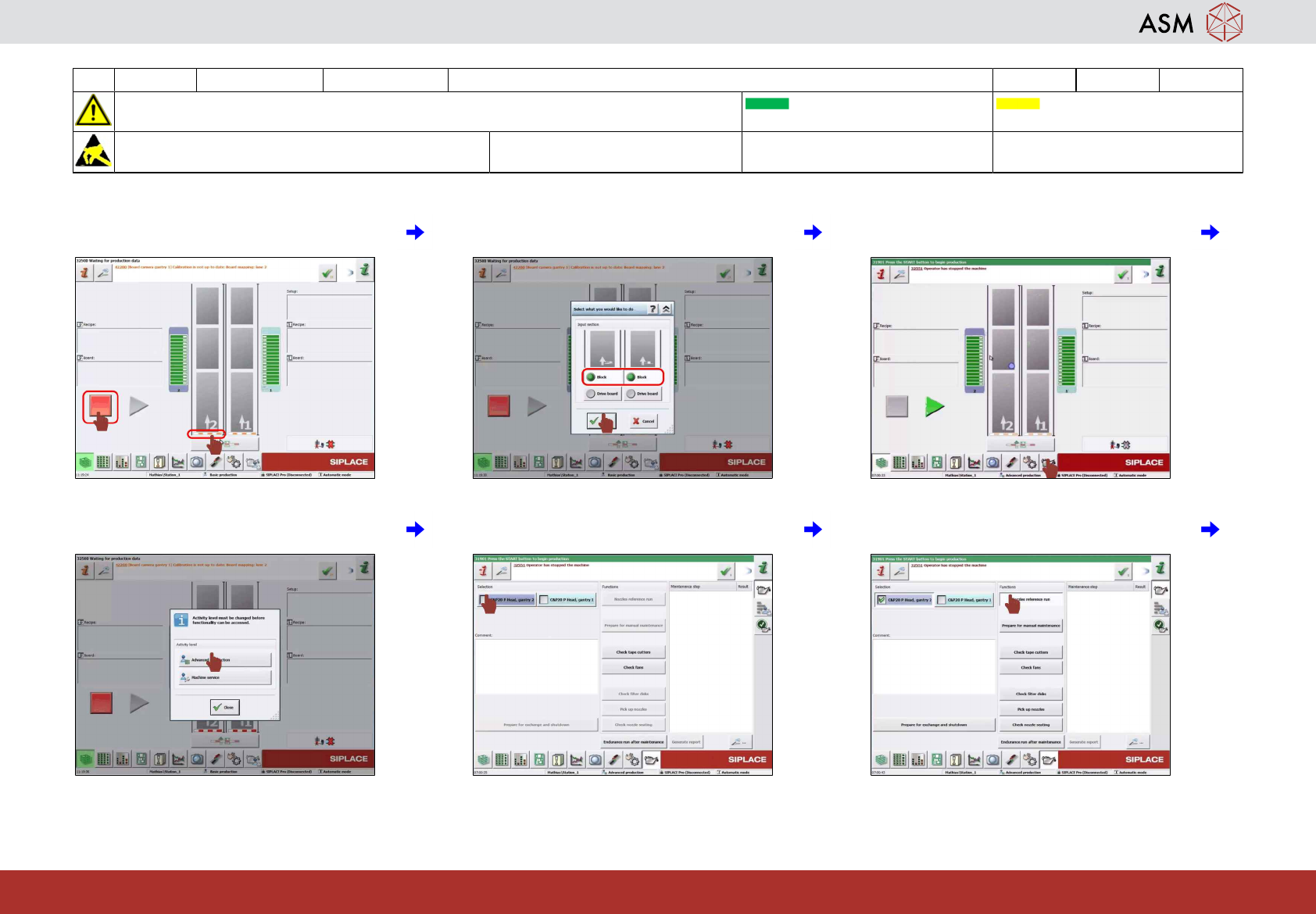

1 WF 2 TX-Series Maintenance Check head status C&P20 P/ CPP 5 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com
1 Stop production and click on "block trans-
port" icon.
2 Block both lanes and click "OK". 3 Click on "maintenance" icon.
4 Select "advanced production". 5 Select "head type" CPP and C&P20 P. 6 Click on "nozzle reference run" and record
any abnormal vacuum values.
1 WF 2 TX-Series Maintenance Check head status C&P20 P/ CPP 5 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com
7 Check results. 8 Click on "generate report" icon. 9 Edit comments and click "OK".
2 WF 2 TX-Series Maintenance Shut down and remove tables and exchange nozzles with JTF-ML 4 min 1 / 3
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part:
W2, W35
Consumables:
www.asm-smt.com
1 With JTF-ML: Without JTF-ML, please go
to next task.
2 Click on "prepare for exchange and shut-
down" icon.
3 Click on "shutdown machine" icon.
4 Press stop button. 5 Open the cover 2. 6 Press remove COT button.
