8 WF 2 TX-Series Maintenance Check and clean the magnetic surfaces and scale of X and Y-Axis 5 min 2 / 2 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n…

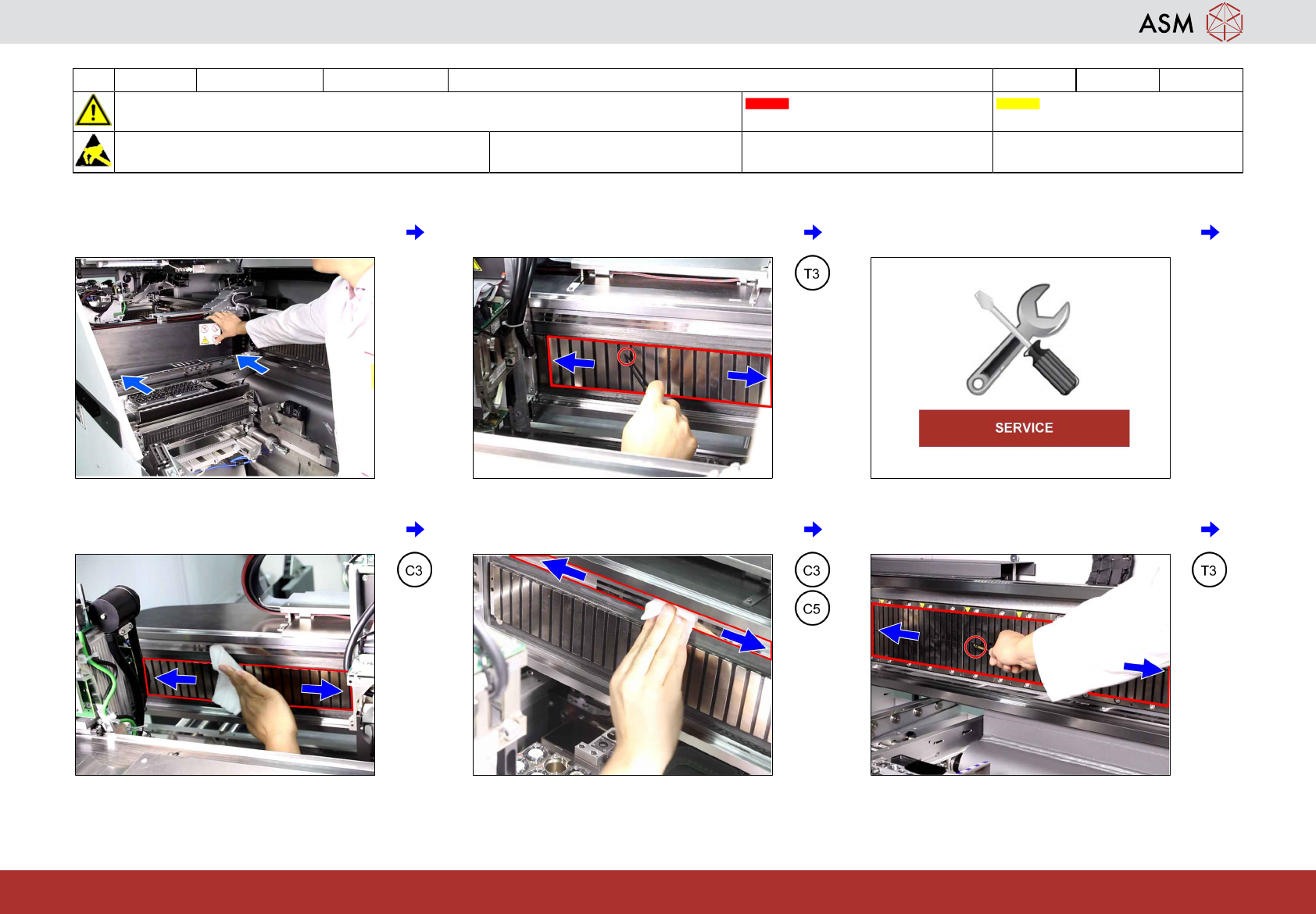

8 WF 2 TX-Series Maintenance Check and clean the magnetic surfaces and scale of X and Y-Axis 5 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T3
Wear Part: Consumables:
C3, C5
www.asm-smt.com
1 Move the gantries to the limit location 1. 2 Check X-Axis magnets for contamination
and damage.
3 If you see any damage contact service.
4 If OK clean the X-Axis magnets. 5 Clean the X-Axis scale. 6 Check Y-Axis magnets for contamination
and damage.
8 WF 2 TX-Series Maintenance Check and clean the magnetic surfaces and scale of X and Y-Axis 5 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T3
Wear Part: Consumables:
C3, C5
www.asm-smt.com
7 If you any damage contact service. 8 If OK clean the Y-Axis magnets. 9 Clean the Y-Axis scale.
10 Move the gantries to the limit location 2. 11 Repeat steps 2 to 10 for other gantry.
9 WF 2 TX-Series Maintenance Clean conveyors, lifting tables, gantry cables 4 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T1
Wear Part: Consumables:
C3
www.asm-smt.com
1 Clean gantry cables for Y-Axis. 2 Clean gantry cables X-Axis. 3 Move the gantries to the limit location 1
and repeat steps 1 to 2 for other gantry.
4 Vacuum all loose components on and
around the whole PCB conveyor.
