10 WF 2 TX-Series Maintenance Clean the stationary camera (CPP/ TH) 2 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C2
www.asm-smt.com

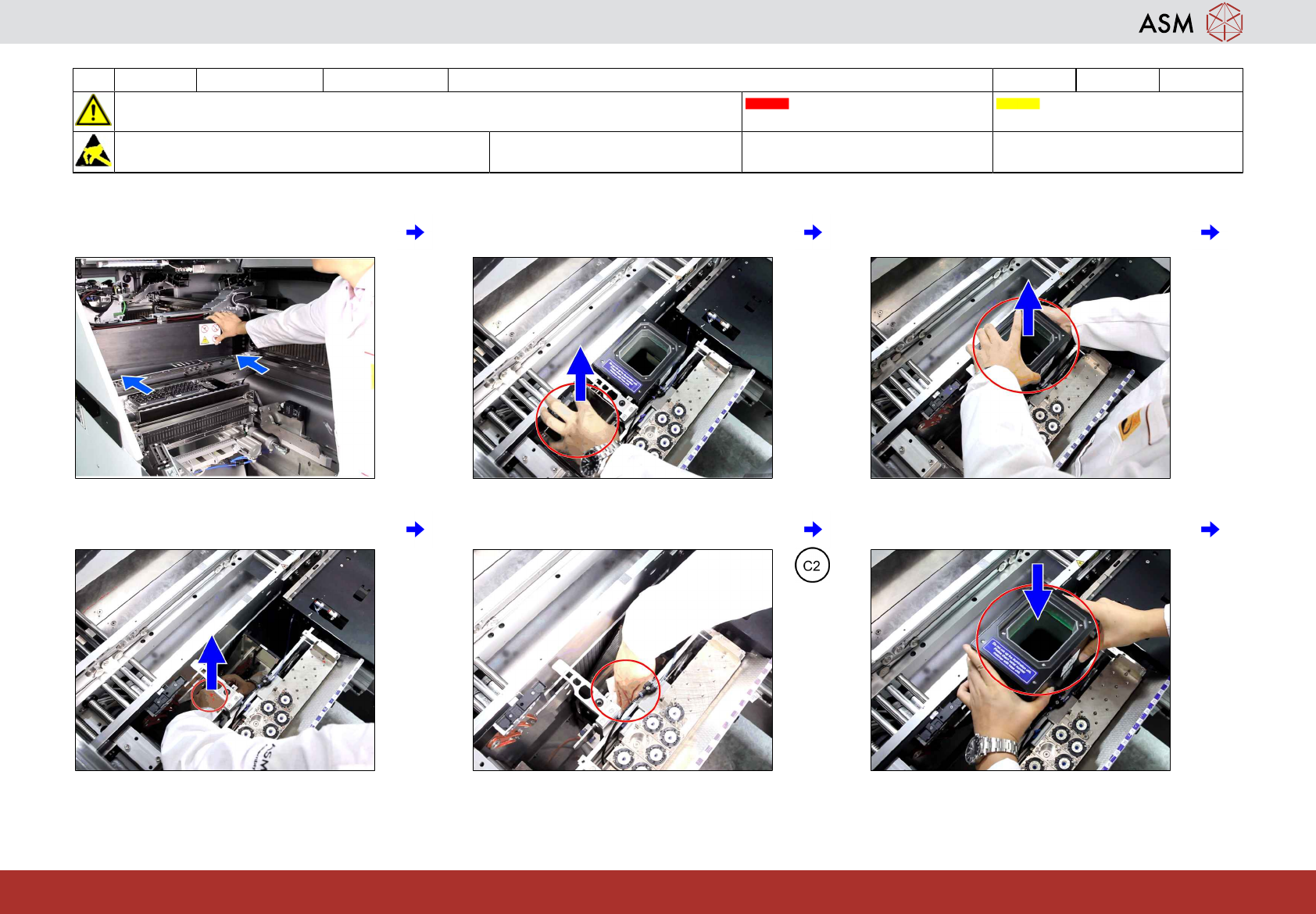

1 Move the gantries to the limit. 2 Remove component reject bin. 3 Take up the upper section of the station-
ary camera.
4 Remove any components. 5 Clean the slanted glass. 6 Refit the upper section of the camera.
10 WF 2 TX-Series Maintenance Clean the stationary camera (CPP/ TH) 2 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C2
www.asm-smt.com

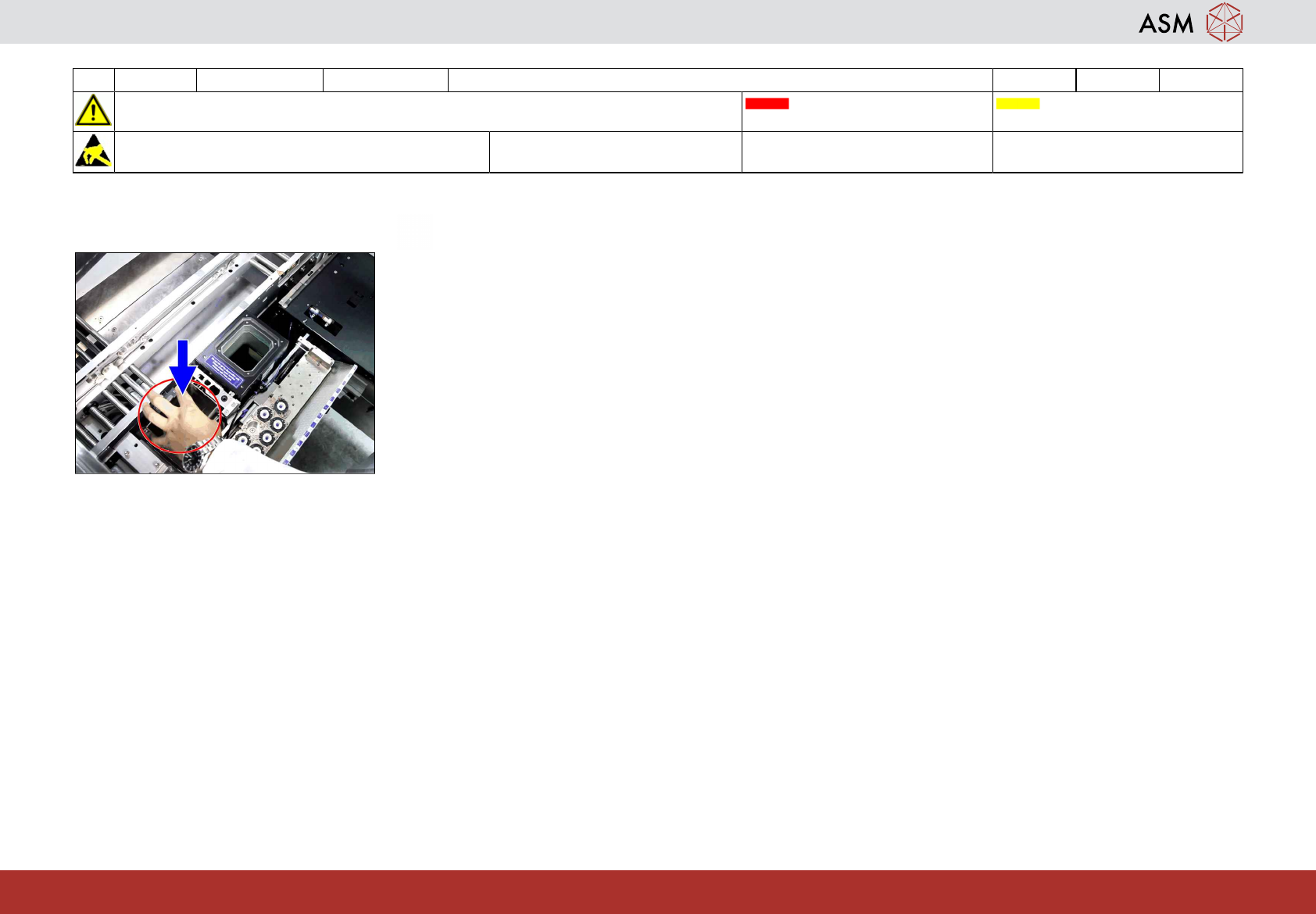

7 Return the component reject bin.
