12 WF 2 TX-Series Maintenance Switch on machine and return the tables with JTF-ML 6 min 2 / 2 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M …

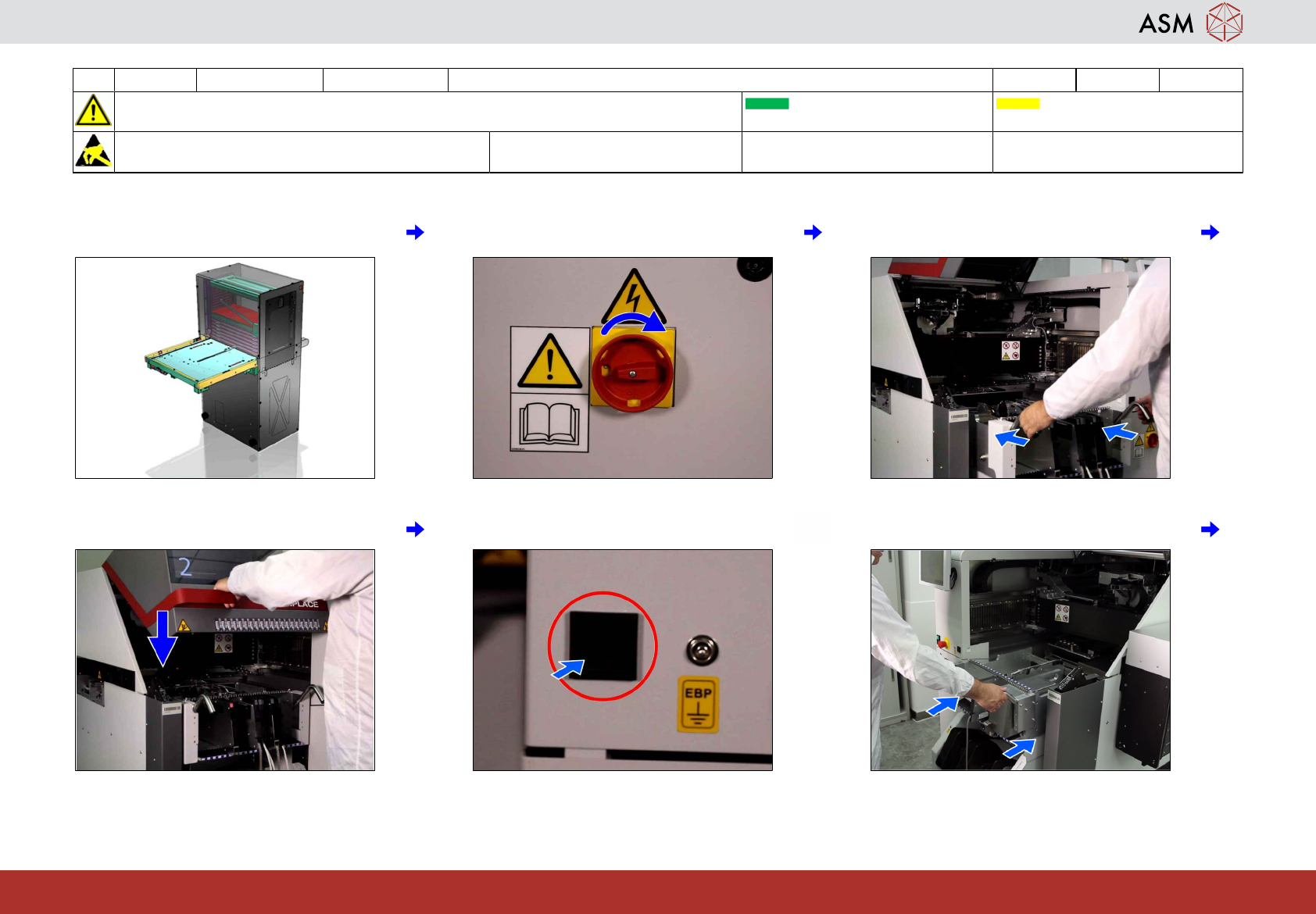

12 WF 2 TX-Series Maintenance Switch on machine and return the tables with JTF-ML 6 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com
1 With JTF-ML: Without JTF-ML, please go
to next task.
2 Switch on machine. 3 Return all COT 2.
4 Close the cover 2. 5 Press insert COT button to dock table. 6 Return all COT 1.

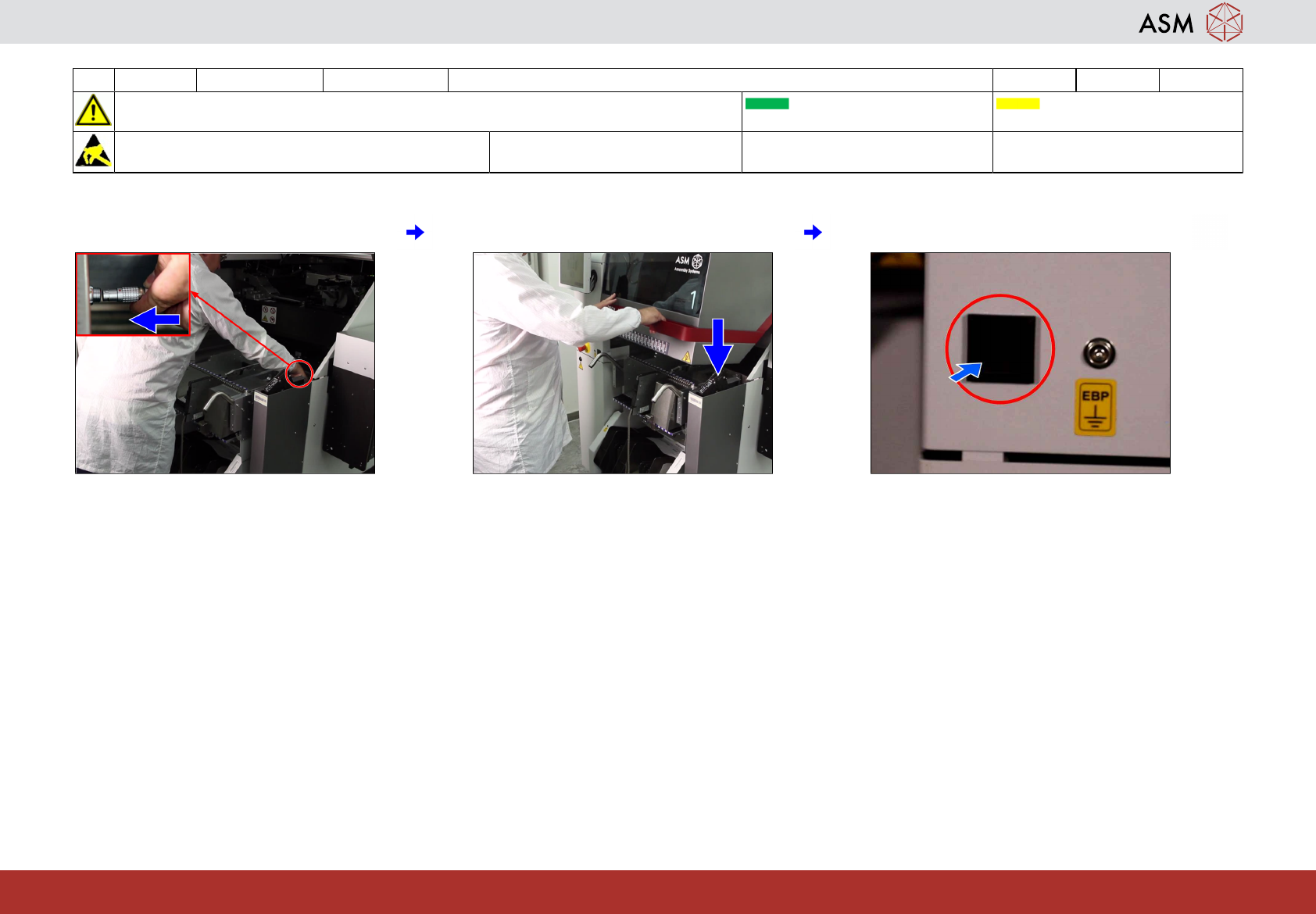

12 WF 2 TX-Series Maintenance Switch on machine and return the tables with JTF-ML 6 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com
7 Connect JTF-ML. 8 Close the cover 1. 9 Press insert COT button to dock table.

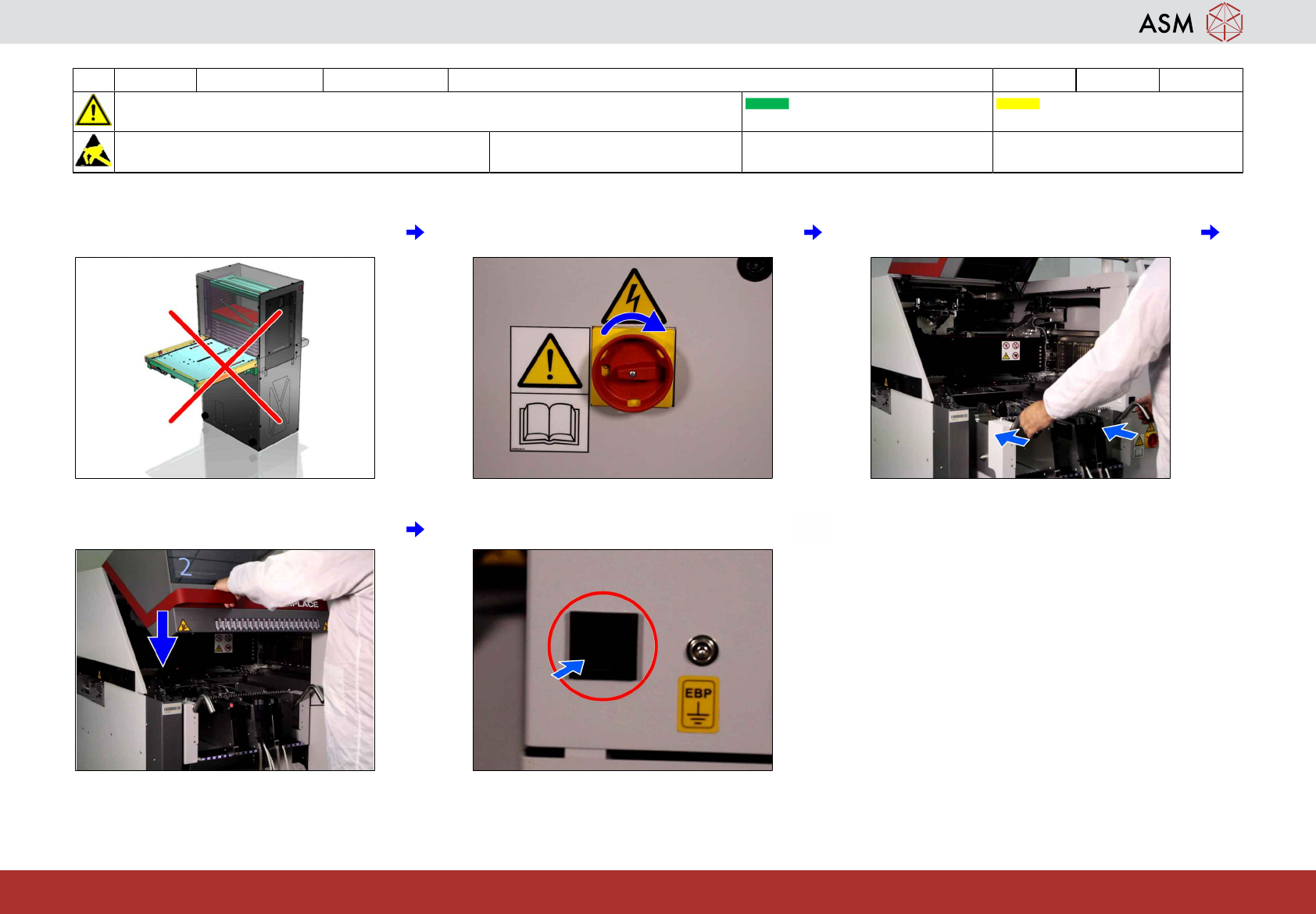

13 WF 2 TX-Series Maintenance Switch on machine and return the tables without JTF-ML 6 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com
1 Without JTF-ML: With JTF-ML, please go
to previous task.
2 Switch on machine. 3 Return all COT.
4 Close the covers. 5 Press insert COT button to dock table.
