8 Gantry 8.1.1 Y-Axis Construction 8. 1 Mechanical Layout Student Guide SIPLACE D-Series (FSE) 133 8 8 G a n t r y Gantry 8.1 8 . 1 M e c h a n ic a l L a y o u t Mechanical Layout 8.1.1 8 . 1 . 1 Y - A x is C o n s t r …
7 Axis Dynamics
7.6 Room for Your Sketches and Notes 7.5.2 Positioning Time for C&P12 Head
132 Student Guide SIPLACE D-Series (FSE)
8 Gantry
8.1.1 Y-Axis Construction 8.1 Mechanical Layout
Student Guide SIPLACE D-Series (FSE) 133
8
8 Gantry
Gantry
8.1
8.1 Mechanical Layout
Mechanical Layout
8.1.1
8.1.1 Y-Axis Construction
Y-Axis Construction

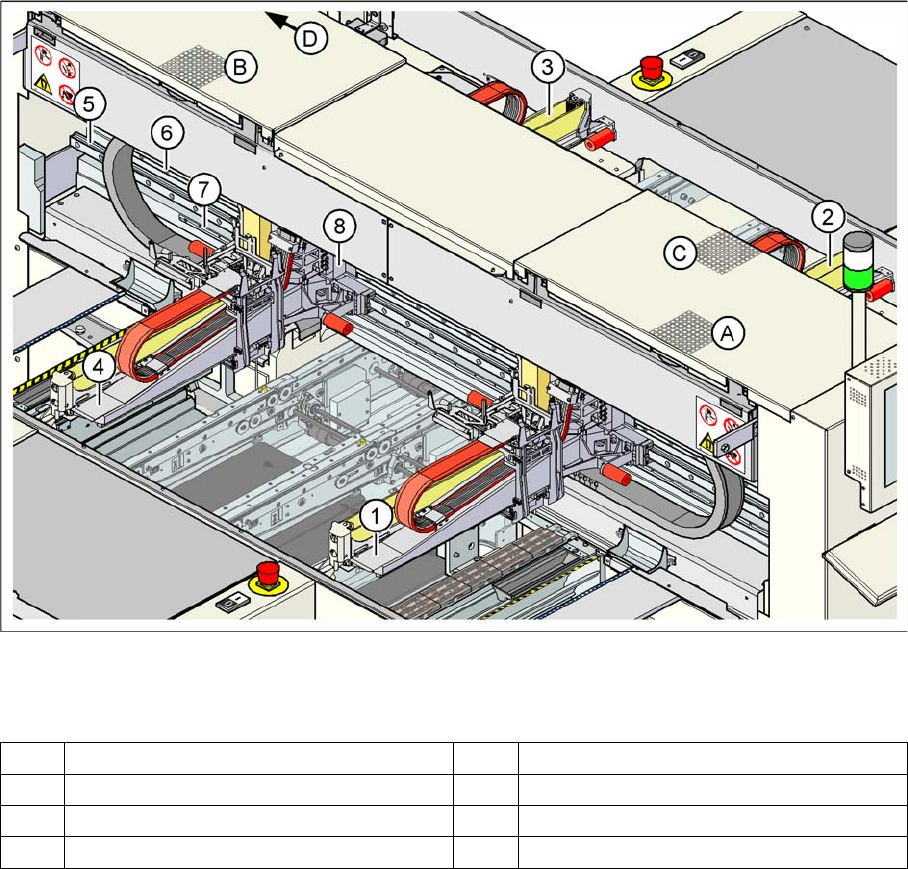

Y-Axis Design and Fan Positions (D4/D4i)
Legend
Additional X motor cooling is performed at the respective pickup position. The diagram above shows the
following pickup positions:
▪ Pickup position for gantry 1 (A)
▪ Pickup position for gantry 4 (B)
▪ Pickup position for gantry 2 (C)
▪ Pickup position for gantry 3 (D)
Do not cover the fan and service the filter fitted there.
1 Gantry 1 5 Guide system
2 Gantry 2 6 Linear motor secondary part
3 Gantry 3 7 Measuring system
4 Gantry 4 8 Linear motor primary part
8 Gantry
8.1 Mechanical Layout 8.1.2 X-Axis Mechanical Structure
134 Student Guide SIPLACE D-Series (FSE)
8.1.1.1
8.1.1.1 Y-Axis Technical Data
Y-Axis Technical Data
8.1.2
8.1.2 X-Axis Mechanical Structure
X-Axis Mechanical Structure
Mechanical axis structure – part 1 (D4/D4i shown as example)
Legend
Drive Direct, linear motor
Maximum speed 2.5 m/sec.
Travel path of gantries, calculated from the
center of the machine
Gantry 1 - 688.5 mm
Gantry 2 - 768.5 mm
Gantry 3 - 688.5 mm
Gantry 4 - 768.5 mm
Distance measuring system Incremental scale
Scale length D1/D1i/D2/D2i/D3: 1960 mm, D4/D4i: 1530 mm
Resolution 1 µm
1 Precision-cast gantry 7 X motor unit
2 Head mount with support for gantry head
distributor board
8 Toothed belt
3 Incremental encoder for Y-axis scale 9 Deflection unit
4 Primary part Y-linear motor 10 Y brake outside
5 Motor bracket X / heat sink (tab) Y motor 11 Y brake inside
6 Thrust bearing 12 Bumper X-axis outside
