9 C&P Placement Heads
9.1.1 Technical Data C&P12 9.1 Overview
Student Guide SIPLACE D-Series (FSE) 145
9
9 C&P Placement Heads
C&P Placement Heads
9.1
9.1 Overview
Overview
9.1.1
9.1.1 Technical Data C&P12
Technical Data C&P12
Technical data C&P12
NOTICE
Cause of Hazard
The SIPLACE D1/D1i/D2/D2i/D3 machines with the optional Head Modularity function have
C&P12 and/or C&P6 placement heads.
D1/D1i machines also have a P&P head, in addition to the C&P head.
The SIPLACE D4/D4i machines have a C&P12 place-
ment head on each gantry. All other D/Di machines per-
mit the use of both C&P6 and C&P12 heads, with the
Head Modularity function.

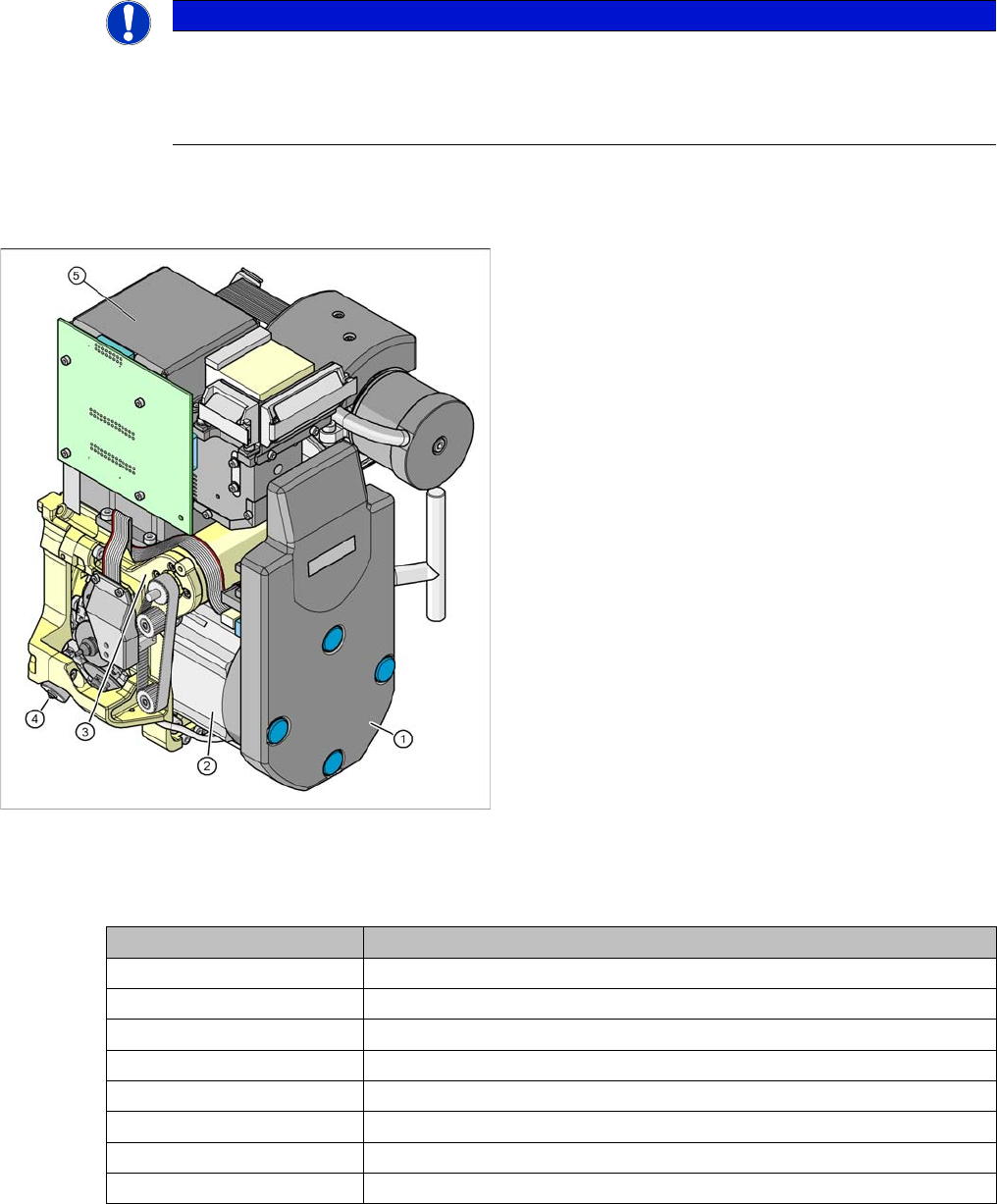

Legend
1. Intermediate distribution board (under the cover)
2. Star drive
3. Z drive
4. Valve positioning drive
5. Component camera C&P, type 28 (18x18) digital or
type 29 (27x27) digital, high resolution component
camera 18x18 or,optionally, SST29 for 0201
(0.5x0.25 mm) or SST38 from SW 604. or SST30
from SW 605.03SP2
Description 12 segment DLM 3
Component size 1 mm x 0.5 mm (0402)/0.5 mm x 0.25 mm (0201) to 18.7 mm x 18.7 mm
Component height 6.0 mm
Component weight 2.0 g
Placement accuracy +/- 80 µm at 4 (Sigma)
Angular accuracy +/- 0.7° at 4 (Sigma)
Placement force 2.4 - 5.0 N
Nozzle spectrum 901, 904, 905; 911-919; 920-925; 931-937
Nozzle changer Can be set up per magazine or garage
